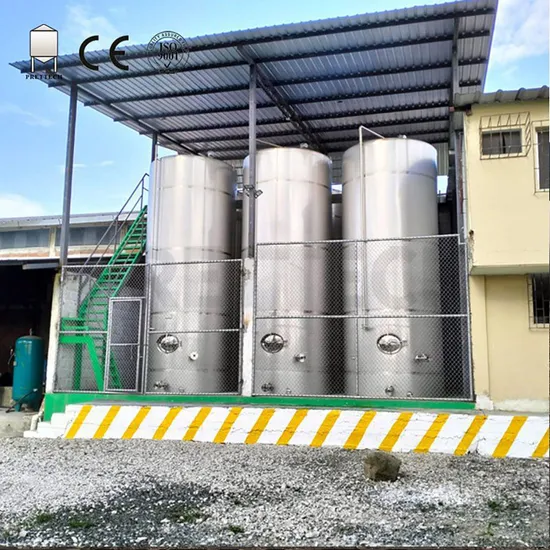

Stainless Steel Vertical Cooking Edible Oil Storage Tank with Heater

Product Description

Product Description
Edible oils are commonly used in industrial food manufacturing and home cooking worldwide and are the primary source of unsaturated fats and vitamin E in human diets. No matter you are oil mills/factories, food companies, or in any other industries using the oil, Prettech will provide you a matchable solution of oil storage.

Product Parameters

Volume (lt)	Inner dia.:mm	Total Height: mm	Cydlindrical Height: mm
1000	930	2200	1500
2000	1270	2600	1610
3000	1400	2900	2000
4000	1600	3100	2000
5000	1600	3700	2440
10000	1900	5050	3660
15000	2000	5950	4880
20000	2230	6100	5110
25000	2650	5600	4500
30000	2600	6760	5500
40000	2900	7400	6100
50000	3200	7600	6100
60000	3300	8350	6000
70000	3500	8200	7320
80000	3800	8300	7320
90000	3800	9200	7880
100000	3800	9900	8720

Product Advantages
Edible oil storage tanks are carefully designed and heavy-duty manufactured, where all welds are grounded and pickled, laser processing and automatic welding minimize welding defects and give tanks longer life.
Prettech can provide oil storage tanks and auxiliary, consist of a whole system edible oil storage plant, the oil can be transferred into the stainless steel tanks from the tanker and drained out from the oil storage tank, measured quantity automatically.
Related Auxiliary
Prettech can also supply related auxiliary such as: load cells, pumps, boiler,control boxes,stainless steel pipelines,flowmeter for oil tanks if those tanks are used in the processing lines.
Prettech is a professional manufacturer of sanitary stainless steel solutions for liquid material, with a history of 53 years. Our stainless steel tanks already used in 40 classifications,gather rich experiences and precipitate skills in varied industries,win 100,000 client's trust Guarantee Quality. We pass through ISO certificates ISO9001, ISO22000, ISO45001 and CE,PED, API650, AS1210,AS1692,have 300+ national patents and engaged in formulation of National Standard in designing, producing, inspection and transportation.

Applications
Oil tanks can not only be used for edible vegetable oil, such as palm oil, olive oil, soybean oil, sunflower oil, tea tree oil, etc., but also for animal oil, such as fish oil industrial oil, such as lubricating oil extracted from animal fat.
Fabrication
Prettech tanks are made of SS304 grade stainless steel. It offers the best properties for sanitary, food and beverage processing. For highly-corrosive environments, such as salty or acidic areas, tanks can be manufactured out of the higher-grade SS316L stainless steel. All stainless materials are purchased from first quality steel mills, their qualified MTC is supplied and Pretank would inspect again before put in our warehouse.
TIG welding are adopted to make stainless steel tanks. All welding and polishing workers are qualified and rookie trained well before they start to work in our company.
Morden processing machine such as laser cutting machine, laser automatic welding machine, laser tube cutting machine, precision CNC sawing machine, automatic pipe bending machine,robot welding machine, plasma cutting machine, precision leveling machine and other high-end equipment are used in our company to ensure the quality of products, as well as improving the working efficiency to achieve the short lead time.
Quality Control & Inspection
1.We are certified by ISO9001 system,all deparements from technology,purchasing, production to inspections are managed well in order.
2.Each tanks are inspected by hydrauilc pressure,X-ray, or penetraiton inspection before delivery.
3.If any damage or quality defects occurs,we would response in the first time within 7*24H.We will repair or recall according to specific cases,to protect customers' benefits in max. Why Choose US
FAQ
Q1.Can you produce tanks with S.S.316L?
Yes we can, the wetted-parts are produced by S.S.316L to guarantee the corrosion resistance, the non-wetted parts are produced by S.S.304 to reduce cost.
Q2. What's the lead time?
10-15 working days depend on the order quantity.
Q3 How do you ship the goods?
We usually ship by sea in containers.
Q4.Are you factory or trading company?
We are a manufacturer and export by ourselves.
Q5.Can your factory produce products according to our samples or drawing?
Yes, we can do OEM and customization.
Q6.What is your nearest port?
Shanghai port,China
Q7. Do you supply door to door shipping?
Yes we do, Pretank do ocean shipping, customs clearance, import procedures and deliver products to the appointed place.
Q8. How do you guarantee this machine normally operating?
Every machine is tested in our factory before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q9. Do you supply after-sale services?
Yes we do, if any defects occurred, Pretank would give instructions on how to handle, fast repair locally is available if needed.
Q10. What inspections will you do before delivery in your factory?
Perform a pressure test if specified by the manufacturer or regulations.
