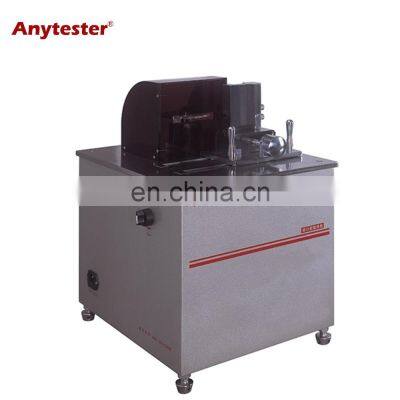

Motorized Charpy and Izod Notch Cutting Machine

Product Description

Product Description
Product Description
Product Application
AT403 Automatic Notch Making Machine is used for specimen preparation for impact testing of plastics and related materials.

SPECIFICATIONS FOR AUTOMATIC NOTCH MAKING MACHINE
Operation mode		Automatic
Maximum specimen thickness		25mm
Motor speed		1440r//min
Cutter types		A: 45°±1° R0.25B: 45°±1° R1.0
Notch types		Type A, type B
Power		AC220V, 50Hz
Dimensions		316*366*450mm

Main Features
★ Advanced model with higher cutting speed.
★ Special design cut knife with more tooth which can make the notcher more smooth.
★ Stainless steel desktop make the machine with good appearance and durable.
★ Desktop design make the machine small and save space
★ It can make 5 samples at one time and easy to operate
★ Two cutting tooth can be selectable
Detailed Images
Over view
> Make 5 samples each time
> Small size, easy to move
> high quality material and painting process, nice appearance
High quality stainless steel working table
> Stainless steel make the machine long lifetime
> Nice appearance
Notch depth can be adjustable
>equipped with micrometer to adjust the notch depth.
Smooth notch
>Special design cutter
>High speed rotation reach to 1440RPM, the other’s only 500RPM
Our Company
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Size	430(L) * 480 (W) * 670 (D)
Weight	50KG
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.
