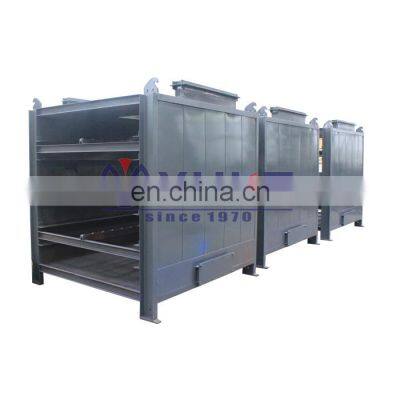

charcoal briquettes mesh belt dryer price

Product Description

Product Description
Mesh belt dryer ApplicationMesh belt dryer is a kind of batch, continuous production drying equipment, mainly for better ventilation sheet, strip, granular materials, such as: cassava slice, fruits, vegetables, herb, pepper, potato chips, grain straw etc. It has the features of high efficiency, high-yield, high evaporation intensity, standardization of production and the capacity could be increased according to the number of segments. The main types of heating include electric heating, steam heating and hot air heating.
The main technical parameter

Models	YKBD6	YKBD8	YKBD10	YKBD12	YKBD16	YKBD20	YKBD24	YKBD30
Belt Wldth （mm）	600	800	1000	1200	1600	2000	2400	3000
Length of drying section（m）	6-12	6-12	6-16	8-16	8-22	10-26	12-30	12-40
Length of feeding section（m）	1	1	1	1	1	1.5	1.5	2
Length of driving section（m）	1	1	1	1	1	1.5	1.5	2
Drying area（m²）	3.6-36	4.8-48	6-80	7.2-96	12.8-105.6	20-260	28.8-360	36-600
Layer No.	1-5
Space between layers （mm）	400-600
Loading capacity（kg/m²）	90-200
Operating temperature（℃）	Carbon steel≤400
		Stainless Stell≤600
Evaporation intensity（kg/㎡*h）	5-20
Heat source	Hot air，electricity and steam
Operating speed（m/min）	0.06-1
Power（kw）	1.1-2.2	1.1-2.2	1.1-2.2	1.1-3	1.5-3	1.5-4	3-7.5	5-11
Auxiliary equipment	Conveyor，air heater，dust collector，induced draft fan，etc.

Main Features Belt dryer is also used for drying different kinds of briquettes such as coal briquettes, mineral briquettes etc. It is also one of the most important equipment in the briquette production line. It has better drying effect; it could meet the demands of the customers who need to dry the briquettes to a lower moisture level and it could be designed according to the customer requirements.
1.The final moisture of raw materail can be 1%-5% what is adjustable.
2.The special internal structure of belt dryer ensure the wet materials that will not block and stick the dryer.
3. Mineral briquettes continuous conveyor mesh belt dryer can resist the high temperature so that it can dry the material quickly and have a large capacity.
4. Mineral briquettes continuous conveyor mesh belt dryer can use coal,oil,gas,biomass as fuel.
5.We can provide you the new way to use few fuel so that you will get low drying cost.
6.We can provide the dedusting equipment to ensure the belt dryer won't harm our environment.
7.Belt dryer is easy to operate and maintain.
Details Images
Machine Parts
Name: Mesh belt
Brand: YUKE
Original: SAHNGHAI, China(Mainland
Material be convey by the belt
Main Features
Name:  Frame
Brand: YUKE
Original: SHANGHAI, China(mainland)
Although it occupy of big footprint, it has high drying effciency..
Our Advantages
1.Our regular products can be customized in various colors, Customize products according to customer needs.2.We provide one-yearwarranty and lifetime service for customers.
3. Accept third-party inspection service to guarantee quality and quantity for you. 4. We provide life-long preservation of customer information and provide spare parts service for life.
5. We provide free technical solutions and technical support. The products are directly supplied by the factory, first-hand source.
6.Our company has been established for a long time and is strong. It is trustworthy to establish cooperative relations with many universities and colleges.
Company Profile
Shanghai YUKE Industrial co.,ltd. is a trustworthy and specialist designer and manufacturer of industrial dryer, briquetting machine ,etc.Following strictly the standards of ISO 9001,and have obtained the certifications of CE,GOST,and other international authority bodies.
Our factory has established over twenty years,with great experiences.And our products have been widely sold in over 20 provinces and regions in China and exported to Malaysia,Thailand,Philippines,India,Northern Ireland or United
Kingdom,Australia,Indonesia,Israel,Egypt,Oman,South Africa and son.Our product are popular in the fired and are well accepted by new and existing customers.
Customer Photos
Certifications
1. who are we?
We are based in Shanghai, China, start from 2013,sell to Central America(20.00%),Domestic Market(14.00%),Southeast
Asia(13.00%),Mid East(10.00%),South Asia(8.00%),Africa(8.00%),Eastern Asia(6.00%),South America(6.00%),Eastern
Europe(5.00%),Northern Europe(3.00%),North America(3.00%),Oceania(2.00%),Southern Europe(1.00%),Western Europe(1.00%). There are
total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
briquetting machine,crusher,rotary dryer,coal briquetting machine,mixer
4. why should you buy from us not from other suppliers?
We are manufacture for hydraulic machines, so we offer you the machine directly and the factory price. Well-equipped facilities
for making machines & strict inspection team.Design department and foreign trade department match very good to serve clients.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Recommend Products
Product packaging
Packaging Details: standard export container
Delivery Detail: Shipped in 30 days after payment
