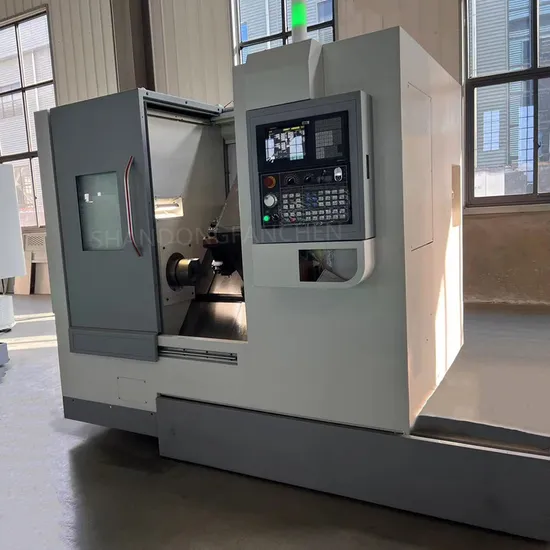

Fanchen CNC Inclined Lathe Tck46 Fully Enclosed Stainless Steel Casing with High Protection Accuracy
| US$13,000.00-21,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TCK46
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
400
Maximum Working Length
750/1000/1500
X-Axis Travel
200
Spindle Speed Progression
Stepless Speed Change
Z-Axis Travel
500
Through Hole Diameter
80
Standard Chuck
8
Tailstock Sleeve Stroke
100
Arbor Section
25×25
Taper of Tailstock Sleeve
Mohs 5
Transport Package
Wooden
Specification
2450/1600/1700
Trademark
FANCHEN
Origin
China
Production Capacity
10
Packaging & Delivery
Package Size
280.00cm * 160.00cm * 170.00cm
Package Gross Weight
2800.000kg
Product Description
| item | unit | TCK46 |
| Turning diameter of bed surface | mm | Φ400 |
| Maximum turning diameter on a skateboard | mm | Φ300 |
| Working length | mm | 400 |
| Main motor power | KW | 7.5 |
| Spindle speed | rpm | 2500 |
| Main shaft hole diameter | mm | Φ80 |
| X-axis travel | mm | 200 |
| X-axis motor torque | NM | 8 |
| Z-axis travel | mm | 500 |
| Z-axis motor torque | NM | 12 |
| X.Z axis connection mode | Direct connection | |
| Maximum spindle speed | rpm | 3000 |
| Spindle speed progression | Stepless speed change | |
| Spindle end form and code | A2-8 | |
| Inner diameter of spindle through hole | mm | Φ80 |
| Inner diameter of main shaft drawpipe | mm | Φ56 |
| Standard chuck specifications | 8″ | |
| Fast moving speed | m/min | 20 |
| Tool rest form | 8Horizontal 8 station hydraulic tool tower | |
| X/ZX/Z bidirectional positioning accuracy | mm | ±0.008 |
| X/ZX/Z one-way repeated positioning accuracy | mm | ±0.004 |
| Sleeve diameter | mm | 70 |
| Sleeve travel | mm | 100 |
| Tailstock travel | mm | 450 |
| Tailstock sleeve taper hole | 5# Morse 5# | |
| Bed form and slope | /35°Integral /35° |
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
