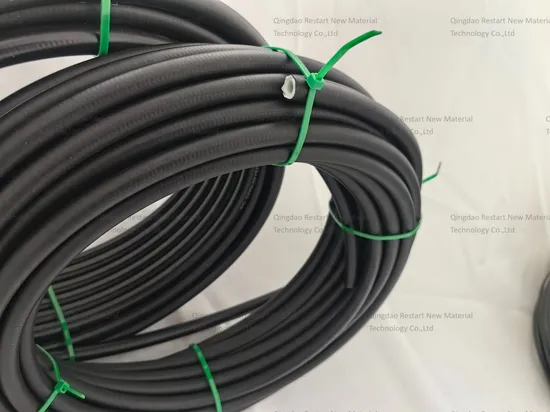

Grease Tubes Plastic Tube Flexible Lubrication Oil Hydraulic Hose for Lubrication System Buyer
Basic Info.
Model NO.
4*8.6
Material
TPU
Kind
Thermoplastics Pipes
Water Absorption
0.1%~0.3%
Contraction Percentage
1.5%~5.0%
Tensile Strength
30~40MPa
ID.
4mm
Od.
8.6mm
Wp.
280bar
Bp.
840bar
Temperature Range
-40ºC-+80ºC
Colour
Matte Black
Weight
5.5kgs/100m
Transport Package
Box
Specification
4*8.6mm
Trademark
rsd
Origin
Qingdao
HS Code
3917310000
Production Capacity
20000mts/Day
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Product drawings
Product parameters
| INCH | Mm | Mm | Model | WP.MAX | BP.MIN | TP. | Safe | Change Length | Rmin.MIN | Weight | ||||
| MPa | Bar | Psi | MPa | Bar | Psi | Bar | Factor | WP. | Mm | Gr/m | ||||
| 1/8 | 4,0 | 8,6 | RSD101A | 28 | 280 | 4060 | 84 | 840 | 12180 | 420 | 3:1 | ±1,5% | 20 | 53,0 |
| 3/16 | 5,0 | 10 | RSD101B | 28 | 280 | 4060 | 84 | 840 | 12180 | 420 | 3;1 | ±1,5% | 30 | 68 |
| 1/4 | 6,3 | 11,2 | RSD101C | 28 | 280 | 4060 | 84 | 840 | 12180 | 420 | 2.5:1 | ±1,5% | 40 | 78 |
| 1/8 | 4,0 | 9 | RSD102A | 40 | 400 | 5800 | 100 | 1000 | 14500 | 500 | 2.5:1 | ±1,5% | 20 | 62 |
| 1/8 | 4,2 | 8,8 | RSD102B | 36 | 360 | 5220 | 90 | 900 | 13050 | 2.5:1 | ±1,5% | 20 | 58 | |
HOSE OD.: 8,6+0.15/-0.1MM
HOSE Id: 4,0±0,1MM
Max Betriebsdruck Statisch: 280Bar
Test Pressure: 420Bar
Burst pressure at 20ºC: 840Bar
Safety Factor: 3:1
Weight: 5,5kg/100m
Temperature range: -40ºC-+80ºC
Product use
1. Wind power lubrication hose solution
2. Commercial automotive lubrication hose solutions
3. Mining machinery lubrication hose solutions
4. Construction machinery lubrication hose solutions
5. Port terminal lubrication hose solutions
Our services
1. Quick fitting installation can be straight core, bent core(90 deg,45 deg)or 7/16 JIC fittings.
2. Grease hose is very flexible, makes it easy to run lines where needed.
3. We can accept custom printing, OEM.
4. We can supply filled with grease.
Company Profile
Qingdao Restart New Material Technology Co., Ltd is a famous company producing Lubrication Hose and TPU Hose. We not only provide customers with high-reliability and cost-effective standard products, but also continuously develop new products according to the latest requirements of customers to meet the special application requirements of various industries.
Our strict process and high quality's raw material make it to pass ISO9001,ISO45001and ISO14001 system certification. The company maintains extensive cooperation with WANHUA , DuPont, Arkema and other international leading material suppliers, and has maintained the strongest competitiveness in new material development and new technology applications.
