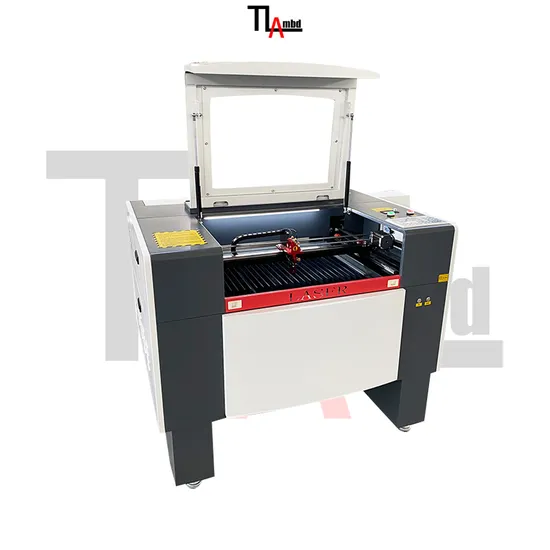

Agency Factory Price 4060 Laser Cutting Machines 4060 Engraver Wood Laser Engraver Cutter Christmas Cut Presents, Apples, Gift Box Wrapping

Product Description

Product Parameters

Specifications
Laser Power	60W/80W/100W(optional)
Laser Type	Hermetic co2 glass tube
Power Supply	AC220±10% 50HZ/AC 110±10% 60HZ
Working Area	400mm×600mm
Max Moving Speed	0---1000mm/s
Up&Down worktable	Electric up-down worktable
Worktable	Honeycomb Worktable/Aluminium Knife(optional)
Locating Precision	<0.01mm
Min Shaping Character	Character:3×3mm, letter:2×2mm
Operating Temperature	5ºC---35ºC
Resolution Ratio	≤4500dpi
Control Configuration	DSP
DataTransfer Interface	USB(offline)
Svstem Environment	WINDOWS 2000/WINDOWS XP/Vista/win7
Cooling Way	water cooling and protection system
Graphic Format Supported	The files which CoreDraw,photoshop,AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)
Compatible software	CorelDraw,AutoCAD
Cutting Thickness	0---20mm(Depends on different materials)
Color Separation	separation of cutting up to 256 colors
Sloping Engraving	yes,slope can be designed discretionarily
Cuts off the Water Supply the Protection	yes
Machine Dimension	138*85*95cm(60W 80W) 153*85*95cm(100W)
Package Dimension	147*95*85cm(60W 80W) 162*95*85cm(100W)
New Weight	200kg(60W 80W 100W)
Gross Weight	260kg (60W 80W 100W)

Product Description
There are solid-state laser marking machines and gas laser marking machines (CO2 laser cutting machines) in in the field of non-metal laser marking.
Non-metal laser cutting machines generally rely on laser power to drive the laser tube to emit light, and make light through the refraction of several mirrors. It is transmitted to the laser head, and the focusing mirror installed on the laser head condenses the light into one point, which can reach a high temperature, so that the material is instantly sublimated into gas, which is sucked away by the exhaust fan, so as to achieve the purpose of cutting ; The main gas filled in the laser tube used by the general laser cutting machine is CO2, so this laser tube becomes a CO2 laser tube, and the laser cutting machine using this laser tube is called CO2 laser cutting machine. Adopts steel structure machine body. The design is more scientific and machine body is stronger. The cutting precision is high.
Adopts mechanical follow-cut system. The cutting head can achieve the follow-cut according to the plate height and cutting position stays the same for long. This function leads the cutting gap smooth.
1.The mechanism is flexible, can be easily installed on the assembly line, and can be easily adjusted up and down, even the complex working conditions of the assembly line can cope with freely.
2.Professional industrial machine, to ensure faster marking speed and marking consistency, continuous and stable processing, can easily adapt to the requirements of industrial mass production.
3.High photoelectric conversion rate, low energy consumption, long service life of the machine, saving a lot of processing costs for customers.
Detailed Photos
Sample pictures
Accessory bag
Certifications
Packaging & Shipping
Our Advantages
Delivery time is guaranteed
15000m3 laser equipment processing workshop.
100-150 laser cutting machines are inspected and accepted every month.
Reasonable production management process to ensure the machine quality.
Every front-line production worker has undergone strict pre-job training.
One worker only completes one process of product production to ensure the production of high-quality products. Each process is inspected to ensure the accumulative accuracy of the product.
FAQ
Q: In case machine exists problem, how to do after sales service?
A: We provide laser source 3 years, machine two years warranty. During the two-year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.
Q: What's package?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
