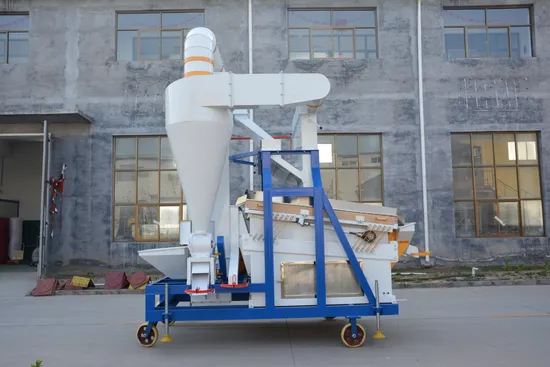

Compound Destoner for Removing Light Impurities and Stones

Product Description

Product Description
The princple of the machine:
The primary method of seed cleaning is the air-screen separator. It uses a combination of air and screens to separate seed based on shape, and density. In all cases, the cleaning principles are the same. The grains are fed into the hopper where they are evenly distributed by a feed roller and transferred through a controlled gate on the top sieve. In the process the grains are subjected to primary aspiration by the use of air trunk which drains off chaff, straw, dust or deceased grains.Then the grain go in destoner.
The destoner based on the proportion of grain crop and cobble density differences, by adjust the pressure and vibration frequency separate the stone and grain. The machine is equipped with a multi blade fan with high accuracy,The lighter grain crops will be suspended state, and the larger proportion of the stones will cling to the stainless steel mesh by adjusting the air pressure, and then by adjusting the frequency that Stoner table vibrates so as to achieve the purpose of separation. The machine equipped with frequency conversion control device can be subtle regulation, even if the proportion of the difference is very small, stones also will be separated. We are the cream separator Chinese supplier.
These machines are suitable for efficient cleaning of all types of grains and seed. Gentle feeder and the belt guard provide efficient cleaning of grain without causing any damage to the particles. High in functionality, The shoes of the machine can easily be replaced for different type of cleaning. Our range of 5XQC series feed cleaner is specially designed for heavy-duty operation at the most economical prices.

Detailed Photos

Our machines are well-made and made of thick materials. The machines are durable and efficient in processing grains and other grains. They are easy to operate and have bright colors. Product Parameters

Model	Capacity T/H	Power kw	Weight kg	Dimension L×W×H,mm	Area of sieve L×W,m2	Note
5XQC-10	10-15	18	1800	2550*2000*1600	1800*1684	Blow Type

Certifications
We are a manufacturer of machines. Our machines have our own brands and patents, and have obtained European CE certification, BV certification, and SGS certification. Packaging & Shipping
Our machines are small and medium-sized machines, so our transportation methods are divided into two types, one is full container transportation and the other is LCL transportation. In the case of full container transportation, we usually do not pack wooden boxes. We will wrap the machine spare parts with materials to prevent collisions, place them reasonably in the container, and use strapping or iron wire to fix the machine and spare parts in the container. inside to prevent collisions.
Another type of LCL transportation, when putting the machine into the wooden box, we will also carefully wrap the machine spare parts to prevent collision. Then secure the machine with reinforcement measures. Company Profile
Hebei HELIDA Grain Selecting Machinery Technology Co., Ltd. is a professional enterprise which is engaged in the professional research, development and production of seed processing machines, grain cleaning machines and agricultural byproduct processing machines. "Service, Innovation, Professional, Preciseness" is our operation principle. We have built a rigorous and professional team, which takes senior engineers as the core, an effective sale team and a skillful production team. All of the members in our teams have rich experience and are the backbone in this industry.
Products Workflow Chart
Firstly, prepare raw material as steel plates, channel steel, pipes, and other sourcing accessories. Then plates will be cut by laser cutter, plasma cutter or plate shearer according to drawing.
Later on plates will be bent to shape, axis parts will be processed through lathing, milling, drill. Machine parts will be welded or bolted together.
When all parts are finish and main frame is ready, they will be paint/ coated. Next step is machine assembly and testing.
Machine passed quality control will be packaged and ready for delivery FAQ
Q: Are you the factory?
A: Yes,We are a professional grain cleaning and seed processing machine manufacturer. We dedicated in this industry for 14 years.
We can offer you competitive machines.
Q: Do you accept small order and what's your MOQ?
A: Yes,We accept small order and trial order,MOQ is 1set
Q: What is your payment terms?
A: T/T, L/C, Western Union, Cash etc.
Q: Can you ship to my country?
A: Yes, no problem .
Please let me know your destination port and I will check sea freight for you.
Q: How do we visit your factory?
A: HELIDA Machinery is located in Shijiazhuang City, Hebei Province, China.20 minutes drive
from Shijiazhuang Zhengding International Airport,25 minutes drive from Shijiazhuang
Railway Station
Q: How long is your delivery time?
A: For single machine, we can use 6-10 days to manufacture machine.
For processing plant, we can use 25-30 days to finish, We also need one day to test.
We will book a fast ship for you.
Q: I want to more machines , how can I get latest catalogue for reference?
A: You can contact us by Trade Manager or Email ,
We will give you our latest catalogue according to your information.
Q: How can you guarantee the quality and the warranty?
A: Quality control by incoming material inspection, 100% in-production check and random
check after packaging.
Spare parts and technical solutions provided timely for machine failure.warranty is 1 year.
Q: Do you help to install the machines?
A: Generally,the instructions are attached with products,if you need install,our engineers will
help you to do it but the cost is born by buyer.
