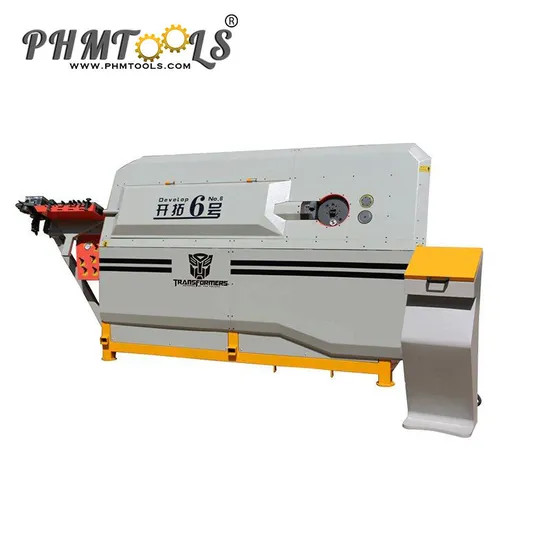

CNC Rebar Bending and Cutting Machine Rebar Bender Steel Bar Bending Machine

Product Description

Product Description
WENNENG MACHINERY
CNC AUTOMATIC STIRRUP BENDING MACHINE DEVELOP NO.6
1. CNC control, the machine can process more than 500 types stirrup.2. Bend in two directions and two end bend, meet you various need.3. Large Inclined plane design can process maximum 2000*2000mm big size.4. Widened machine body, more stable when working.5. INVT brand servo motor, guarantee high quality of machine.6. Touch screen operation, independent research and development system, easy to learn.Product Parameters

Automatic wire feeding system (PLC) / Mechanical cutting
Single wire bending (mm)	5-16
Double wire bending (mm)	5-12
Max bending angle (°)	±180
Max traction speed (m/min)	110
Max bending speed (°/s)	1200
Angle precision (°)	±1
Cut length precision (mm)	±1
Average power consumption (kw/h)	12
Total power (kw)	55.6 (include compressor)
Bending direction	Double direction
Additional functions	Two end bending
Productivity (double wire) (pcs/h)	2200-2400 (for example 200*200mm square )
Dimension (mm) (l*w*h)	4300*1400*2100
Weight (kg)	3000
For other processing needs and customization needs, please feel free to consult us.

Detailed Photos
CNC CONTROL SYSTEM Using intelligent fault recognition system, in put length and angle, can automatically generate corresponding graphics, a powerful database with more than 500 graphics storage capabilities. STRAIGHTENING SYSTEM Two sets of horizontal and vertical straightening wheels and one set of traction wheels are used to ensure that thick steel bars can also be used for good straightening effects.BENDING AND CUTTING Pneumatic control, can sit on the central axis and the bending axis separately, support the max positive and negative bending degree of 180 °, use the brake motor to cut off, drive the reducer high shear force, low failure rate.POWER WIRE
Wiring specifications are neat, the direction of the line is clear, and the signs are labeled at a glance to facilitate troubleshooting and use.BENDING SHAPE
CNC system, more than 500 kinds of graphics.
Basic template and supports DIY, with powerful shape storage system, easy and fast operation to meet your diverse processing needs.
SUITABLE FOR MANY PLACES
It can be used in construction sites, steel bar processing centers, bridge construction, building materials companies, engineering construction and other places according to your own needs.
We provide complete installation and use instructions.
MACHINE DISPLAY
We support fully customizing the appearance, color, logo, etc. of the machine according to your requirements. Looking forward to seeing your wonderful designs.Company Profile
Hebei Wenneng Machinery Technology Co., Ltd. is a comprehensive entity company engaged in the construction and sales of steel bar machinery and standard parts. The main products include fully automatic stirrup bending machines, thread rolling machines, steel bar reducing machines, straightening and cutting machines and other construction machinery. Our company integrates R&D, design, manufacturing, sales and service, and is a well-known enterprise with many national patents. In 2016, it passed the ISO9001 quality management system certification and CE certification. Our products have been sold all over the country and sold to overseas markets such as Southeast Asia, South Asia, Europe, North Africa, and the Middle East. And won the praise of customers.
OUR SERVICE
PRE-SALE SERVICE
1. Recognize customer's needs and the construction site condition;
2. Feasibility analysis;
3. Make integration plan and give good suggestion according to customer s specific situations;
4. Confirm the scheme and configuration of the equipment.
ON-SALE SERVICE
1. Finish the equipment production on time with quality guarantee;
2. Deliver the equipment to customers location;
3. Supply equipment operation training to customers, help customers to maintain equipment.To ensure the you can operate easily;
4. Customer signs equipment acceptance form.
AFTER-SALE SERVICE
1. We have professional after-sale service engineers and service person;
2. Provide technical support for life time;
3. Callback regularly , track the usage of equipment;
4. Complete the accessories stock , ensure the accessories'supplying timely.
