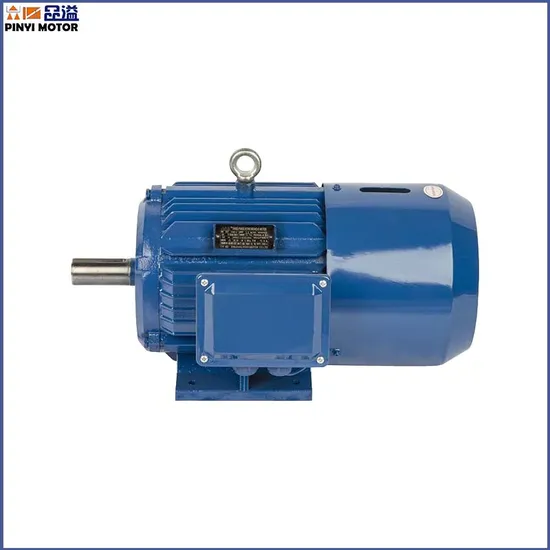

Yej2 Series Yej-132s-4-5.5kw B3 Electromagnetic Brake Three-Phase Asynchronous Motor Electric Motor

Product Description

YEJ2 series YEJ-132S-4-5.5KW electromagnetic brake three-phase asynchronous motor electric motor
Applications Widely used for driving machine tools, printing machinery, forging press, transport machinery, packing machinery, food machinery, construction machinery, and woodworking machinery where quick stop, accurate braking, reciprocated operation are demanded.

Rated Voltage:			220/440V, 220/380V, 380/660V, 415V or request
Frame sizes			80 to 225
Rated Frequency:			50HZ,60HZ
Rated Power:			0.18 to 200kW
Efficiency levels			IE1, IE2, IE3
Insulation Class:			F
Altitude:			≤1000m
Features:			Electromagnetic brake, fast braking, energy saving, simple structure, exact position.
Protection Class:			IP55
Cooling Method:			IC411 - TEFC
Braking mode:			Power failure brake
Duty:			S1
Mounting:			B3,B5,B35,V1

2 Pole Specifications
MODEL	KW	HP	RPM	HZ	Amps @ 380V	Frame	Insulation Class	Efficient %	Power factor Cos	Tst/TN	Ist/IN	Tmax/TN
YEJ2-801-2	0.75	1.00	2825	50	1.8	80M1	F	75	0.84	2.2	6.5	2.3
YEJ2-802-2	1.1	1.5	2825	50	2.5	80M2	F	77	0.86	2.2	7	2.3
YEJ2-90S-2	1.5	2.0	2840	50	3.4	90S	F	78.5	0.85	2.2	7	2.3
YEJ2-90L-2	2.2	3.0	2840	50	4.8	90L	F	81	0.86	2.2	7	2.3
YEJ2-100L-2	3.0	4.0	2880	50	6.4	100L	F	82.6	0.87	2.2	7	2.3
YEJ2-112M-2	4.0	5.5	2890	50	8.2	112M	F	84.2	0.88	2.2	7	2.3
YEJ2-132S1-2	5.5	7.5	2900	50	11.1	132S1	F	85.7	0.88	2	7	2.3
YEJ2-132S2-2	7.5	10	2900	50	15.0	132S2	F	87	0.88	2	7	2.3
YEJ2-160M1-2	11	15	2930	50	21.8	160M1	F	88.4	0.88	2	7	2.2
YEJ2-160M2-2	15	20	2930	50	29.4	160M2	F	89.4	0.88	2	7	2.2
YEJ2-160L-2	18.5	25	2930	50	35.5	160L	F	90	0.89	2	7	2.2
YEJ2-180M-2	22	30	2940	50	42.2	180M	F	90.5	0.89	2	7	2.2
YEJ2-200L1-2	30	40	2950	50	56.9	200L1	F	91.4	0.89	2	7	2.2
YEJ2-200L2-2	37	50	2950	50	69.8	200L2	F	92	0.89	2	7	2.2
YEJ2-225M-2	45	60	2970	50	84.0	225M	F	92.5	0.89	2	7	2.2
4 Pole Specifications
MODEL	KW	HP	RPM	HZ	Amps @ 380V	Frame	Insulation Class	Efficient %	Power factor Cos	Tst/TN	Ist/IN	Tmax/TN
YEJ2-801-4	0.55	0.75	1390	50	1.5	80M1	F	73	0.76	2.4	6	2.3
YEJ2-802-4	0.75	1	1390	50	2	80M2	F	74.5	0.76	2.3	6	2.3
YEJ2-90S-4	1.1	1.5	1400	50	2.7	90S	F	78	0.78	2.3	6.5	2.3
YEJ2-90L-4	1.5	2.0	1400	50	3.7	90L	F	79	0.79	2.3	6.5	2.3
YEJ2-100L1-4	2.2	3.0	1420	50	5	100L1	F	81	0.82	2.2	7	2.3
YEJ2-100L2-4	3.0	4	1420	50	6.8	100L2	F	82.5	0.81	2.2	7	2.3
YEJ2-112M-4	4	5.5	1440	50	8.8	112M	F	84.5	0.82	2.2	7	2.3
YEJ2-132S-4	5.5	7.5	1440	50	11.6	132S1	F	85.5	0.84	2.2	7	2.3
YEJ2-132M-4	7.5	10	1440	50	15.4	132M	F	87	0.85	2.2	7	2.3
YEJ2-160M-4	11	15	1460	50	22.6	160M	F	88	0.84	2.2	7	2.3
YEJ2-160L-4	15	20	1460	50	30	160L	F	88.5	0.85	2.2	7	2.2
YEJ2-180M-4	18.5	25	1470	50	35.9	180M	F	91	0.86	2.2	7	2.2
YEJ2-180L-4	22	30	1470	50	42.5	180L	F	91.5	0.86	2.2	7	2.2
YEJ2-200L-4	30	40	1470	50	56.8	200L	F	92.2	0.87	2.2	7	2.2
YEJ2-225S-4	37	50	1480	50	70.4	225S	F	91.8	0.87	1.9	7	2.2
YEJ2-225M-4	45	60	1480	50	84.2	225M	F	92.3	0.88	1.9	7	2.2
6 Pole Specifications
MODEL	KW	HP	RPM	HZ	Amps @ 380V	Frame	Insulation Class	Efficient %	Power factor Cos	Tst/TN	Ist/IN	Tmax/TN
YEJ2-90S-6	0.75	1.0	910	50	2.3	90S	F	72.5	0.7	2	5.5	2.2
YEJ2-90L-6	1.1	1.5	910	50	3.2	90L	F	73.5	0.72	2	5.5	2.2
YEJ2-100L-6	1.5	2.0	940	50	4	100L	F	77.5	0.74	2	6	2.2
YEJ2-112M-6	2.2	3	960	50	5.6	112M	F	80.5	0.74	2	6	2.2
YEJ2-132S-6	3	4	960	50	7.2	132S	F	83	0.76	2	6.5	2.2
YEJ2-132M1-6	4	5.5	960	50	9.4	132M1	F	84	0.77	2	6.5	2.2
YEJ2-132M2-6	5.5	7.5	960	50	12.6	132M2	F	85.3	0.78	2	6.5	2
YEJ2-160M-6	7.5	10	970	50	17	160M	F	86	0.78	2	6.5	2
YEJ2-160L-6	11	15	970	50	24.6	160L	F	87	0.78	2	6.5	2
YEJ2-180L-6	15	20	970	50	31.4	180M	F	89.5	0.81	6.5	6.5	2
YEJ2-200L1-6	18.5	25	980	50	37.7	200L1	F	89.8	0.83	6.5	6.5	2
YEJ2-200L2-6	22	30	980	50	44.6	200L2	F	90.2	0.83	6.5	6.5	2
YEJ2-225M-6	30	40	980	50	59.3	225M	F	90.2	0.85	6.5	6.5	2
8 Pole Specifications
MODEL	KW	HP	RPM	HZ	Amps @ 380V	Frame	Insulation Class	Efficient %	Power factor Cos	Tst/TN	Ist/IN	Tmax/TN
YEJ2-132S-8	2.2	5.8	710	50	5.8	132S	F	80.5	0.71	2	5.5	2
YEJ2-132M-8	3	7.7	710	50	7.7	132M	F	82	0.72	2	5.5	2
YEJ2-160M1-8	4	9.9	720	50	9.9	160M1	F	84	0.73	2	6	2
YEJ2-160M2-8	5.5	13.3	720	50	13.3	160M2	F	85	0.74	2	6	2
YEJ2-160L-8	7.5	17.7	720	50	17.7	160L	F	86	0.75	2	5.5	2
YEJ2-180L-8	11	24.8	730	50	24.8	180L	F	87.5	0.77	1.7	6	2
YEJ2-200L-8	15	34.1	730	50	34.1	200L	F	88	0.76	1.8	6	2
YEJ2-225S-8	18.5	41.3	735	50	41.3	225S	F	89.5	0.78	1.7	6	2
YEJ2-225M-8	22	47.6	735	50	47.6	225M	F	90	0.78	1.8	6	2

Zhejiang Pinyi Motor Co., Ltd is a medium-sized enterprise with a registered capital of 10 million, which integrates research, development, manufacturing, sales and after-sales service. ; In order to comprehensively consider the long-term strategic layout, and to ensure that the products continue to have comprehensive advantages in the market in 2013, the company integrated several upstream suppliers and companies, and gathered a number of scientific researchers in the important R&D links of motors to provide our company products in the terminal. The positioning of special machinery and equipment for market enterprises has laid a solid foundation; the company has integrated the original management experience into the quality management system of GB/T19001-2008 and IS09001:2008, and the products have passed CE certification to ensure the quality of Pinyi Motors Long-lasting and stable performance; the company has always adhered to the marketing concept of "manufacturing high-quality products with character, and occupying the market with high-quality products", focusing on building excellent brands, continuously improving enterprise quality, and pursuing progress and development In the course of years of development, Pinyi has built a customer-centric marketing network. Its products sell well in nearly 30 provinces and foreign regions across the country, and are well received by consumers, especially by old customers.
Pinyi's main products:CE certificate/New National Standard GB/T28575-2012 1 Secondary Energy Efficiency/P55:
* YE4 Super High Eficiency Secondary Energy Efficiency Motor;
* YE3 Super High Efficiency Energy Saving Series Three -phase Asynchronous Motor;
* YE3 Super High Efficiency Energy Saving Aluminum Shell Motor;
* YVF2 Frequency conversion series three -phase asynchronous motor;
* YD2 series two-speed multi-speed three phase asynchronous motor;
* YEJ2 series electromagnetic brake three- phase asynchronous motor;
* YBX3 series flameproof three- phase asynchronous motor;
* YVFEJ2 series variable frequency brake three-phase asynchronous motor,
* YDEJ series Multi-speed electromagnetic brake three. phase asynchronous motor, oil pump motor,
* special motor for stone machinery and equipment, custom-made motors with special specifications for power
requirements, and motors with different frequencies and different pressures.
* The protection grades include IP55, IP66, etc. and various special motors derived from them.
In line with the principle of "customer first, integrity first', the company has established long-term cooperative relations with
many enterprises. We take the concept of making products with heart, and aim to create high-quality products and provide satisfactory services. We are determined to create perfect, attention to detail, The goal is to provide efficient and
powerful green power products.
We warmly welcome friends from all walks of life to visit, inspect, negotiate business and create billiant future together.
1,Q: Can you make as per customer drawing?
A: Yes, we offer customized service for customers accordingly. We can use customer's nameplate for the electric molors.
2. Q: What is your terms of payment ?
A: 30% deposit before production,balance T/T before delivery.
3. Q: Are you a trading company or manufacturer?
A.We are a manufacurer with advanced equ pment and experienced workers.
4. Q: What's your production capacity?
A:4000-5000 PCS/MONTH.
5. Q: Free sample Is available or not?
A:Yes, we can supply free sample if customer agree to pay for the courier cost.
6. Q: Do you have any certiflcate?
A:Yes, we have CE certificate and SGS certificate report.
