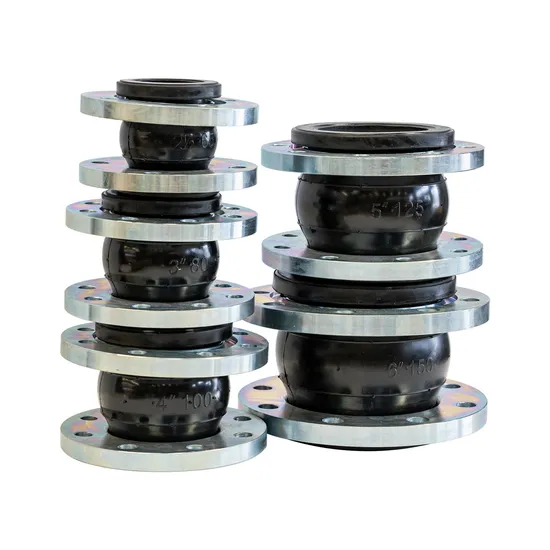

Oil Resistant ANSI 150lb Pn16 DIN Forged Carbon Steel Flange End EPDM NBR Single Sphere Ball Flexible Rubber Expansion Joint

Product Description

Oil Resistant ANSI 150LB Flange End EPDM NBR Single Sphere Ball Flexible Rubber Expansion JointProduct DescriptionThe Rubber Expansion Joint is a highly versatile and essential component for piping systems, meticulously engineered to cater to thermal movements and mechanical vibrations. Crafted from a combination of natural and synthetic elastomers, along with fabric and internal metallic reinforcements where necessary, these joints are the optimal solution for stress relief in pipelines.
Diverse material options are available to suit specific application requirements, ensuring maximum durability and performance. The Rubber Expansion Joint excels in absorbing significant movements within limited spaces, offering flexibility in all directions including axial, angular, lateral, and torsional adjustments to accommodate various external conditions. Furthermore, it effectively minimizes the impacts of wind forces, shock loading, and seismic movements. In conclusion, the Rubber Expansion Joint is a reliable and efficient choice for ensuring the integrity and longevity of piping systems. Trust in its ability to provide seamless stress relief and maintain operational efficiency in a wide range of industrial applications.

No.	Name	Material
1	Outer/inner rubber	NR, NBR, EPDM
2	Main Frame	Nylon cord fabric
3	Pressurized ring	Steel wire strand
4	Flange	Q235

Product Parameters Installation Instructions for Single Sphere Rubber Expansion Joint:
1. Strictly avoid over displacement during installation.
2. Bolts should be installed symmetrically, gradually tightened to prevent local leakage.
3. For working pressures above 1.6 MPa, utilize elastic pressure pads with bolts to prevent loosening during operation.
4. When vertically installed, ensure vertical support at both ends of the joint pipelines. Anti-pull-off devices can be used to prevent detachment under pressure.
5. Place the Rubber Expansion Joint away from heat sources, ozone zones, and direct exposure to strong radiation or incompatible media.
6. During transportation and handling, avoid sharp objects damaging the surface and sealing faces of the Rubber Expansion Joint.
Ensure the proper installation of the Rubber Expansion Joint in accordance with these guidelines to maximize its performance and longevity. Trust in the reliability and durability of our product for your piping system needs.
Recommend ProductsWe also have other types of rubber expansion joints, if you need them, please contact us!
ApplicationWidely used in chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire protection, electricity and other basic projects.
Packaging & Shipping
Company ProfileComflex main products: expansion joints, rubber joints, power transmission joints, expansion joints, waterproof casings, compensators, etc. All products of our company are designed and produced in strict accordance with national standards and specifications, and have the characteristics of easy installation, superior performance, and long service life.
Comflex's products are widely used in the construction of water supply and drainage projects in the fields of water supply, drainage, electric power, metallurgy, urban construction, petroleum, chemical industry and other large and medium-sized enterprises.
FAQQ: Do you have a product catalog?
A: Yes, we have. Please tell me your email or instant message, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer samples free but the customer covers shipping charges.
Q: Can the customer's requirement manufacture the products?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as required.Do you want to get a quick quotation? Please provide us with the following information:
1. Nominal Diameters: DN15-DN4000
2. Rubber joint material: EPDM, NBR, CR, NR, IIR, etc.
(Remarks: It doesn't matter if you don't know the material, Please tell us the medium and temperature during operation, and we will recommend suitable products for you)
3. Flange material: SS, CS, CS galvanized, ductile iron, PPH (PN10, PN16)
4.Flange standard:DIN PN10,PN16,PN25/ANSI 150LB,300LB/JIS 10K,etc.
The above are our regular materials and standard, Special designs and needs, please feel free to click here and contact us!
