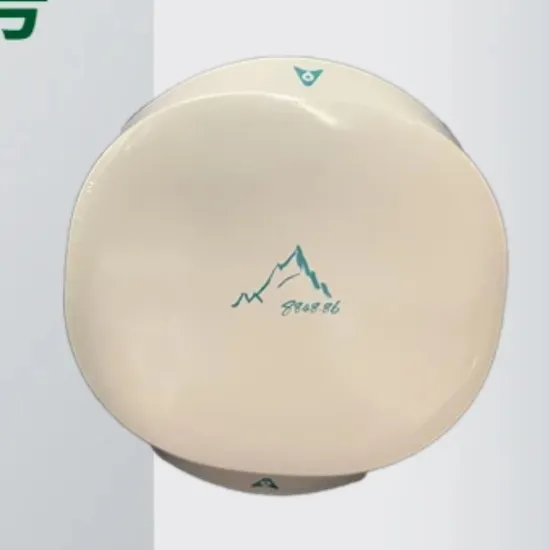

Chcnav K90 Visual Lofting Rtk Strong and Durable

Product Description

Product Description
CHCNAV K90 Visual lofting RTK Small and light Reliable accuracy Portable
Overview
Essential details
Place of Origin:
China
Brand Name:
CHCNAV
Model Number:
CHCNAV K90
Satellite system:
GPS + BDS + Glonass + Galileo + QZSS, support the Beidou third generation, support the five-star 21 frequency point
Battery:
Built-in 6600 mAh lithium battery ,mobile station typical battery life of more than 16h
Full test wizard K90 model
Economical and practical, strong and durable brand guarantee
Bag RTK lnertial Navigation Edition
1.Want to test where to test where
Point can measure, want to measure where to measure where, the tip of the target point, tilt can get accurate coordinates; focus on solving the scene is not good, can not measure, unsafe measuring point, solve the customer pain points, improve operation efficiency.
2.No calibration
No calibration, only shake in place to complete the initialization, not only fast, but also accurate.
3.Reliable accuracy
The output frequency of inertial navigation is up to 200 HZ, which avoids the measurement error caused by excessive user operation. Inertional guide can eliminate the flying points in the harsh environment to ensure the reliable measurement accuracy.
LandStar7 Professional measurement software
One-click setting: one-click setting, does not give users the chance to make mistakes
Rich functions: road-based survey, power measurement, surface lofting and other industries in-depth customized functions
Road lofting: the intersection method can edit the back-turning curve, oval curve and other complex roads
CAD lofting: support import DWG / DXF base map; support any point surface lotting
Remote assistance: data cloud interaction, one-click remote assistance, to quickly solve user problems
Caring service: antenna type error reminder, lofting arrow guide, parameter error reminder
CGO 2.0 comprehensive measurement data post-processing software
Support static, RTK, road, power, GIS and UAV data processing, RTK collects internal and external integration, field data, real-time mapping; measurement data and satellite image overlay display, visual display of measurement results; road data editing, data and graphics linkage, and real-time inspection of line results.
HCE320
Android Handbook
Professional, because we specialize in surveying and mapping field customized
Large screen, clear display under strong light.
The 5.5-inch screen, 22 percent larger than the previous 4.3 inches, uses a self-emitting AMOLED screen, still visible in the sun, evenly bright and super power saving.
Hundreds of projects are not stuck
8 core processor, Android 7.2 system, 80,000 points collected without card.
Long range
Built-in 8000 mAh large capacity battery, to ensure 3 hours of charging + 32 hours of uninterrupted working use. Low temperature battery, -20ºC use 18 hours, less than friends reduced 20%.
Waterproof and anti-fall
IP68 level high standard dust / waterproof / fall prevention requirements are a huge test for structural designers, for example, the LCD screen and touch screen to effectively solve the damage of high strength vibration to the LCD screen.
