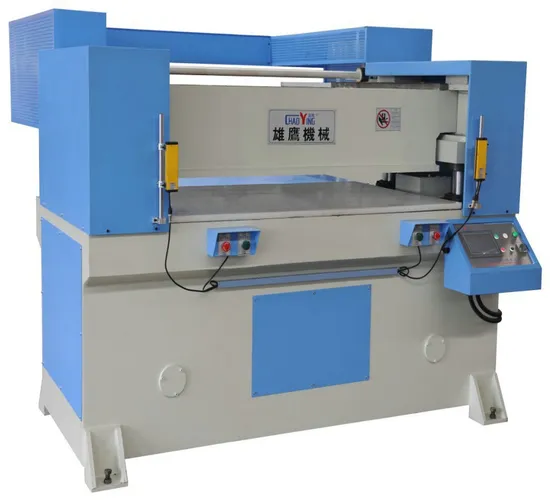

Automatic Parallel-Moving Hydraulic Shoe Making Machine

Product Description

Automatic Parallel-Moving Hydraulic Shoe making machine
Usage and characteristics:
1. The machine is applicable for cutting of leather, rubber, plastic, paperboard, cloth, foam, nylon, synthetic leather and PVC plate etc. Materials by die cutter in leather processing, luggage and baggage, automobile decoration, shoemaking and plastic rubber etc. Industries.
2. Adopt double oil cylinder, four-column, precise double-crank connecting rod mechanism, which can guarantee that the cutting depth at every cutting position is same.
3. The upper pressing board can move forward and backward so that the operation visual idle of operator is the best and the labor intensity is greatly reduced.
4. When cutting, after feeding material and arranging die cutter, the upper pressing board will move forward, descend, punch, ascend and automatically move backward. All the actions are completed without a letup, which has greatly increased work efficiency.
5. During the cutting operation, the photoelectric tube control is adopted with the safest operation.

Max cutting force	35T
Travel adjustment range	0-110mm
Range between the working tables	60-160mm
Translational speed	0.4m/s
Size of the upper pressing board	1600*600mm
Size of the lower worktable	1600*610mm
Motor power	3kw
Electric Supply VoltageTotal	3x440/400/380/220/200V, 50/60 Hz
weight	2200kgs
Dimension	2400*1400*1520mm

The die cutter : Applicable range :
