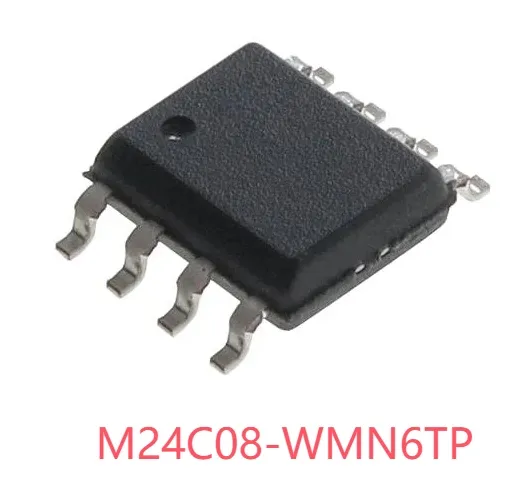

M24C08-WMN6TP M24C08 EEPROM Memory 8KBIT I2C IC M24C04-WMN6TP M24C32-RMN6TP

Product Description

description M24C08-WMN6TP : 1K X 8 I2C/2-WIRE SERIAL EEPROM, 8 Pin Plastic SOP
Mfr. Part#: M24C08-WMN6TP
Datasheet: (e-mail or chat us for PDF file)
ROHS Status:
Quality: 100% Original
Warranty: ONE YEAR

Memory Size:	8 kbit
Interface Type:	2-Wire, I2C
Maximum Clock Frequency:	400 kHz
Organization:	1 k x 8
Package / Case:	SOIC-8
Access Time:	900 ns
Supply Voltage - Min:	2.5 V
Supply Voltage - Max:	5.5 V
Mounting Style:	SMD/SMT
Data Retention:	40 Year
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Series:	M24C08-W
Packaging:	Reel
Active Read Current - Max:	2 mA
Height:	1.65 mm
Length:	5 mm
Operating Supply Current:	2 mA
Operating Supply Voltage:	3.3 V, 5 V
Product Type:	EEPROM
Programming Voltage:	2.5 V to 5.5 V
Factory Pack Quantity:	2500
Subcategory:	Memory & Data Storage
Supply Current - Max:	2 mA
Width:	4 mm
Unit Weight:	0.005044 oz

The M24C08 is an 8-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 1 K × 8 bits. The M24C08-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C08-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C08-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V. All these devices operate with a clock frequency of 400 kHz.
Applications
• Digital TV power supply
• High definition Blu-ray™ disc players
• Networking home terminal
• Digital set-top box (STB)
• Surveillance
