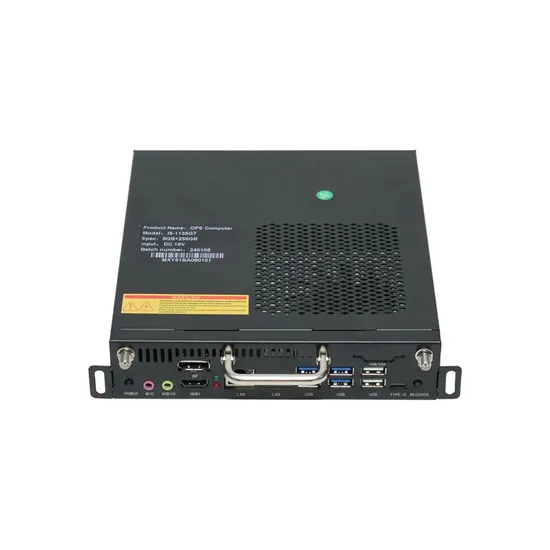

Factory Prices 4K Display 8th Gen OPS 80 Pin Mini PC Teaching in One Machine I3 I5 I7 I9 CPU OPS Computer

Product Description

Product Description

Product Name	OPS
Hardware	Intel i3/i5/i7/i9
Generation	5th gen/6th gen/7th gen/8th gen/9th gen/10th gen/11th gen/12th gen/13th gen
Operating System	Windows 10/10 Pro/11/Linux
Interface	Standard 80-pin
Main Applications	Compatible with All-in-One PC/Media Advertising Machine
Hard Drive	8+128GB/8+256GB/8+512GB/16+512GB etc.

OPS-SOC I5 1135G7
Product features

*	Powered by Intel ® Core™ Tiger Lake I3/I5/I711 generation mobile processors
*	Support 1*260Pin DDR4 SO-DIMM memory slot
*	1 x M.2 slot with MiniPCIE SSD support
*	1 x M.2 slot with M.2 WIFI support
*	Realtek 8111H (default Gigabit)
*	Support JAE 80PIN connection interface
*	TPM2.0 is supported
*	The hardware supports one-click restore of system functions

CPU	CPU	I5-1135G7 2.4GHz- 4.2GHz , 4 cores 8 threads
	Chipset	SOC
	BIOS	AMI BIOS
RAM	DDR4	Support 1*260Pin DDR4 SO-DIMM memory slot (located on the back of PCB) Support 1.2V DDR4 SO-DIMM memory Support MAXIMUM MEMORY 64GB, SUPPORT MEMORY FREQUENCY 2666MHZ
Storage	M.2	1 x M.2 slot with MiniPCIE SSD support NEME protocol and Msata protocol (located on the back of the PCB)
Display	Graphics card	Intel Iris Xe Graphics
	Output	HDMI	I/O port HDMI output support 3840*2160@60Hz
		DP	I/O port DP output support 3840*2160@ 60Hz
		OPS-HDMI	80PIN Socket HDMI output support 3840*2160@ 60Hz
Audio	Audio	ALC897 Support 1*LINE-OUT,1*MIC-IN,80PIN support LINE-OUT+MIC
Internet	LAN	Realtek RTL8111H 10M/100M/1000M Ethernet
	WIFI	1*M.2 2230 for Wifi+BT
SIO	FAN	Support automatic fan adjustment
Other	POWER	Power button
	RECOVER	One key restore button
USB	USB3.0	2*USB 3.0 4*USB 2.0 1 x TYPE-C port (default USB2.0 speed)
Adapter	Input	DC19V/4.74A
Size	A	180*120*30mm
OS	OS	Windows 10/11
Environment	Working temperature: 0-45°C Storage: -40~80°C
	Humidity 10%~95% non-condensing

OPS-SOC I5 12450H
Product features

*	Intel Core Alder Lake i5/i7/12th/13th Gen mobile processors
*	Support 1*260Pin DDR4 SO-DIMM memory slot
*	1 x M.2 slot with MiniPCIE SSD support
*	1 x M.2 slot with M.2 WIFI support
*	The BIOS supports AMI 256Mbit diskless boot
*	Support JAE 80PIN connection interface
*	TPM2.0 is supported
*	The hardware supports one-click restore of system functions

CPU	CPU	i5-12450H 2.0 GHz-4.4 GHz,8 cores and 12 threads
	BIOS	UEFI BIOS
RAM	DDR4	1x SO-DIMM DDR4;MAX 3200 MHz supports up to 64GB
Storage	M.2	1x M.2 2280 interface supports NVME and SATA dual protocol
Display	Graphics card	Intel Iris Xe Graphics
	Output	HDMI	I/O port HDMI output support 3840*2160@60Hz
		DP	I/O port DP output support 3840*2160@ 60Hz
		OPS-HDMI	80PIN Socket HDMI output support 3840*2160@ 60Hz
Audio	Audio	ALC897 Support 1*LINE-OUT,1*MIC-IN,80PIN support LINE-OUT+MIC
Internet	LAN	Realtek RTL8111H 10M/100M/1000M Ethernet
	WIFI	1*M.2 2230 for Wifi+BT
SIO	FAN	Support automatic fan adjustment
Other	POWER	Power button
	RECOVER	One key restore button
USB	USB3.0	2*USB 3.0 4*USB 2.0 1 x TYPE-C port (default USB2.0 speed)
Adapter	Input	DC19V/4.74A
Size	A	180*120*30mm
OS	OS	Windows 10/11, Linux
Environment	Working temperature: 0-45°C Storage: -40~80°C
	Humidity 10%~95% non-condensing

Applications Office (Conference Room)
Educational (Kindergarten/Primary School/Secondary School/High School/University)
Commercial (Exhibition Hall/Company Welcome Sign)

Packaging & Shipping
More Products
Company Profile Welcome to Yatal Technology Co., Ltd, a premier destination for cutting-edge interactive flat panel solutions and innovative collaboration tools. As a leading manufacturer and supplier, we specialize in crafting state-of-the-art Interactive Flat Panels, Visual Presenters, OPS systems, and Stands tailored to meet the diverse needs of education and collaboration environments.
Our mission is simple yet profound: to revolutionize the way you engage, educate, and collaborate. With a steadfast commitment to excellence, we ensure that every order is delivered promptly, within budget, and upheld to the highest standards of quality.
Certified with CE, FCC, ISO 9001, ISO 14001, and RoHs credentials, we guarantee products that not only meet but exceed global standards for safety, performance, and environmental responsibility.
Partner with Yatal Technology Co., Ltd, and unlock a world of possibilities in education and collaboration. Join us as we pave the way for innovation, efficiency, and seamless interaction.
Certifications
Exhibition

FAQ
Q:Can you provide OEM service for the all in one interactive flat panel?
A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?
A:We keep 4000-6000 units in Stock every single Month.
Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer, you are the mostly welcomed to visit our factory anytime.
Q: How is the quality of the product?
A: Our products have been strictly tested high quality by QC before shipping to customers.
Q: Does the product only use for school?
A: Our products are widely used in Hospital, School, office etc.
Q: How can I trust your product quality?
A: We have more than 10 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS etc.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
Q: Can someone using a tablet in the same room cast their screen onto the board remotely (without plugging the tablet into the board)?
A: We have wireless-screen
Q: Does it come with a camera?
A: Yes,can be optional
Q: Can it be wall mounted and does it have supporting wall brackets available?
A: Yes, Vibe boards can be wall mounted and it supports wall brackets.
Q: What is its Refresh rate? 60hz?144hz?
A: Optimum resolution is 3840x2160, and the refresh rate is 60 HZ.
Q: Which app store does this have access?
A: Google Play Store
Q: does it support wifi and bluetooth?
A: Yes
Q: Are you a factory or trading company ? What is the MOQ?
A: Yes, we are factory direct sales and have some items in stock , you can order 1pcs for test.
Q: What is the delivery time? Where do you ship ?
A: Generally speaking , the goods can be delivered within 5-7 days for small orders, and the production time about 15 days for more than 10pcs.
Q: Could you provide OEM&ODM service?
A: of course , including software, packaging, product logo, etc., consult customer service for more details.
Q: What is the warranty period of the product?
A: Normally it is 1 year, we have a professional after-sales service team,specific details can consult customer service.
Q: How do you guarantee the quality of your products?
A: Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products pass strict QC inspection in the production process. In particular, export products need to complete 72-hour aging test to ensure no problems before shipment.

Q: How do you arrange transportation?
A: If small sample orders suggest express delivery (7-10 days) or air freight (10-15 days), if bulk production advise by sea more favorable, please consult customer service for more details !
