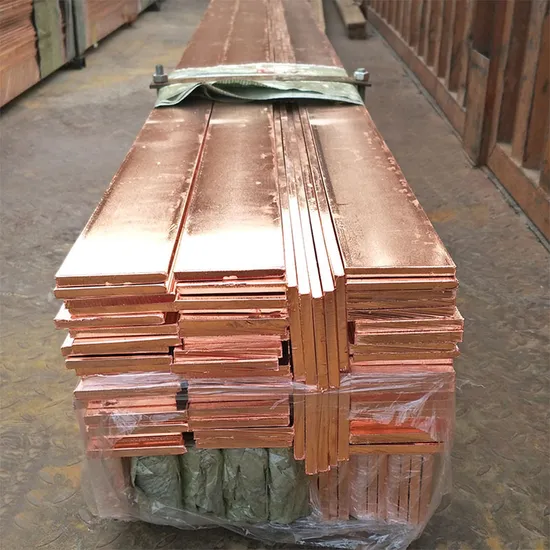

High Performance Electrode Earth Rod Flat Tape Copper Bond Steel Flat Strip for Grounding System

Product Description

Product Description Copper-bonded steel tape
The copper-bonded steel tape is cast through an electrolytic process, with 99.9% copper molecules evenly covering the steel core. It is a very uniform copper layer and a thickness of 0.254mm or more. Products have the conductive properties of copper and the tensile strength of steel. Since the copper layer and the steel material is a binding molecules, the copper layer is not easily peeled off, and will not crack when bent in operation.Copper bonded steel tape's core is high-quality flat steel, with a copper layer thickness of 0.25mm or more, strong plasticity, and supplies a length of less than 6m, the specific size specified by the user.Mainly used for lightning protection and grounding, anti-static grounding, protection, and other projects connected to ground level or grounding between the device and the ground network.

Copper clad steel earthing tape
Part Number W*H	sectional area (mm ² )	Copper thickness (mm )	Product Specification L	1m weight (kg)	3m weight (kg)	6m weight (kg)
CCSEP30-25×4	100	≥0.25	simple root 3m or 6m	0.796	2.387	4.774
CCSEP30-27×7	189	≥0.25	simple root 3m or 6m	1.493	4.478	8.956
CCSEP30-30×3	90	≥0.25	simple root 3m or 6m	0.72	2.16	4.319
CCSEP30-30×4	120	≥0.25	simple root 3m or 6m	0.954	2.863	5.727
CCSEP30-40×4	160	≥0.25	simple root 3m or 6m	1.272	3.816	7.632
CCSEP30-40×5	200	≥0.25	simple root 3m or 6m	1.584	4.753	9.507
CCSEP30-50×5	250	≥0.25	simple root 3m or 6m	1.98	5.94	11.880
CCSEP30-50×6	300	≥0.25	simple root 3m or 6m	2.371	7.112	14.223
CCSEP30-60×6	360	≥0.25	simple root 3m or 6m	2.844	8.532	17.064
CCSEP30-60×8	480	≥0.25	simple root 3m or 6m	3.781	11.343	22.687
CCSEP30-80×8	640	≥0.25	simple root 3m or 6m	5.04	15.12	30.241
CCSEP30-25×4	100	≥0.40	simple root 3m or 6m	0.805	2.414	4.829
CCSEP30-27×7	189	≥0.40	simple root 3m or 6m	1.503	4.51	9.020
CCSEP30-30×3	90	≥0.40	simple root 3m or 6m	0.73	2.191	4.382
CCSEP30-30×4	120	≥0.40	simple root 3m or 6m	0.965	2.896	5.791
CCSEP30-40×4	160	≥0.40	simple root 3m or 6m	1.286	3.858	7.716
CCSEP30-40×5	200	≥0.40	simple root 3m or 6m	1.599	4.797	9.593
CCSEP30-50×5	250	≥0.40	simple root 3m or 6m	1.998	5.993	11.986

Packaging & Shipping Package : standard seaworthy export packing :bundle + plastic bags+thin film+wooden pallet


Company Profile Shijiazhuang GANGXIN steel Processing CO., LTD Belongs to WANLIXIN group, located in the important city of northern China-Shijiazhuang city, with convenient traffic.
We specialize in the production, development and sales of linear transmission parts. Our products include bright steel bar, chrome plated plain shaft , hard chrome plated rod, piston rod , ball screw, linear bearing , high chrome steel grinding ball, steel grinding cylinder, forged steel grinding ball and so on,and so on, which are processed by straightening ,coarse and fine grinding, chrome-plating, wire pressing, hardening and multiple fine polishing process.High precision plain shaft is widely used to be piston rod of hydraulic pneumatic, engineering machinery, automobile making, guide pin of plastic and rubber machinery, roll shaft of packing and printing machinery, shaft center of textile and conveying machinery, linear shaft of linear motion .We also produce and sell kinds of products for grounding system and lightning protection system,like earth rod, flat tape, copper bond steel round wire, stranded wire and lightning rod as well as kinds of accessories, like clamps, driving head, drill, coupler and so on . We also produce disposable thermocouple tips, molten metal sampler,thermal analysis cup, continuous temperature measurement system, oxygen measurement system, sublance and hydrogen measurment system,and other relevant accessories .
Our products sell very well to Europe, America, Middle East, Korea, Taiwan and so on.
We have complete production facilities, best and advanced production technology, strict and normative inspection program, scientific management mode and outstanding staff.These advantages establish a firm foundation for better products and service.
The company's integrity , strength and product quality are recognized by the industry.Welcome friends from all walks of life to Shijiazhuang Gangxin steel processing Co., Ltd. for visit and business negotiation.

FAQ 1.GX is Factory or Trade enterprise?
GX is an enterprise incorporating Factory and Trade .
2.Where is your factory located? How can I visit there?
Headquarter:Hi-tech development zone,Shijiazhuang,Hebei Province
Factory:Xingtang County,Shijiazhuang,Hebei Province
You can take airplane to Shijiazhuang,then we can pick you up to factory by car about 1 hour.
3.Which Certificate of your product does your company have?
ISO9001 IATF 16949:2016
4.Before order, we need sample for test ,is it ok?
Yes, of course. We provide sample for test before bulk order.

5.How does your company to control your product quality?
Quality is the cornerstone of the survival and development of GX.
We control quality from the beginning to the end all the time.
