ABS Plastic Scrap Recycling Extruder for Pelletizing

Product Description

Product Description
Greenlandplast Plastic Recycling Granulating Machine Recycled Plastic Granules Making Machine Recycled Plastic Granulator This plastic pelletizing machine is designed by Zhangjiagang Greenlandplast Machinery Co., Ltd. It is specifically developed for the recycling and granulating/pelletizing of clean and dry waste plastic. With its versatile feeding and cutting methods, it can also handle film scraps materials.
The machine is suitable for recycling and pelletizing various types and properties of materials, including PE, PP, ABS, PS, PC, PA, PVC, and more. It effectively transforms these materials into high-quality recycled plastic granules.
Key Features:
Equipped with different feeding methods and cutting methods
Optional forced feeding system for pelletizing film scraps materials
Screw feeder or belt conveyor for efficient material feeding
Specially designed screw for pelletizing recycled materials
Natural exhaust holes and vacuum system for effective water drainage
Durable extruder with cast aluminum or ceramic heater
Automatic hydraulic screen changing system for cleaner and higher quality particles
Available Materials: PE, PP, PS, ABS, PC, etc. (crushed granules and plastic flakes)
Product Parameters
Technical date

Model	Screw Diameter(mm)	L/D	Motor Power	Capacity
GLP100	100	25-33:1	55kw	150-200kgh
GLP120	120	25-33:1	90/kw	250-350kgh
GLP140	140	25-33:1	132kw	400-500kgh
GLP160	160	25-33:1	160kw	550-650kgh
GLP180	180	25-33:1	185kw	650-800kgh
GLP200	200	25-33:1	250kw	800-1000kgh

Detailed Photos
Loading System The material is fed to the extrusion system of the Zhangjiagang Greenlandplast Machinery Co., Ltd through either a screw feeder or a belt conveyor. As an optional feature, the belt conveyor can be equipped with a metal detector, ensuring the highest level of quality control.
Quantitative Feeding System
The feeding speed is controlled by an inverter, allowing it to adapt to different material properties and ensuring the extruder operates smoothly.
Equipped with a sensor device, the feeding system intelligently and automatically feeds materials. It synchronizes with the loading system, stopping feeding when the material is full and loading when it is not.
For more information, please visit Zhangjiagang Greenlandplast Machinery Co., Ltd.
Extrusion System - Product Description
Extrusion System The extrusion system by Zhangjiagang Greenlandplast Machinery Co., Ltd is specifically designed for plastic recycling pelletizing. It features a screw barrel made of 38CrMoAl material with nitrided treatment, ensuring durability and longevity. The surface of the screw is sprayed with an alloy wear-resistant layer, enhancing its resistance to wear and tear.
The barrel of the extruder is equipped with an exhaust section, and the extruder itself is equipped with a vacuum exhaust. This system offers high output, excellent dehydration and exhaust effect, and exceptional wear resistance.
The heating system of the extrusion system utilizes either a cast aluminum heater or a ceramic heater. Each heating zone has an independent intelligent temperature control system and is equipped with forced air cooling. This allows for convenient and accurate temperature control, resulting in superior pellet quality.

Screen Change Filter System
The screen change filter system offered by Zhangjiagang Greenlandplast Machinery Co., Ltd is designed to enhance the quality of pellets by effectively filtering small impurities in the material. This system utilizes a plate-type hydraulic automatic screen changer, which is equipped with an automatic pressure alarm device to ensure optimal performance.
In addition to the standard plate-type hydraulic screen changer, we also offer the option to equip a column hydraulic screen changer or a non-net screen changer based on customer requirements. These alternatives further improve the filtering effect and facilitate operation, providing a versatile solution for various filtering needs.

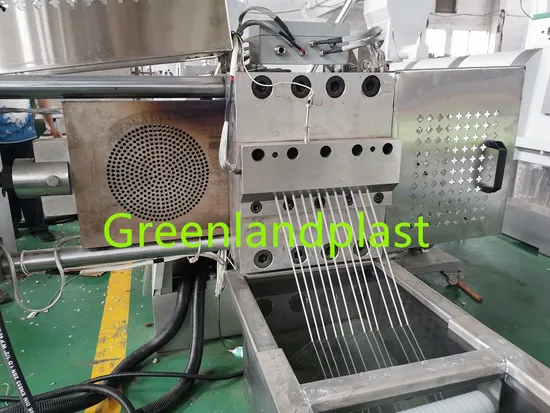

Pelletizer Cutting System The pelletizer cutting system offered by Zhangjiagang Greenlandplast Machinery Co., Ltd is perfect for waste plastic recycling pelletizing and granulating. Our system utilizes a water ring pelletizing system, which ensures a smooth and beautiful pelletizing effect. It is easy to operate and saves labor, making it an ideal choice for efficient plastic recycling.
For materials with special properties or based on customer preferences, we also offer additional options such as water-stretching and pelletizing, automatic strand-stretching and pelletizing, or underwater pelletizing systems. This allows for greater flexibility and customization to meet specific requirements.
Vibration & Blower Drying System The Vibration & Blower Drying System by Zhangjiagang Greenlandplast Machinery Co., Ltd is a revolutionary method for dewatering and drying particles. With its innovative design, this system offers exceptional performance while saving power consumption and reducing noise levels.
Featuring a dewatering fan, this system effectively removes excess moisture from particles, resulting in excellent dewatering and drying effects. The vibration technology ensures thorough and efficient drying, leaving particles with optimal moisture content.
Designed with the needs of English-speaking natives in mind, this Vibration & Blower Drying System is perfect for a wide range of applications. Whether you need to dry plastic pellets, food ingredients, or any other type of particles, this system guarantees outstanding results.
Experience the benefits of this cutting-edge technology, brought to you by Zhangjiagang Greenlandplast Machinery Co., Ltd. Invest in the Vibration & Blower Drying System today and enjoy efficient, low-noise, and energy-saving particle dewatering and drying.
Cutting & Vibrator & Hopper Storage The Cutting & Vibrator & Hopper Storage system by Zhangjiagang Greenlandplast Machinery Co., Ltd is designed to efficiently transfer pellets to the storage tank. Made of high-quality stainless steel, both the air conveyor pipe and the tank ensure durability and long-lasting performance.
The air conveyor pipe is equipped with sound-absorbing cotton on its surface, effectively reducing noise levels during operation. This feature makes it ideal for use in noise-sensitive environments.
With the Cutting & Vibrator & Hopper Storage system, you can expect seamless pellet transfer and reliable storage, ensuring a smooth and efficient production process.
