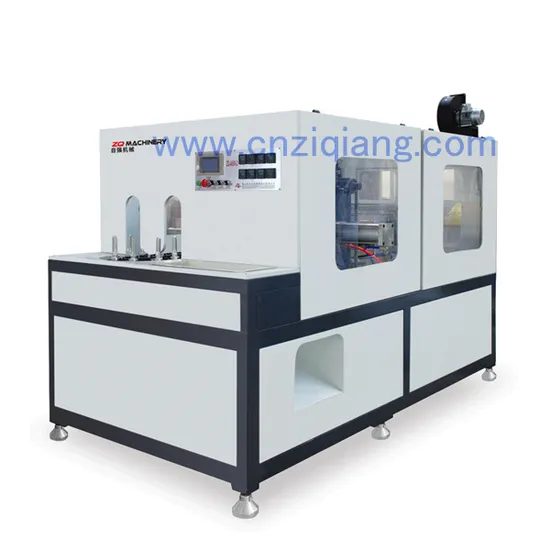

Pet. Jar Wide Mouth Container Blow Moulding Machine

Product Description

PET. Jar Wide Mouth container blow moulding machine with preform manual loading
Equipment Speed: 1700-2100 bottles/hour
ZQ-A1500-3, newly developed by our company, is a two-step automatic blow-molding machine, which requires labor to put performs into the preheater only. ZQ-A series is of one cavity and the maximum cavity of the bottles is 0.6L, 2.0L, 5L. It can blow various bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
Compared with other full-automatic series, ZQ-A series has no automatic conveyer, so it can't transfer performs automatically, but requires labors to put performs into preheater. The distinctive feature of the ZQ-A is as follows: It has saved the cost to the maximum extent; It has lower rejection rate, higher production, and more stable performance than the semi-automatic one, and moreover, it is easy to run. Therefore, it will take the place of the semi-automatic blow-molding machine.
PET. Jar Wide Mouth container blow moulding machine,equipment information.

TYPE	ITEM	ZQ-A1500	ZQ-A1500-2	ZQ-A1500-3	ZQ-A5000	ZQ-A5000-2
CONTAINER	Number of cavity	1	2	3	1	2
	Output	1000-1300 pcs/hr	1700-2100 pcs/hr	2800-3100 pcs/hr	500-700 pcs/hr	1200-1300 pcs/hr
	Max.container volume	2.0L	2.0L	2.0L	5L	5L
	Max.neck diameter	38mm	38mm	38mm	100mm	100mm
	Max.container diameter	105mm	105mm	105mm	180mm	180mm
	Max.container height	350mm	350mm	350mm	350mm	350mm
ELECTRICAL SYSTEM	Number of lamp	28 pcs	28pcs	40pcs	28pcs	48pcs
	Max.heating power	22kw	42kw	60kw	42kw	60kw
	Installation power	25kw	44kw	65kw	44kw	63kw
	Actual power consumption	16kw	28kw	40kw	30kw	40kw
AIR SYSTEM	Operatating pressure	7kg/cm²	7kg/cm²	7kg/cm²	7kg/cm²	7kg/cm²
	Low pressure consuming	900 Ltr/min	1200 Ltr/min	1600 Ltr/min	1200 Ltr/min	1600 Ltr/min
	Blowing pressure	≤30kg/cm²	≤30kg/cm²	≤30kg/cm²	≤30kg/cm²	≤30kg/cm²
	High pressure consuming	1200-1600Ltr/min	2000-2500Ltr/min	2800-3000Ltr/min	2000-2500Ltr/min	3000-3500Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10°C	10°C	10°C	10°C	10°C
	Consuming	3600kcal/hr	5600kcal/hr	7600kcal/hr	5600kcal/hr	5600kcal/hr
	Flow rater	20Ltr/min	30Ltr/min	40Ltr/min	30Ltr/min	30Ltr/min
MACHINE	Machine dimension	2.9×1.7×1.85(m)	3.1×1.45×1.85(m)	4.20×1.60×1.9(m)	3.3×1.75×1.9(m)	4.35×2.0×1.9(m)
	Machine weight	1.6T	1.8T	2.3T	2.0T	3.0T

Note: The specifications are subject to change without notice for the further improvement.
!Note: Custom production accepted. Any client idea tried.
