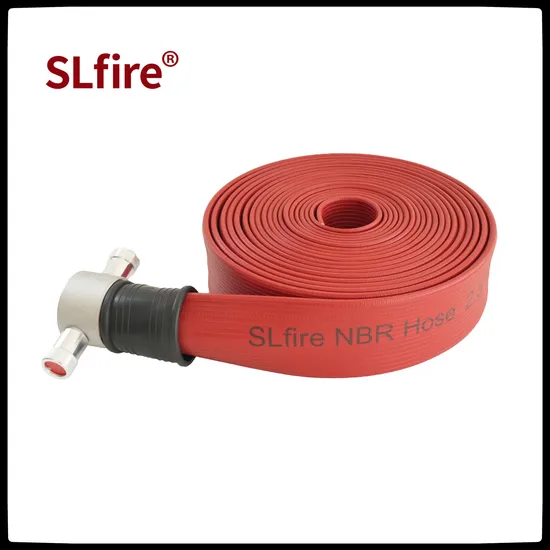

Nitrile Rubber Covered Durable Attack Fire Hose with BS Coupling
Basic Info.
Model NO.
TZSL- NBR
Working Pressure
8bar - 25bar
Lining
With Lining
Weaving Type
Twill Weaving
Hose Coupling Structure
Plug-in
Color
Red,Yellow or Customized
Length
10-60meter
Inner Diameter
1.5′′ - 5′′
Reinforcement
Polyester Filament
Bursting Pressure
24bar - 75bar
Application
Fire-Fighting
Outer Cover and Inner Lining
PVC Mixed Rubber
MOQ
1000m
Print
with Customized Content
Transport Package
Carton/Pallet
Trademark
Xiangyu
Origin
Jiangsu, China
HS Code
3917390000
Production Capacity
80000 Meter/Day
Packaging & Delivery
Package Size
43.00cm * 43.00cm * 13.00cm
Package Gross Weight
1.000kg
Product Description
Product DescriptionProduct details
The EPDM lined lay-flat hose is single jacket made of high tenacity polyester filament / spun polyester twill or plain weave and liner is EPDM.
Features:
Acid and alkali resistance,Chemical resistance,oil resistance,abrasion resistance,low maintenance.
More Related:
Standard Length: 15M(50feet), 20M(66feet), 25M (82feet), 30M(100feet).
Temperature Range: -40°F to 158°F(-40°C to 70°C), other temperature on request.
Color:White, Red, Yellow or other colors on your request.
Product Parameters
| Inner diameter | Working pressure | Bursting pressure | |
| inch | mm | Psi/Bar | Psi/Bar |
| 1" | 25 | 190/13, 232/16, 300/21,400/28,etc | 570/39, 700/48, 900/63,1200/84,etc |
| 1 1/2" | 38 | 190/13, 232/16, 300/21,400/28,etc | 570/39, 700/48, 900/63,1200/84,etc |
| 1 3/4" | 45 | 190/13, 232/16, 300/21,400/28,etc | 570/39, 700/48, 900/63,1200/84,etc |
| 2" | 50 | 190/13, 232/16, 300/21,400/28,etc | 570/39, 700/48, 900/63,1200/84,etc |
| 2 1/2" | 65 | 190/13, 232/16, 300/21,400/28,etc | 570/39, 700/48, 900/63,1200/84,etc |
| 3" | 80 | 190/13, 232/16, 300/21,400/28,etc | 570/39, 700/48, 900/63,1200/84,etc |
| 4" | 102 | 190/13, 232/16, 300/21,400/28,etc | 570/39, 700/48, 900/63,1200/84,etc |
Main Products
Company Profile
Certifications
FAQ
- Jacket: 100% high tenacity polyester woven reinforcement.
- Lining: Rubber(we can also provide the PVC and TPU and EPDM lining.)
