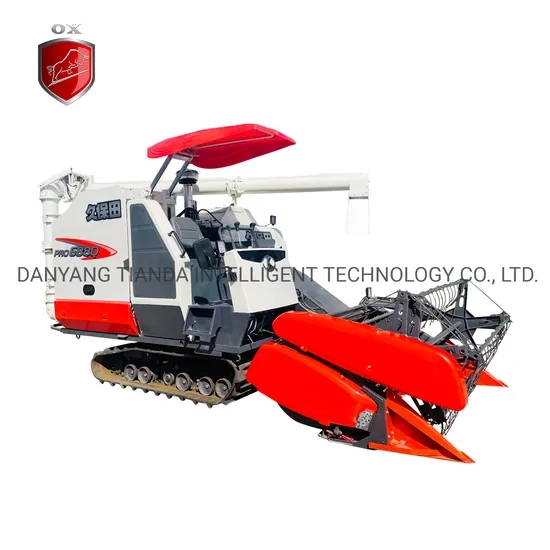

Chinese Agriculture Rice Combine Harvester 688q Mini Rice Combine Harvester Paddy Beans Harvester Kubota Used 90% New Machinery
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Power Source
Diesel
Harvest method
Full Feeding
Drive Type
Gear Drive
Transmission
Hard Shaft
Certification
ISO9001:2008
Color
Orange
Condition
Used
Application Field
Agriculture
Transport Package
Naked Packing
HS Code
8433510090
Production Capacity
2000
Product Description
Product DescriptionChinese Agriculture Rice Combine Harvester 688q
| SPECIFICATION OF KUBOTA PRO688Q AND PRO688Q-G | ||||
| MODEL | PRO688Q | PRO688Q-G | ||
| Size | Overall length(mm) | 4860 | ||
| Overall width(mm) | 2295 | |||
| Overall height(mm) | 2765 | |||
| Weight (kg) | 2815 | |||
| Engine | Model | V2403-M-DI-T-ES04 | ||
| Type | vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesel engine | |||
| Total displacement (L[cc]) | 2.434[2434] | |||
| Rated output/rpm (ps[kw]/rpm) | 68[50]/2700 | |||
| Fuel | 0 # diesel oil | |||
| Fuel tank capacity(L) | 60 | |||
| Starting method | starter motor | |||
| Battery(V.Ah) | 12·52 | |||
| Travel unit | Track | Ground length × width (mm) | 400×1680 | 450×1680 |
| Centre distance(mm) | 1150 | |||
| Average ground pressure(kpa[kgf]/cm2) | 20.3 (0.21) | 18.1 (0.19) | ||
| Minimum ground clearance(mm) | 275 | |||
| Transmission mode | hytrostatic CVT [HST] | |||
| Speed | no class vice-speed 3 files | |||
| Running speed (m/s) | low speed:0~0.97; cruising speed:0~1.37; hign speed:0~1.85 | |||
| Harvest unit | Fu Wo method | Wo cal control | ||
| Wo cal control | Rotating diameter×width(mm) | 900×1828 | ||
| Transmission mode | Isokinetic | |||
| Way up and down adjustment | Hytrostatic | |||
| Harvest width (front-end sub-interval of the grass) (mm) | 2000 | |||
| Cutter width(mm) | 1905 | |||
| Harvest height (down) range (mm) | 40 more cutter tip | |||
| Lodging adapation (degree) | Shun-cut:< 85°, Against the cut:< 70° | |||
| Threshing unit | Threshing system | axial threshing gear | ||
| Threshing cylinder | Threshing teeth type | bow teeth | ||
| Diameter × width(mm) | Φ620 × 1790 | |||
| Rotational speed(rpm) | 560 | |||
| Second transmission mode | srew auger | |||
| Screening method | shaker winnowing (3 air separation) | |||
| Concave network area (4) | 1.621 | |||
| Uereal discharge unit | Vally box set | Capacity (L) | 420 | 1000 |
| Tanigushi row number (a) | 2 | 1 | ||
| Discharge mode | manual | hydraulic pressure | ||
| Warning lights and equipments | Vertical transmission filler and then plug screw rob cereal | |||
| Sets valley box filled with | ||||
| Water temprature | ||||
| Battery charging | ||||
| Engine oil pressure | ||||
| Suitable crops | rice / wheat/rape | |||
| Operational efficiency (A unit of area/ hour) | 3-8 (with the crop varieties and conditions) | |||
