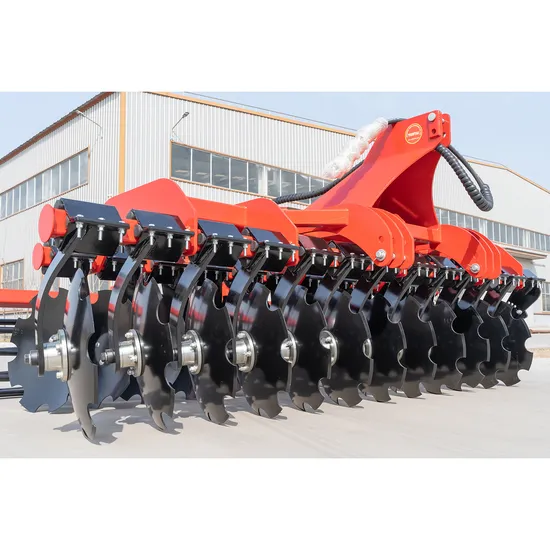

High Speed Joint Leveling Machine

Product Description

Product Description
The disc harrow is mainly suitable for smashing the stubble before ploughing, breaking the surface knot, cutting the straw into the field, breaking up the clods after ploughing, leveling and protecting the hoe, etc., and can also replace the plough on the mature land to carry out the soil ploughing operation. The work efficiency is high, the power utilization is reasonable, and the ability to break up the soil is strong. After the working, the surface is smooth and the soil is loose. It has strong adaptability to the filed with heavy soil, wasteland and weeds.
Yuntai factory making high speed disc harrow
Detailed Photos

Product Parameters

Technical specifications	Unit of measurement	Model
		1LZX-3.0G	1LZX-3.5G	1LZX-4.0G	1LZX-3.0H	1LZX-3.5H	1LZX-4.0H
Working width	mm	3000	3500	4000	3000	3500	4000
Length of the roller	mm	2900	3400	3900	2900	3400	3900
Diameter roller	mm	450	450	450	450	450	450
Type roller		TAVALUG PACKER			TAVALUG COARDA
Number batteries discs	pcs	2	2	2	2	2	2
Number of discs	pcs	24	28	32	24	28	32
Distance between discs	mm	240	240	240	240	240	240
Diameter discs	mm	560			560
Working depth	mm	180	180	180	180	180	180
Working speed	km/h	7--12	7--12	7--12	7--12	7--12	7--12
Transport clearance	mm	Min 300	Min 300	Min 300	Min 300	Min 300	Min 300
Transport speed	km/h	15	15	15	15	15	15
Productivity	ha/h	2.1-3.3	2.5-3.9	2.8-4.4	2.1-3.3	2.5-3.9	2.8-4.4
Required tractor power	hp	100-130	110-130	120-150	100-130	110-130	120-150
Length	mm	1500	1700	1700	1500	1700	1700
Width	mm	3000	3500	4000	3000	3500	4000
Height	mm	1500	1500	1500	1500	1500	1500
Weight	kg	1620	1950	2150	1400	1750	1950

Packaging & Shipping

Company Profile
Shandong Yuntai Machinery Co.,Ltd., founded in March 2005, registered capital 100 million CNY, covering an area of 135,000 square meters, is a leading exporter of agricultural machinery and accessories.
YUNTAI produce 20,000 sets tractor implements and 1,500,000 pcs of accessories annually and have its owe R & D team and strong production capacity.
YUNTAI produce agricultural machinery and accessories matched with 18 to 500 horsepower tractor. Including the tillage, fertilizering,Seeding, harvesting, transporting and plant protection machinery. Main equipments are disk plow, disc harrow, subsoiler, rotavator, rear blade, spreader, mower, trailer, grain cart, potato harvester, thresher etc. Main accessories are farm disc blade, plowshare, plow shovel, harrow tine, bearing assembly, harrow axle, trailer axles ,forging parts, casting parts and so on.
YUNTAI company have advanced production lines of machining, welding, punching, forging, sand blasting and powder coating. We also have two automated heat treatment lines and the heat treatment production technology is at the top level in the industry. Our products are exported to more than 70 countries and regions, such as the United States, Germany, France, Australia,Asia, Africa,etc.
YUNTAI is in Qihe Economic Development Zone, Dezhou city, Shandong Province. It is near to Jinan airport and Jinan railway station , From Jinan air port and Jinan west train station only takes 30 minutes by car.

Certifications
After Sales Service
Any question or problem welcome to contact us:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock. or it is 30-50 days if no stock, it is according to quantity.

Q: Do you provide samples ?
A: Yes, we could offer the sample .

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before delivery
Q: Which is your nearest port ?
A: QINGDAO
