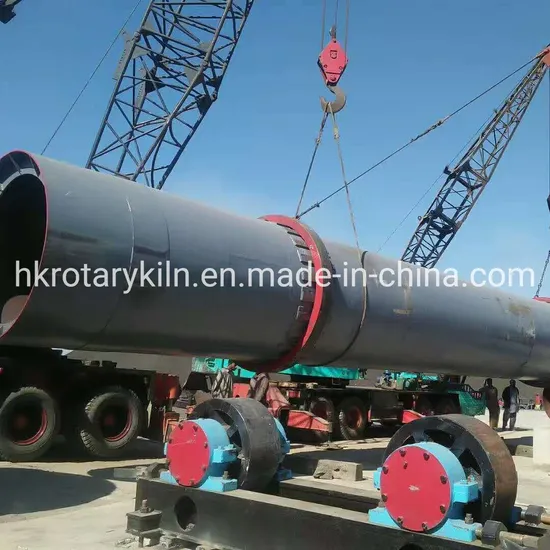

High Quality Kaolin Rotary Kiln for Cement Production Line

Product Description

Product Description

Brief Introduction of Rotary Kiln
1. Rotary kiln (cement kiln) is used for making of cement clinker and there are dry and wet methods to make cement.
2. Rotary kiln (metallurgy chemical) kiln is used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory.
3. Rotary kiln is used for baking high-alumina mine in the refractory material factory.
4. Rotary kiln is used for baking alumina in the aluminum factory and baking chrome ore and chrome powder in the chemical plant.
5. Rotary kiln (lime kilns) is used for baking active lime and dolomite in the steel factory and ferroalloy factory.
Specifications

Different Types of Rotary Kiln
1. Cement rotary kiln is primarily used for calcining cement clinker. It can be divided into dry process rotary kilns and wet process rotary kilns.
2. Metallurgy chemical kiln is mainly used for magnetized roasting of lean iron ore, and oxidizing roasting of chrome ore and nickel ore, etc.
3. Lime kiln is applied to roast active lime and dolomite which are commonly used in steel factories and ferroalloy factories.
Working principle

Working Principle of Kaolin Rotary Kiln for Cement Production Line
The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, material gradually moves down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln, sometimes in the same direction as the process material Rotary Kiln Dryer, but usually in the opposite direction Rotary Kiln Operation. The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe Rotary Dryer which acts like a large bunsen burner. The fuel for this may be gas, oil or pulverized coal.


Product Parameters

Specifications of Kaolin Rotary Kiln for Cement Production Line

Specifications (m)	Size of kiln			Production (t/h)	Rotate speed (r/min)	Motor power (kw)	Weight (t)	Remarks
	Diameter (m)	Length (m)	Inclination (%)
Φ 1.4× 33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5	---
Φ 1.6× 36	1.6	36	4	1.2-1.9	0.26-2.63	22	52	---
Φ 1.8× 45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2	---
Φ 1.9× 39	1.9	39	4	1.65-3	0.29-2.93	30	77.59	---
Φ 2.0× 40	2	40	3	2.5-4	0.23-2.26	37	119.1	---
Φ 2.2× 45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3	---
Φ 2.5× 40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61	---
Φ 2.5× 50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37	---
Φ 2.5× 54	2.5	54	3.5	6.9-8.5	0.48-1.45	55	196.29	---
Φ 2.7× 42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5	---
Φ 2.8× 44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58	Rotary kiln with suspension preheater
Φ 3.0× 45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94	---
Φ 3.0× 48	3	48	3.5	25.6-29.3	0.6-3.48	100	237	Precalciner kiln
Φ 3.0× 60	3	60	3.5	12.3-14.1	0.3-2	100	310
Φ 3.2× 50	3.2	50	4	40.5-42	0.6-3	125	278	Precalciner kiln

Our Advantages

Our advantage:
1. BV, CE, ISO Certificate;
2. a professional team with rich experience;
3. products already exported to many countries;
4. one-on-one full service for consulting, technology, installation, training, etc
5. one-to- three years' warranty and provide spare parts for long time.

FAQ

FAQ:
1. What is the raw material do you want to grind?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of rotary kiln equipment and related machinery
(Rotary kiln, granulator, crusher, grinder, dryer, cooler, feeder, conveyor belt), etc.
2.What should I do if I encounter some trouble while using it?
A: We will provide English manuals and videos to show you how to solve the problem, and if necessary, we will dispatch our engineers to your factory.
3. Do you provide installation services after ordering the machine?
A: For single machines, we provide guidance and operation videos for users.
For the production line, we provide professional construction drawings and arrange engineers to guide users in installing machines. Assist users in training skilled workers.
4.Can we visit your factory and see your equipment?
A: We really warmly welcome every customer to visit our factory, and we can take them to visit the machinery factory
1. We have comprehensive technical and business consulting services;
2. Propose the most suitable solution and equipment for our customers;
3. Free CAD design: If you can provide materials, target capabilities, and factory information, we can provide you with free CAD design.
After sales service:
1. Safe and fast payment methods;
2. Assist clients in equipment foundation construction;
3. Dispatch engineers to install and debug the equipment;
4. Provide training for frontline operators on site;
5. Regularly visit customers, solve production problems, and provide lifelong service
Our engineers will suggest you the most suitable one for you according to your information.
We will give you factory price with full specification, so pls leave us an inquiry to know more details about price, packaging shipping and discount.
Now, please click the following contact to send us email for best offer and more details !
↓↓↓
Henan Hongke Heavy Machinery Co.,ltd
Tel&Fax:0086-371-68617124
