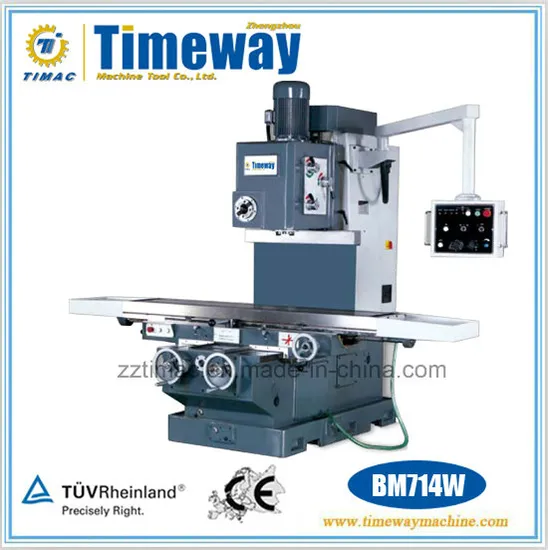

Horizontal and Vertical Bed Type Milling Machine (BM714W)

Product Description

Horizontal and Vertical Bed Type Milling Machine (BM714W)

Features:
* The machine can do vertical and horizontal milling.
* Three axes are automatical feed.
* It adopts rectangular guideways with high stability.
* The machine is equipped with automatic lubrication system.
* The machine is bed type milling with large load and suitable for machining large worpieces.

Standard accessories:
Draw bar, ISO50 Milling chuck, ISO50 Milling arbor, 7:24 middle sleeve, Inner hexagon spanner,
Double-head wrench, Foundation bolts, Nut, Flat washer, Sizing block, Operation manual
Parameter:

Specification		Unit	BM714W
Table size		mm	2000x400
Spindle taper(vertical/horizontal)			ISO50
Longitudinal travel (X-axis)		mm	1500
Cross travel (Y-axis)		mm	500
Table T-slots (number/width/distance)		mm	3/18/100
Distance from spindle nose to table surface		mm	100~650
Distance from spindle axis to column surface		mm	600
Spindle speed		rpm	66-1440
Swivel angle of swivel head		°	±30°
Quill travel		mm	105
Table feed	Feed	mm/min	20-2000
	Rapid feed	mm/min	3500
Main motor		kw	6.5/8
Feed motor		kw	2.8, 18N/m
Coolant motor		w	90
Overall dimension		mm	3000x2285x2340
Machine weight		kg	5000

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
