10W 1.4GHz 2T2R AES Encryption HD Image Backpack Wireless Transmitter

Product Description

Product DescriptionZKManet2271UM is a high-power MESH self-organizing network radio with integrated backpack design, which can provide a more stable emergency network and longer transmission distance in complex situations. The device with data display, real-time display of the device status and device connection status; can be used on the back of a single soldier, you can also use the tripod as a relay, but also can be installed at a fixed point. With lithium battery power supply, the product appearance is simple and generous, easy to use, powerful, reliable and so on.
Detailed Photos

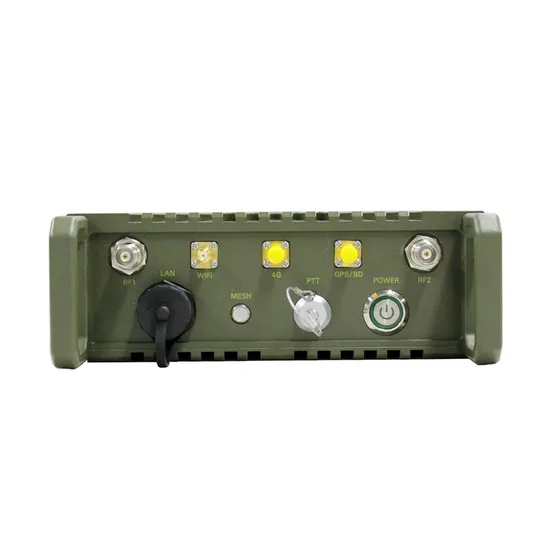

1. Power push button2. PTT (Mic)3. MESH signal indicator4. LAN interface, RJ455. Digital LCD indicator6. Configuration buttons (optional) - set frequency, bandwidth and distance parameters.7. Battery Indicator8. Battery butterfly clasp9. MESH antenna interface-210. WIFI antenna interface-211. 4G antenna interface12. GPS/BD antenna interface13. WIFI antenna interface-114. MESH antenna interface-11. Battery charging port2. Main body power input port1. Battery +/- contacts2. SIM card slot
FeaturesSupports voice intercom;
Triple-proof design, IP66 with high reliability;
With SIM card slot, supports 4G full network pass;
Comes with lithium battery, using time ≥ 4 hours;
Supports WI-FI connection and GPS/BD positioning.
All-in-one design, highly integrated, light weight and easy to carry;
Has a display that shows device configuration information and device connection status;
One-touch use, no need to configure and change parameters, convenient operation and maintenance;
Can be external high gain antenna or adapted with different power amplifiers to adapt to different usage scenarios;
Has a perfect network management function, you can complete the system management, monitoring and maintenance;
Adopts all-IP transparent data transmission and supports end-to-end Internet protocol, which can be conveniently connected with higher-level network systems to constitute a variety of specialized command application systems, and can also be accessed to public basic networks.
* Broadband MESH self-organizing network
Without relying on the base station, it can efficiently and quickly form a centerless wireless broadband network. Support multi-hop relay, can effectively expand the coverage radius of the wireless network. The network has automatic selection of the best routing characteristics, self-organization, self-healing, and automatic realization of chain, star and other network topologies.
* One machine with multi-mode, ready to use at power on
Any one node equipment can be used as information collection node, relay node or information output node at the same time, and it can be used instantly when it is switched on to realize the data transmission of high-definition video, voice, image, etc. It is flexible and simple to deploy.
* Rich Convergence Capabilities
Built-in Wi-Fi, GPS / BeiDou module, 4G / 5G module, can be realized with other public or private network communication system for rapid fusion, to support the integration of communication needs.
* Intelligent Control
Integrated Wi-Fi hotspot technology, support intelligent mobile terminal access, can call the audio and camera of the intelligent terminal, realize the integration of equipment and intelligent terminal. The device with display can monitor the connection status in real time, and with buttons, no need for computer or cell phone, you can directly configure the parameters;
* All-IP networking, easy interconnection
Provide IP interface, can realize interconnection with other IP devices.
* Independent research and development: with complete core technology and intellectual property rights, it can be quickly and flexibly customized according to users' needs.
Product Parameters

Item No.	ZKManet2271UM	Band	ZKMANET
RF Parameters	Working Frequency	1.4GHz(300MHz-3.8GHz customizable)
	Working Bandwidth	5/10/20/40MHz, 20MHz(typical)
	RF Channel	2T2R
	Output Power	20-30W customizable
Network Parameters	Nodes	64 nodes(128nodes as option)
	Throughout Rate	82Mbps
	Encryption	AES
	Public Network	4G/5G Full Netcom
	WIFI	2.4GHz
	Transmission Distance	10-20km(line-of-sight)
Physical/Environment	Dimension	320*200*75mm
	Weight	4.75kg(included battery)
	Working Temperature	-40ºC~+65ºC
	Protection Rating	IP66
Electrical Characteristics	Power Supply	16.8V
	Battery Capacity	13Ah
	Power Consumption	<80W
Other	Data Show	Support
	Intercom	Support
	Positioning	Support

Application
Recommend Suit
It can be used with ZKManet2251UM backpack radio, ZKManet2451UM unmanned airborne radio and ZKManet2271UM 20W backpack radio developed by our company.
