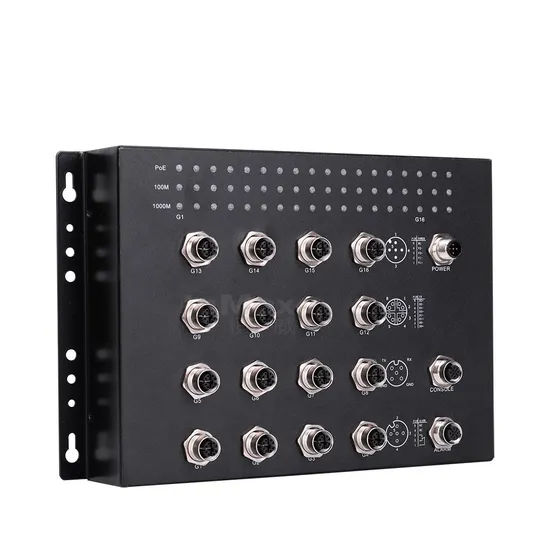

Inmax Manufacturer M12 Switch IP40 9V 12V 24V 36V with 16 Port

Product Description

Product Description
M716BGigabit Managed Railway Ethernet Switch Features and Benefits ☆Meet the EN50155 railway industry standard requirements.
Designed for railway transportation, vehicles and PIS system applications.
☆With 16 x 10/100/1000Mbps M12 gigabit ports.☆Support bypass function (G1- G2 port) for power-off protection.☆Redundant dual 48VDC power inputs. Built-in overcurrent protection, Reverse connection protection.☆RSTP/STP/MTSP for network redundancy.☆SNMPv1/v2c/v3 for different levels of network management☆Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
☆IGMP snooping for filtering multicast traffic.
☆Easy network management through web browser, CLI, Telnet /serial console, SNMP.
☆-40 to 75ºC operating temperature range (WT models).
☆No fan, low consumption, industrial design standard, industrial grade electronic components.
☆Environmental protection & lead-free production.
☆High strength metal housing, support wall mounting.
☆IP Rating up to IP40 (Optional IP67 waterproof housing).
☆Without packet loss in 72 hours full load flow test. Introduction☆M716B Gigabit Managed Railway switches support 16 x 10/100/1000M M12 ports, and redundant dual power inputs. It adopts RSTP/STP/MTSP for network redundancy, to make users set redundant ring networks easily and to increase network reliability. ☆The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. ☆It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75ºC working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection.
☆Follow IEEE 802.3az (Energy Efficient Ethernet), provides port as low power idle mode, adjusts the output power according to cable length, and supports port as sleep mode when no connection, greatly reducing power consumption. Product ParametersTechnology Parameters

Standards	IEEE 802.3
	IEEE 802.3u
	IEEE 802.3ab
	IEEE 802.1D-2004 for STP
	IEEE 802.1w for Rapid STP
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1p for Class of Service
	IEEE 802.1s for Multiple spanning tree protocol
	IEEE 802.1X for Authentication
	IEEE 802.3ad for Port Trunk with LACP
	IEEE 802.3x for Flow Control
	IEEE 802.3az,EEE Energy efficient Ethernet standard

Switch Properties

Priority Queues	4
Max. Number of Available VLANs	64
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
MAC Table Size	8K
Packet Buffer Size	4.2 Mbit
Jumbo Frame	9K Bytes

Interface

M12 ports	10/100/1000 BaseT(X) X-code
Console Port	RS-232(M12 A-code 5Pin port)
M12 power	M12-5Pin A-code
M12 alarm	M12-5pin A-code

LED	System Led: SYS
	Port Led: Copper: Link1~16, Act G1~G16
	PoE: G1~G16
	Power Led: PWR

Power Requirements

Input Voltage	48 VDC (18 to 75 VDC), redundant dual inputs
Input Current	0.25A@48VDC 12W
Overload Current Protection	Present
Reverse Polarity Protection	Present

Physical Characteristics

Housing	Metal, IP40 protection
Dimensions (W × H × D)	271mm x 179mm x 60mm
Weight	3.5kg
Installation	wall mounting

Environmental Limits

Operating Temperature	-40 to 75ºC (-40 to 167ºF)
Storage Temperature	-40 to 85ºC (-40 to 185ºF)
Ambient Relative Humidity	5 to 95% (non-condensing)

Industrial Standards

EMI	FCC Part 15,CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD), Level 4
	EN61000-4-3 (RS), Level 3
	EN61000-4-4 (EFT), Level 4
	EN61000-4-5 (Surge), Level 4
	EN61000-4-6 (CS), Level 3
	EN61000-4-8,Level 5
Shock	IEC60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC60068-2-6

Warranty

Warranty Period

5 years
