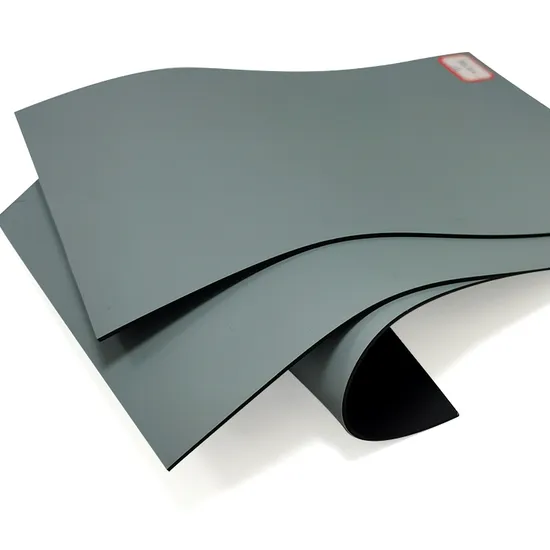

ESD Matting Natural Rubber Sheet ESD Antistatic Table Mat Floor for Cleanroom

Product Description

Product Description

Product Description
Construction Material:	Rubber
Color:	Green, blue, gray, black
Normal Size:	0.6,0.9,1.0,1.2M*10m*2mm or Custom
Two layers:	Static Dissipation layer + Conductive layer
Surface:	Shiny or dull
Gross Weight:	around 35kg/roll
Remarks:	Above sizes are standard, customized size available.

Detailed Photos
Product Parameters

Performance index of Dissipative Table/Floor Mat
Dissipative Table Mat/Floor Mat			Specification	Color
Static Dissipation layer	Surface resistance	107-109	1.2mx*10mx*2mm(T) 1.0mx*10mx*2mm(T)	Green, blue, gray, black
	Friction static potential V	<100
Conductive layer (black bottom)	Surface resistance	≤106
	Friction static potential V	<60
Static voltage attenuation period	5000 - 500V	<1.9s
Flame retardation	GB4609-84, FV-0 (less than 10S)
Volume resistance	107-1010Ωcm
Physical performance index of Dissipative Table/Floor Mat
No.	Description		Test reference	Results
1	Tensile strength		GB 1040	3.6Mpa
2	Fracture elongation		GB 1040	188%
3	Tear elongation		GB/T 529	20.6KN/m
4	Rebound elasticity (the specimen is laminated with 6 layers of sheets)		GB/T 1681	14%
5	Impact embrittlement temperature (no cut)		GB 5470	No damage
				at -25ºC
6	Permanent compression change rate, 70ºC*22h, compression 25%		GB 10654	17.90%
7	Hot air ageing	Tensile strength change rate	GB/T 7141	8.00%
		Fracture elongation change rate		-3.80%
		Weight loss on heating		1.08%
Remarks	Test according to national standards: GB 1040, GB/T 529, GB/T 1671, GB 5470, GB 10654 and GB/T 7141.

Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: Are you a manufacturer?
*1.Ans:Yes, we have been in manufacturing and providing excellent Cleanroom and ESD solutions for customers more than 10years.
*2.Our own production plants and a wide network of suppliers who are strictly selected, are totally qualified for ISO Quality Management System.
Q2: How long could you prepare samples? Ans:Normally 1days if we have the sample onhand. If customized one, about a week around.
Q3: How about batch order production? Ans: Normally 3-7days or so
Q4: Do you inspect the finished products? Ans:Yes, we will do inspection according to ISO standard and ruled by our QC staff.
Q5: How do you ship the goods? Ans: By sea, by air, by truck or by courier (UPS, DHL, Fedex, TNT etc.)
Q6: What advantage do you have? Ans:
*1.We have professional engineers, customers can expect the best possible advice and support.
*2.Related responsible team to answer all your questions and follow-up process for you and do update in time
*3.Strict and standard process control according to Quality Management System.
*4.Documents support on products, we have strong technical data sheet to support our products, which could make you easier to know our products.
Naturally, the catalogue could only show the general styles of products, it is quite possible that you could not
Ind the one you are interested in.
If you are interested in our company, please feel free to contact us.
Send your inquiry details in the below, click " send" now!
