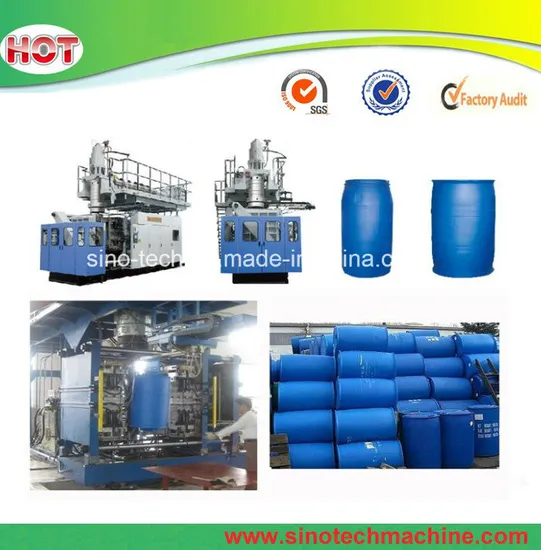

Blow Molding Machine for Plastic Drums / HDPE Plastic Blow Molding Machine
| US$80,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ST-160L
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Made in
China
Application
Drum
Condition
New
Max.Product Volume
160L
Dimension(L*W* H ) (M)
5.93*2.1*4.5
Weight
22ton
Warranty
1 Year
Delivery Time
60 Days After Payment
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Station
Single
Transport Package
Wooden Case
Trademark
Sino-tech
Origin
Jiangsu, Zhangjiagang
HS Code
8477301000
Production Capacity
200 Sets/Year
Product Description
Blow Molding Machine for Plastic Drums / HDPE Plastic Blow Molding MachineTechnical Specification
| Max. Product Volume(L) | 160 |
| Station | Single |
| Dry cycle (PC/H) | 300 |
| Screw Diameter (MM) | 100 |
| Screw L/D Ratio (L/D) | 28 |
| Screw Drive Power (KW) | 75 |
| Screw Heating Power(KW) | 24 |
| No.of heating zone(Srew) | 5 |
| Output of HDPE(kg/h) | 180~230 |
| Hydraulic pump driving power (KW) | 32.7 |
| Clamping force(KN) | 1200 |
| Platen distance (MM) | 500~1900 |
| Max. Size of Mold(W*H)(mm) | 1200*1900 |
| Capacity of Accumulator head(L) | 18 |
| Max.Die Diameter (mm) | 510 |
| Die heating power(KW) | 35.2 |
| No.of heating zone (ZONE) | 6 |
| Blowing pressure(Mpa) | 0.8 |
| Air consumption(m³/MIN) | 2 |
| Cooling water pressure(Mpa) | 0.4 |
| water consumption | 300 |
| Size of machine(L*W*H)(m) | 5.93*2.1*4.5 |
| Weight of machine(TON) | 22 |
