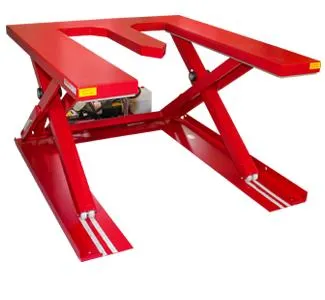

Palletpal Roll-in (ROLL-E) Lift Table

Product Description

Product Description
The Roll-In Level Loader from Southworth features a unique low-profile design that allows it to be fed with an ordinary hand pallet truck. Simply pick up a palletized load, raise the pallet truck and roll the load into position. The pallet moves over the Roll-In while the pallet truck rolls between the outside platform and the center support beam. By eliminating the need for forklift trucks, costs are reduced and productivity is improved. A convenient footswitch allows for hands-free positioning of the load. A full perimeter toe-guard provides an added measure of safety.
Unique platform allows hand truck to roll in between platform supports
Unique platform allows hand truck to roll in between platform supports
Product Parameters

Model No.	ROLL-E 2.2-31	Capacity KG	1000
Platform size mm	1295x1537	Base Frame mm
Min. Height mm	83	Max. Height mm	965mm
Model Type	Stationary	Lift Height mm	882
Color	Grey/green/ blue/others	Lead Time	4-6weeks

Application Fields
•Consumer Appliance Manufacturing •Printing, Publishing and Book Binding •Prepared and Frozen Food Processing •Beverage •Pharmaceuticals •Automotive Parts
•Warehousing •Electronics Assembly •Woodworking
•Machine Shops •Retail Distribution
