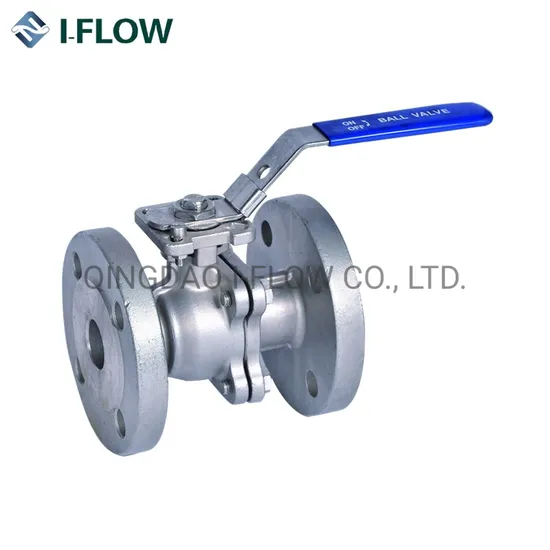

Trunnion Mounted Floating Ball Valve Two Piece Stainless Steel Flange Ball Valves

Product Description

Two Piece National Standard High Platform Flange Ball Valves

Ball Valves Features:
1. Small fluid resistance, ball valve is one of the smallest fluid resistance in all kinds of valves, even if it is a reducing ball valve, its fluid resistance is also quite small.
2. The thrust bearing reduces the friction torque of the valve rod, which can make the long-term operation of the valve rod stable and flexible.
3. The sealing performance of the valve seat is good. The sealing ring made of elastic materials such as polytetrafluoroethylene is easy to seal, and the sealing capacity of the ball valve increases with the increase of the medium pressure.
4. The valve rod seal is reliable. Because the valve rod only rotates as if without lifting movement, the packing seal of the valve rod is not easy to be damaged, and the sealing capacity increases with the increase of the medium pressure.
5. As PTFE and other materials have good self-lubricating property and small friction loss with the ball, the service life of the ball valve is long.
6. The bottom mounted valve rod and the convex step at the head of the valve rod can prevent the valve rod from ejecting. If the fire causes damage to the valve rod seal, metal contact can also be formed between the convex step and the valve body to ensure the valve rod seal.
7. Anti static function: a spring is set between the ball, the valve rod and the valve body, which can lead out the static electricity generated in the switching process.
Ball Valves Structure:

Nominal pressure	housing	Seal pressure	Applicable medium	Applicable temperature (ºC)
1.6/2.5/4.0/6.4/ 10.0/16.0	P×1.5 times	P×1.1 times	Water, steam, oil, nitric acid, acetic acid	≤ 150 ºC

Main Parts Materials:

	Q41F-(16~25)C	Q41F-(16~25)P	Q41F-(16~25)R
Valve body	WCB	1Cr18Ni9Ti CF8	1Cr18Ni12Mo2Ti CF8M
Bonnet	WCB	1Cr18Ni9Ti CF8	1Cr18Ni12Mo2Ti CF8M
Sphere	1Cr18Ni9Ti 304	1Cr18Ni9Ti 304	1Cr18Ni9Ti 316
Stem	1Cr18Ni9Ti 304	1Cr18Ni9Ti 304	1Cr18Ni9Ti 316
Seal ring		PTFE
Filler		PTFE

FAQ
1.Can I have a sample order for valve?
A: Definitely Yes.We welcome sample order to test and check quality. Mixed samples are acceptable.
2. Can you OEM or ODM?
A:Yes, we have a great research & development team. The products can be made according to your request.
3. Can you provide the relevant documentation and certificate?
A:Yes, we can provide you with the documentation and certificate you need ,IS09001:2000 international quality system certification,(CE)certification of the European Community, Det Norske Veritas (DNV) factory certification, Lloyd's Register (LR) factory certification, China Classification Society (CCS) quality system certification and the FM and UL certification of the US, Bureau Veritas(BV) ,American Bureau of Shipping(ABS) etc.Of course we can also provide you the test Report; Certificate of Material Analysis; Certificate of Origin; and other export documents which required.
4.Can you do the design for us?
A:yes.Please send us high resolutionimages,your logo and other materials needed . We will send you finished files for confirmation.
5.How to proceed an order for valve?
A: Step1 let me know your requirements or application. Step 2 We quote according to your requirements or our suggestions. Step 3 Customer confirms the samples and places deposit for formal order. Step 4 We arrange the prodution.
6.What is your terms of delivery?
A: We accepte EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
7.What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea.Airline shipping is also optional.
8. How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. Quality control : High quality mold./Raw materials control/Production process quality control/Final inspection/Water testing (no leaking).
9. What is the average lead time?
A:For samples, the delivery time is about 2-5 days. For mass production, the lead time is about 15-60 days after receiving the deposit payment. we can provide production schedule and related photos every two weeks. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate our production plan to your needs.
10. Why choose us?
A:1 Genuine produces with excellent quality and competitive price. 2 Cooperating with the customers all over the world more than 60 countries and regions, and knowing the markets very well. 3.We have been specializing in flow control area for more than 10 years. Everyone can be rest assured working with us. 4 After-Services will be highly-satisfing. Any problems and feedbacks will be answered in a short of time.
11: How can I trust you and your company?
A: We are a verified supplier and creditable company, we are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 10 years ago, Including Fortune 500 companies. customers always make highly complimentary remarks.
