1.6kw/3kw High Performance Support Factory Supply BMS Function Pure Sine Wave Solar Inverter

Product Description

1.6KW/3KW High Performance Support Factory Supply BMS Function Pure Sine Wave Solar InverterProduct Description
Product Description
1.Low no-load loss, less than half of the high-frequency machine with the same frequency.
2.Pure sine wave output, adaptable to different loads.
3.Multiple parameters can be adjusted according to user needs.
4.Lightweight body, easy to install and transport.
5.Battery reverse connection protection with fuse switch, safer installation.
6.Optional solar controller with MPPT.
7.High precision output voltage to protect your appliances.
8.Support WIFI and BMS function for lithium battery.Product Parameters

Solar Inverter GD Series E (1200-2400W)
Model		GD2012EMH	GD2024EMH
AC input voltage	AC input	220VAC(Standard)110VAC(Customized)
	Input voltage range	90-280VAC±3V(Normal mode) 170-280VAC±3V(UPS mode)
	Frequency	50-60Hz ±5%
Output	Rated power	1600W	3000W
	Output voltage	The output voltage under mains power is the same as the input voltage
	Output frequency	The output frequency under mains power is the same as the input frequency
	Output Voltage during invertering	220VAC±10%(110VAC±10%)
	Output frequency during invertering	50-60Hz ±1%
	Output wave during invertering	Pure sine wave
Battery	Battery type	External lead-acid battery,gel battery,water battery or Lithlum battery
	rated voltage	12VDC	24VDC
	Constant charging voltage(adjustable)	14.1VDC	28.2VDC
Charger	Maximum photovoltagic arrow power	2000W	3000W
	PV input voltage range(MPPT)	40V-500VDC	40V-500VDC
	Max PU input voltage	500VDC	500VDC
	Best VMP working range	300-400VDC	300-400VDC
	MAX PV charge current	100A	100A
	MAX AC charge current	60A	60A
	Transfer time	<10ms(UPS mode),<20ms(INV mode)
	Overload ability	Battery mode:2ls@105%-150% load,1ls 150%-200% load,400ms@>200% load
Protection	AC	Input overcurrent without fuse switch protection
	Inversion	overload,short circuit,low voltage,battery reverse connection protection(fuse)
Display	Display screen	Color segment code screen
	flipping pages	Operating mode/load/input/output
	LED	LED lights display mains power,charging status,inverter status,fault status
Ambient temperature	Operating temperature	-10°C~~50°C
	Storage temperature	-15°C~~60°C
	Sound on	The alarm sound of the buzzer varies depending on the fault code.
	Operating Environment Humidity	20%-95% Non condensing
	Noise	≤50db
Dimension	L*W*H(mm)	345*254*105mm

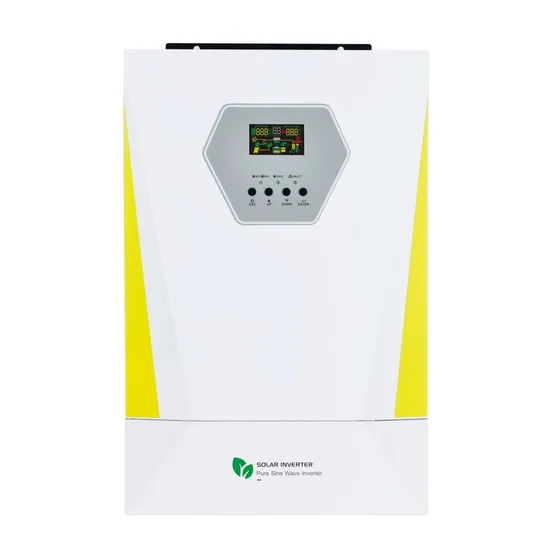

Detailed Photos
Principles of Photovoltaic Power Generation
Company Profile
Wuhan Harvest Energy Technology Co.,ltd was founded in 2017,after more than 6 years of development, it has become a comprehensive integration of industry and trade company, which engaged in design, development and production of various pipeline system and connectors professionally.Harvest provides the high-quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, railway transportation, automobile manufacturing, household appliances, electrical installations etc.
The excellence of every detail is the root of excellent quality. Harvest has strong technical force, the advanced technique of production and complete testing equipment. Harvest has maintained "Excellent quality, Exceeding customer needs" business purposes. We has established quality system according to the IS09001 international standards, which applied in the whole process control of the product design, manufacturing and service. All our supply chains has obtained TUV Certification and the Quality Certification of IS09001 international quality system which issued by the China Quality Certification Center. The products has passed EU CE Certification ,conform to the ROHS standards and SGS Environmental Protection Certification, which sale from coast to coast and exported in the Middle East, Southeast Asia, the European Union, the United States, Australia, South America and other countries and regions.
Harvest Electric is engaged in the supply of electrical products with the quality of "Safe,Reliable, Suitable and Steady", observes the commitment of " Leader in science and technology, Honest operation, Quality and Customer first", provides highest quality and the most sincere services for the new and old,domestic and foreign customers.
