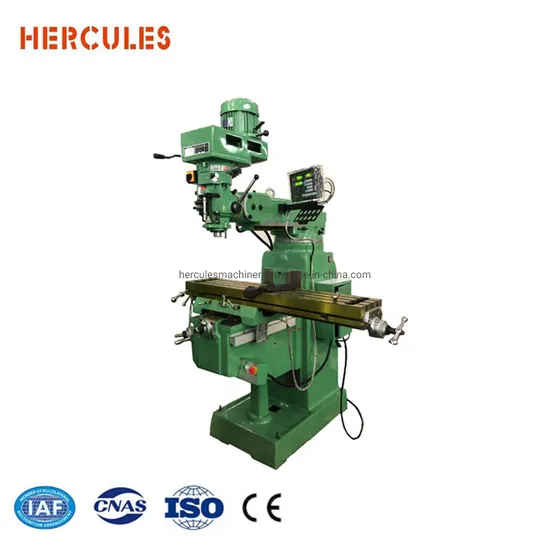

M3E Fresadora Metal working Vertical Turret Milling Grinding Lathe machine for India market

Product Description

Advantage!!
1. High-frequency heat treatment for working table: hardness is over HRC48 and the harden thickness is up to 3mm.
2. All slide with high quality imported Turcite B, and well hand scraping with perfect match and oil containing , and the well lubrication ensure the long lasted for the machine and accuracy resistance.

3. HT250 grain casting with Meehanited standard processing .And materials strictly added with Nickel, brass, Chrome and Rare-earth , and the physical performance and rigidity of casting is well improved.
4. For the important parts like working table and saddle, we tempered twice during the machining.

5. Key parts(for high speed driving) for the head are imported from Taiwan , and the accuracy , rigidity and DB voice of the head with well performance .

Model	M3(M3E)
Economic Series
Table size(L*W)(mm)	1270x254
Max.load of table (kg)	300
X axis(mm)	900 810 with power feed
Y axis(mm)	400
Z axis (mm)	400
Work table T slot (No.-size*pitch) (mm)	3-15.88x63
Distance between spindle and table(mm)	45-450
Ram travel (mm)	380
Travel of spindle quill (mm)	120
Auto crossward feed(mm/rev)	0.04,0.08,0.15
Spindle speed(rpm)	80-5440rpm 16steps
Spindle hole taper	R8 / NT30 (optional )
Main Motor	3HP
Tilt angle for milling head	left and right±90º forward and backward±45º
Guiding tracks(X.Y.Z)	X,Y and Z axis are all dovetailed
Dimension(L*W*H)(mm)	1750x1500x2100
Milling head	Square head with side brake milling head;
Weight (kg)	1100
Hercules Machinery Equipment Ltd.

Optional Accessories:
Optional milling head :
1. Round step pulley milling head;
2. Variable stepless milling head;
3. Frequency conversion head;
