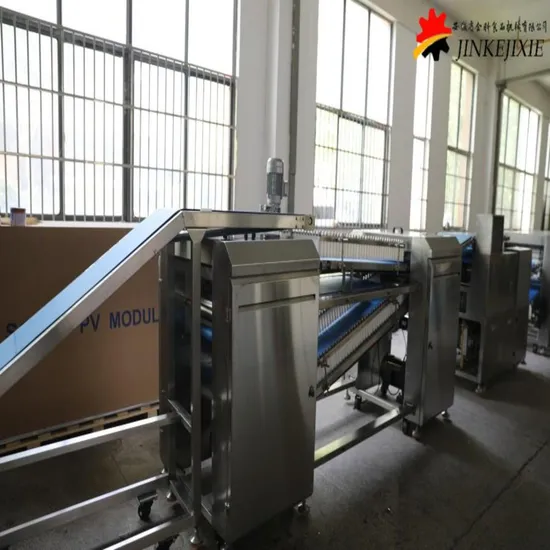

Automatic Flour Tortilla Standardise Production Line

Product Description

PRODUCTION OVERVIEW

TORTILLA PRODUCTION LINE
Tortilla automatic production line as a high yield, high degree of automation , the use of "continuous pressing technology" per hour output of up to 17,000 pieces/hour, the basic process is divided into, dough, sorting, awakening, molding, baking, cooling, testing, stacking, packaging; The degree of automation can reach 90%, and the whole line is equipped with intelligent operating system, central processor, human-computer interaction interface, precision sensors, so that the control is more stable to support the growing demand for products. The big dough block is made into small section after the dough divider, and then through the dough divider into small dough, into the fermenting machine for 10-15 minutes after the rising by the conveyor belt to the main machine to shape the pasty, the pasty into the oven to bake and then into the cooling racks to cool, and finaly after the stacking machine to organize and wait for the package.

Name	Tottilla Production Line
Condition	New
Advantage	Easy Operation;Saving energy
Speed	Adjustable
Size	Different
Weight	Different
Material	Stainless Steel
Automatic Grade	Automatic
Appearance	Different
Safety Standard	Qualified
Protective Measure	YES
Emergency Stop Function	YES
Sustainability Attribute	Recyclable
Warranty Period	1 Year

PRODUCTION DETAILS

One Line With Nine Ferment Dough

Capacity	3000
Overal dimensions	7279×1520×4000mm
Power	2 kw
Time	10-15 min

Fully Automatic Dough Elevator

Voltage	380V 50HZ
Overal Dimensions	1850×1150×2500 mm
Power	1.1 KW
Weight	150 KG

Dough Lump Spacer

Overal dimensions	1447×1151×11 00 mm
Power	0.95 kw
Pressure range	100 kg

One Out Four Laminating Machine

Equipment size	2500x1000x1400 mm
Power	1.15 kw
Capacity	4500-6000 pcs/h
Pessure	0.8-1.0 MPa
Production diameter	120-140 mm
Production weight	60-150 g/pcs

OX Tongue Pastry Laminating Machine

Equipment size	2500x960x1400 mm
Power	1.15 kw
Capacity	1500-2500 pcs/h
Pessure	0.8-1.0 MPa
Production diameter	80×220 mm
Production weight	80-150 g/pcs

Circular Film Laminating Machine

Equipment size	3400x1040x1730 mm
Power	2.5 kw
Capacity	2500-4000 pcs/h
Pessure	0.8-1.0 MPa
Production diameter	80-110 mm
Production weight	80-150 g/pcs

Main Features
1. Dough Mixer: used to mix flour, water, oil and other raw materials into a uniform dough. The equipment has precise mixing ratio and mixing speed control to ensure the quality of the dough is stable.
2. Dough Press: press the mixed dough into thin sheets for subsequent processing. The tablet press usually adopts a high-precision roll design to ensure uniform thickness and smooth surface.
3. Forming Machine: The pressed sheet is cut into round or square slices suitable for making burritos. The molding machine can be adjusted according to product specifications to meet the needs of different sizes.
4. Baking or Frying Equipment: bake or fry the molded sheet to make it crispy and delicious. These devices usually have temperature and time control functions to ensure the stability of product quality.
5. Filling Machine: Used to fill a variety of fillings (such as meat, vegetables, cheese, etc.) into the dough. The filling machine can be customized according to customer needs to adapt to the needs of different fillings and filling methods.
6. Burrito Forming Machine: Roll the filling pieces into the shape of burrito. The equipment has efficient rolling capability and precise dimensional control to ensure the appearance and taste of the product.
7. Packaging Machine: The production of good burrito packaging for storage and sales. Packaging machines can be customized according to product specifications and packaging materials to meet different market needs.
