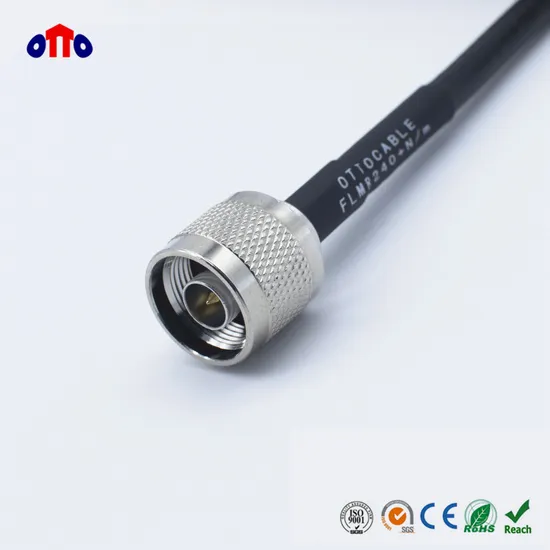

50 Ohm RF Coaxial Cable LMR240 for Antenna
| US$0.15-0.80 | 5,000 Meters (MOQ) |
Basic Info.
Model NO.
LMR240
Type
Coaxial
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
BC/CCS
Certification
CE, ISO, RoHS
Model
LMR240
Brand
Otto Cable
Transport Package
Pallet; Carton; Spool
Specification
6.10mm
Trademark
OTTO CABLE
Origin
Zhejiang, China
HS Code
8544200000
Production Capacity
150km/Day
Product Description
50 Ohm RF Coaxial Cable LMR240 for Antennas
Application:
• Mobile Antennas
• Wireless Communication Syestems
• WLL, GPS, WLAN,WiMax
• Cellphone Signal Repeaters
• Signal transmission
Features:
• 50 Ohm
• Low Loss RF Cable
• 0 - 6GHz
• Excellent performance at high frequency
• Equivalent to cable 4D-FB.
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction
| Item | Material | Diameter(mm) |
| Inner Conductor Dielectric First Shield Second Shield Jacket | Bare Copper / Copper Clad Steel Foam PE Bonded Aluminum Foil Tinned Copper Wire Braid PVC/PE/LSZH | 1.42 3.81 3.94 4.52 6.10 |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(dB) VSWR Installation Temp(ºC) Operating Temp(ºC) | 50±3 79.4 84 ≥20 ≥90 ≤1.2 -25 to +70 -25 to +70 |
Attenuation (@20ºC)
| Frequency(MHz) | Max Attenuation(dB/100m) |
| 150 220 450 900 1500 1800 2000 2500 | 9.9 12.0 17.3 24.8 32.4 35.6 37.7 42.4 |
