Alloy Wheel Rim Repair CNC Lathe Taian Crystal Wheel Repair Machine Wrm26h Awr2840 PC
Basic Info.
Model NO.
WRM26H
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4
Power Source
Electric
Controlling Mode
PC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Color
Optional
Function
Alloy Wheel Repair
System
PC Controled
Transport Package
Wooden Case
Specification
28 inch
Trademark
Crystal
Origin
China
HS Code
8458110090
Production Capacity
10 Sets/Month
Packaging & Delivery
Package Size
2200.00cm * 1860.00cm * 2160.00cm
Package Gross Weight
2200.000kg
Product Description
The currency exchange rate fluctuates greatly, please consult customer service for the best price.Our purpose build alloy wheel lathe incarcerates a user friendly multi-touch interface
for simplified probing and cutting processes. With full digital optimization build directly
into the interface, there is no need of a separated computer system to house the software,
making this our best ALL IN ONE solution for repairing diamond cut alloy wheels.

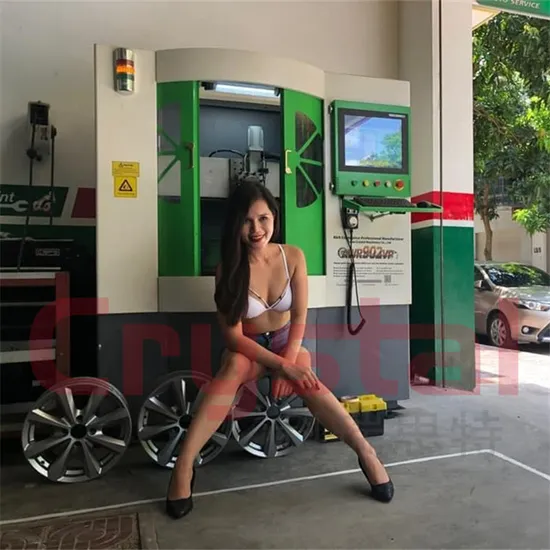

Product Display
Wheel Repair Lathe Advantages
1. Cuts wheel up to 27''.
2. 17 inch interface touchscreen.
3. With CE, SGS, ISO, BV certificates.
4. Automatic ruby probe system.
5. Self-developed optimization software.
6. Free Training video and manual.
7. 7x24 hours technology support.
8. 2 USB interface.
9. High efficiency and economic.
10. Two-year warranty.
11. Free factory hand-to-hand training.
12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.
Alloy Wheel Repair Lathe : Specifications
| ITEMS | WRM26H-PC | |
| Max. swig over bed (mm)(inch) | Φ720(28') | |
| Max. Diameter of alloy wheel(mm) (inch) | Φ660(27') | |
| Max. Stroke of the X-axis(mm) | 350 | |
| Max. Stroke of the Z-axis (mm) | 850 | |
| Width of the rail (mm) | 330 | |
| Length of the rail (mm) | 1300 | |
| Size of the three-jaw chuck (inch) | 13' | |
| Range of spindle speed (RPM) | 50-2000 | |
| Spindle speed control | Automatic | |
| Spindle bore (mm) | Φ60 | |
| Taper of spindle bore | MT6 | |
| Taper of spindle nose | A2-8 | |
| Adjustable stroke of carrier in X direction | 100mm | |
| Max. size of tool post | 25×25mm | |
| Stations of tool carrier | 4 position | |
| Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | |
| Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | |
| Motor power | 7.5KW | |
| Machine size | (L/W/H) (mm) | 2200/1520/1840 |
| Package size | | 2300/1620/2140 |
| Net weight | 2200KGS | |
Standard configuration:
| wireless key&mouse 1 set | diamond cutter 1 set inner |
| diamond cutter 1 set outer | special ordered soft jaws 1 set |
| high precision prob system 1 set | 4 station tool which can adjust X stroke |
| automatic lubrication system | cooling system(standard) |
| full cover safety door | tool case |
| training videos | -- |
Rim Repair Samples
