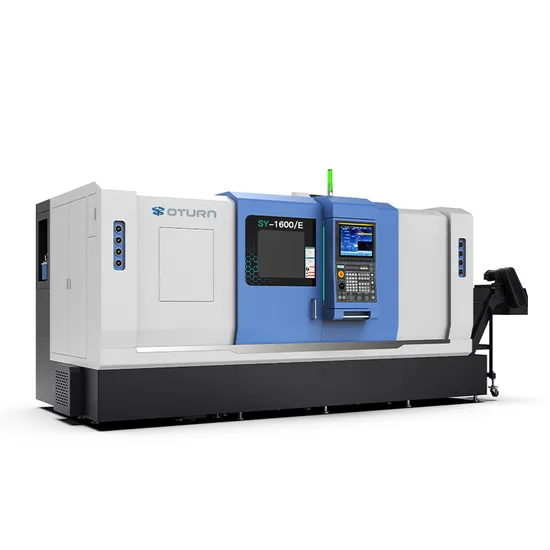

Oturncnc Esy1600 Heavy Duty Slant Bed CNC Lathe Machine/Turning Machine with CE

Product Description

Product Description
The machine adopts an optimized 30-degree stepped flat rail structure design, and has high precision, super rigidity and excellent cutting
stability. High-strength HT300 cast iron one-piece strong structure bed, the application of finite element analysis, the overall mechanical rigidity and stability are excellent, and can maintain long-term reliable precision, improve processing stability and tool life, stress relief treatment improves precision stability, The high-strength roller rail design structure, the transmission system adopts the screw pre-tension design to improve the rigid performance, and the simple and elegant appearance conforms to the trend of the trend.
Main features of this machine tool:
1. The spindle unit is an independent sleeve type. The spindle system runs at 2500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
2. High rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication. Product Parameters

	Name	Unit	SY1600/E
Travel	Max. upward rotation of bed surface	mm	Φ700
	Max. processing diameter	mm	Φ640
	Max. processing diameter on tool holder	mm	Φ350
	Max. processing length	mm	1460
Spindle Hydro cylinder Chuck	Spindle nose	type	A2-11
	Spindle maximum speed	rpm	2500
	Cylinder/Chuck	lnch	12″
	Spindle bore diameter	mm	Φ117
	Bar diameter	mm	Φ102
	Spindle motor power	kw	26
	Spindle motor torque (1:2)	Nm	496-706
X/Z axis feed	X/Z axis limit travel	mm	330/1540
	X/Z axis rail specifications	spes	45 pin roller
	X/Z axis screw specifications	mm	4012
	X/Z axis motor power	kw	2.9
	Positioning accuracy	mm	±0.005
	Repeatability	mm	±0.003
	X/Z axis rapid movement	m/min	24/24
Servo Tutter	Tool station	pcs	12T
	Outside diameter tool holder specifications	mm	25X25
	Inner diameter tool holder specifications	mm	Ф50
	Adjacent tool change time	sec	0.2
	Positioning accuracy	/	±2"
	Repeatability	/	±1"
Tail stock	Hydraulic tailstock	/	Hydraulic tail seat
	Max. travel of tailstock	mm	1300
	Tailstock sleeve tapered hole	type	Mohs 5#
	Tailstock sleeve diameter	mm	Ф100
	Sleeve stroke	mm	100
Mechanical Size	Overall dimensions (length x width x height) approx.	mm	4300*2110*2100
	Weight (approximately)	kg	8200
Other	Fluid tank volume	L	350
	Cooling water pump power	W	750
	Hydraulic unit box volume	L	50
	Hydraulic oil pump motor power	kw	1.5
	Lubricating oil tank volume	L	2
	Automatic lubrication pump motor power	W	50
