Standard CNC Drilling Machine for Plates and Flanges
| US$48,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TPD2012
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. Thickness of Workpiece
100mm
Morse Type
#4
Max. Drilling Diameter
50mm
Rotary Speed
120-560rpm
Max Feed Stroke
350mm
Motor Power
5.5kw
Qty.of Clamps
12
Clamping Force
7.5kn/Each
Pump Motor
2.2kw
Net Weight
5200kg
Transport Package
Plastic Film Winding with Wooden Cases
Specification
2000*1200mm
Trademark
Sunrise
Origin
China
HS Code
8462411900
Production Capacity
50set/Month
Product Description

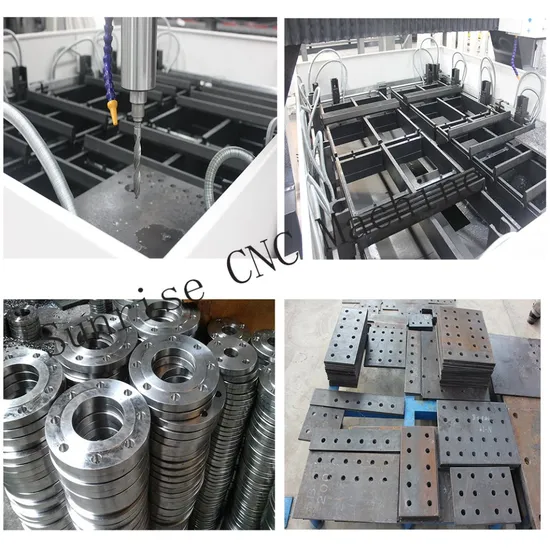

CNC Drilling Machine for Plate model TPD2012Applicable Industry:
This is special CNC machine for drilling plates and flanges, mainly used in steel structure, tower, bridge and other industries.
Product Feature 1. CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfering.
2. Machine is controlled by PLC & servo motor, ensure precision positioning .
3. The machine have 4 work area with individual reference, workpieces can be clamped by hydraulic clamps at any area for drilling.
4. Machine equips with computer for software, it can use Auto CAD drawing directly, it also can process NC file which generated by TEKLA.
5. Scrap cleaner can collect all iron scraps and cutting liquid which is recycling.
6. The key mechanical, hydraulic and electric parts are all famous brands.
7. Optimized integration design for complete machine, no foundation requirements.
| Working conditions: | ||
Working environment: | Working temperature: | -10ºC ~ 40ºC |
| Voltage: | 380V(Or some 420V), 50Hz, 3 Phase | |
| Fluctuation of voltage: | ±5-10% | |
| Air supply: | ≥0.5 MPa | |
Specifications:
| Model | TPD2012 | TPD2016 | TPD3016 | ||
| machine type | Gantry movable single spindle CNC drilling machine | ||||
| Max work piece size (L×W) | 2000×1200mm | 2000×1600mm | 3000×1600mm | ||
| Thickness of work piece | 5~100m If work piece is small size, it can be overlapped and processed at the same time. | ||||
| Height from table top to ground | 800mm | ||||
| Drill unit type | sliding table, servo control | ||||
| Clamp type | Hydraulic clamp with 12 clamps | ||||
| Drill head quantity | 1 | ||||
| Max drill diameter | Φ50mm | ||||
| Power of main motor | 5.5 kW | ||||
| Spindle speed | 120~560r/min (frequency control) | ||||
| Spindle vertical stoke (Z axis) | 350mm | ||||
| Drive mode of gantry longitudinal (X axis) | Guided by linear rolling guide; driven by AC servo motor and ball screw pairs. | ||||
| Servo motor power of X axis | 1.3 kW | ||||
| Power head lateral driving type (Y axis) | Guided by linear rolling guide; driven by AC servo motor and ball screw pairs. | ||||
| Servo motor power of Y axis | 1. 3 kW | ||||
| Servo motor power of Z axis | 0.85 kW | ||||
| Motor power of chip cleaner | 0.4 kW | ||||
| Motor power of cooling system | 0.42 kW | ||||
| Motor power of Hydraulic station | 2.2 kW | ||||
| Clamping type | Attach Morse 4# quick chuck and 3#, 2# reducing sleeve | ||||
| Electric control cabinet | With dustproof ventilating device and LENOVO computer | ||||
| Electric control type | MISTUBISHI PLC | ||||
| CNC axis quantity | 3 | ||||
| With function of CAD/CAM automatic generation | |||||
| with function of hole site memory (memory hole site if power off suddenly) and drill pause | |||||
| Total power | ≈12 kW | ||||
| Total weight | About 5200 | About 6200 | About 7200 | ||
| Overall dimension | 4.5×2.21×2.85 | 4.5×2.61×2.85 | 5.5×2.61×2.85 | ||
