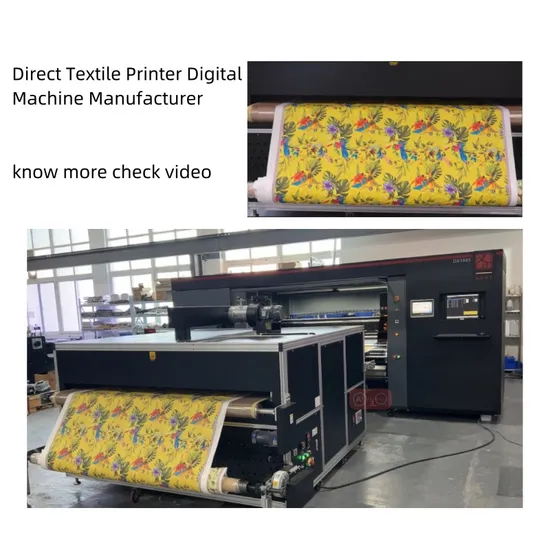

HPRT Direct Textile Printer Digital Inkjet Printing Machine 1.8m Belt Cotton Digital Fabric Printer DA188S
| US$225,000.00-300,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DA188S Tshirt Printing Machine
Printing Speed
600*600dpi: 900 m2/hr
Printing Width
1850
Resolution
600* 600/600* 1200/600* 1800/6002400 dpi
Specification
4680*2200* 2000mm
Trademark
HPRT
Origin
Xiamen
Product Description
HPRT Industrial Digital Inkjet Printer Textile Garment Tshirt Printing Machine
Full product line: direct to fabric, sublimation, Oval screen, DTG and so on
High-speed Conveying-belt Direct to Fabric Digital Textile Printer/Direct to fabric
High-speed Roll to Roll Dye Sublimation Digital Textile Printer/Sublimation
High-volume Direct to Garment Digital Textile Printer/DTG
High-volume Screen+Digital Integrated Textile Printer/DTG screen+digital
High-volume Hybrid Digital Textile Printer/ (Oval screen) hybrid digital printer
Digital Textile Printer Finished Product Display:
Specification:
| Model | DA188S |
| Type | Roll-to Roll digital textile printer |
| Structure | Scanning type roll to roll |
| Max. Print Width (mm) | 1850 |
| Max. Cloth Width (mm) | 1950 |
| Resolution (dpi) | 600* 600/600* 1200/600* 1800/6002400 |
| Max. Print Accuracy (dpi) | 2400 |
| Maximum Allowable Roll Diameter of Internal Cloth Feed Holder (mm) | Φ400 |
| Maximum Allowable Weight of Internal Cloth Feed Holder (kg) | 100 |
| Maximum Allowable Roll Diameter of External Cloth Feed Holder A (mm) | Φ1600 |
| Print Head Features | High-precision industrial print head/single channel/ variable point technology |
| Grayscale | 16 |
| Variable Ink Drop Size | 4~72pL |
| Print Speed (m2/hr) | 600*600dpi: 900 600* 1200dpi: 450 600* 1800dpi: 300 600* 2400dpi: 210 |
| Color Mode | 4-color mode: 1*4, 2*4, 3*4, 4*4 |
| 6-color mode: 1*6, 2*6,3*6, 4*6 | |
| 8-color mode: 1*8, 2*8,3*8, 4*8 | |
| Ink Type | Activity, acidity, coating, dispersion, high temperature dispersion |
| Ink Color | C,M,Y,K,0,B,Lk,FM |
| Print Media | Cotton, linen, silk, nylon, polyester, blended, elastic fabrics and new fiber woven and knitted fabrics |
| Ink Supply System and Degassing System | Automatic ink supply system, automatic degassing and automatic pressure system |
| Print Head Cleaning and Maintenance | Automatic cleaning and moisturizing system |
| Over High Detection and Correction | Automatic detection system of over-high media, adjustable system of conveying-belt correction |
| Operating Interface | Dual touch screen (ront and back) |
| PC Operating System and Hardware | Operating system: windows 7 and above |
| CPU: Core i7 and above | |
| HD: 500GB, 1G graphics | |
| RAM: 16GB | |
| Supported Image Type | JPG/TIFF/BMP/others |
| Color Mode | CMYK/RGB |
| Printing Driver | HPRT server |
| RIP System | HPRT print, open |
| Dimensions: L*W*H (mm) | 4680*2200* 2000 |
| Weight (kg) | 4000 |
| Power Supply | Printer: AC380V+10%,three- phase five wire system| 40A (20KW)| 50Hz/60Hz |
| Compressed Air Supply | 0.6Mpa|3.5m/hr (dry, no oil or water vapor) |
| Operating Humidity | 45- 70% (non-condensing) |
| Drying Option | Electric heating/steam heating/natural gas heating and other drying rooms |
| Approval Agency | OEKO- TEX,AATCC |
