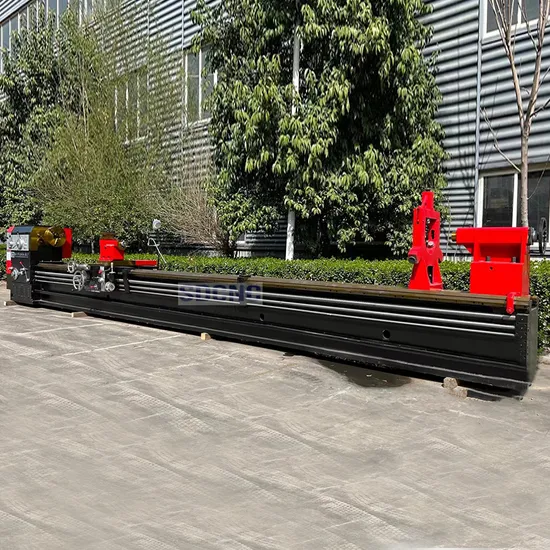

Cw61100 Hot Sale Large Spindle Bore Gap Bed Heavy Duty Manual Lathe
| US$34,500.00-36,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW61100
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Swing Over Bed
1000mm
Swing Over Cross Slide
610mm
Guideway Width
755mm
Max. Load Capacity
6t
Transport Package
Wood Packaging
Specification
2000*1800*4600
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2000.00cm * 1800.00cm * 4600.00cm
Package Gross Weight
9600.000kg
Product Description
One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Headstock gears hardened and ground to achieve precision and low noise Product Parameters
Product main technical specification:
| Specification | Unir | CW61100L |
| Swing over bed | mm | 1000 |
| Swing over cross slide | mm | 610 |
| Distance between centers | mm | 1500/2000/3000/ 4000/5000/6000 |
| Guideway width | mm | 755 |
| Max. load capacity | T | 6 |
| Spindle bore | mm | 130 |
| Spindle bore taper | - | Metric φ140/MT6 |
| Spindle nose type | - | A2-15 |
| Spindle speed steps | - | FWD. 21 steps |
| Spindle speed range | rpm | 3.15-315 |
| Chuck | mm | φ1000 4-jaw manual |
| Turret/tool post | - | Manual turret 4 position |
| Tool shank size | mm | 45 x 45 |
| X axis travel | mm | 520 |
| Z axis travel | mm | 1350/1850/2850/3850/4850/5850 |
| X axis feed grade/range | mm/r | 56/0.05-6 |
| Z axis feed grade/range | mm/r | 56/0.1-12 |
| X axis rapid traverse | mm/min | 1870 |
| Z axis rapid traverse | mm/min | 3740 |
| Metric thread grade/range | mm | 44/1-120 |
| Inch thread grade/range | T.P.I | 31/28-3/8 |
| Module thread grade/range | mm | 45/0.5-60 |
| DP thread grade/range | D.P. | 30/56-1 |
| Tailstock quill diameter | mm | φ160 |
| Tailstock quill taper | - | MT6 |
| Tailstock quill travel | mm | 300 |
| Main spindle motor | kW | 22 |
| Rapid traverse motor | kW | 1.5 |
| Coolant pump motor | kW | 0.125 |
| Width x Height | mm | 2000 x 1800 |
| Length | mm | 4600/5100/6100/ 7100/8100/9100 |
| Net weight | T | 9.6/10.1/10.7/11.7/12.7/13.7 |
