Wafer Check Valve

Product Description

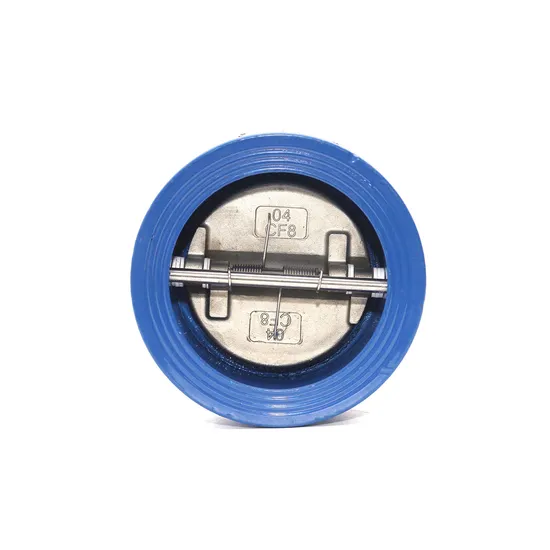

H76 Wafer Check Valve Product Show
Product Description
Purpose
This valve is used to prevent the medium in the pipeline from backflow and features a small volume.
Basic Information

Product Name			H76 Wafer Check Valve
Size			DN40-DN600
Pressure			1.0MPA ,1.6MPa, 2.5MPa, 150LB,
Working Temperature			<100ºC
Medium			Water

Parts Material
Product Features

1.GGG40/50 Ductile Iron Cast steel or Stainless steel body allows high impact and streching resistance

2.With Full Bore design, ensures minimized pressure loss and increased energy efficiency

3.Maintenance free valve design

4. Better spring .

5.Stainless steel stem with threads for high strength

6.Maintenance-free and corrosion-resistant multi stem O-rings ensures higher durability

Parts Material

Parts Name		Material				Parts Name		Material
Body		Ductile Iron/Cast Steel /Stainless Steel				Spring		Stainless steel
Disc		Cast Iron/Stainless steel/Cast Steel				Sealing ring		Rubber/Alloy Steel/Stainless Steel
Stem		Stainless steel
All the Material Can be Replaced as Customers Requirement

Drawing
Main Dimensions

DN	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	43	43	46	64	64	70	76	89	114	114	127	140	152	152	178
D	55	65	82	95	118	146	171	225	266	312	362	412	452	507	626

More Pictures and Package
Our vlave is packed with export wooden case. We can delivery by sea, by air or combined delivery method.
Quality Control
For Finish Products We procures advanced detection equipment and type testing platform for nondestructive testing, spectrum analysis, with a 100% success rate for physical and chemical properties .100% Final Test During Packing. For Semi Finish Products The quality of each semi-finished product is strictly controlled: we do adhesion, coating thickness, rubber hardness Test
Certificates
We have most of the certificates needed on the markets:
Company Profile
Related Products
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory Located In Tianjin, China.
Q: What's your product range?
A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.
