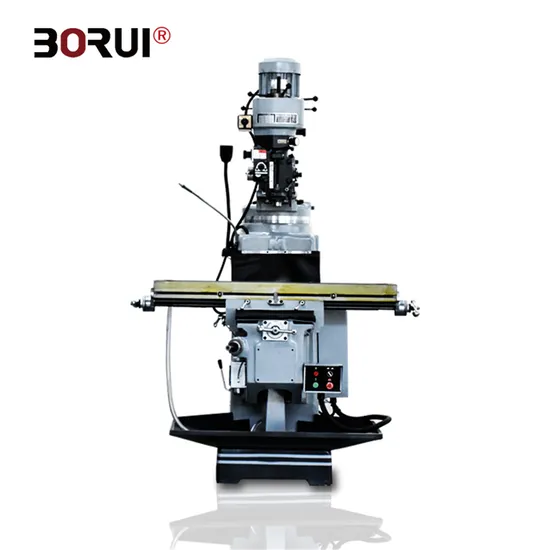

X6325D High Speed Portable Vertical Turret Table for Milling Machine with Collet Chuck Dviding Head

Product Description

X6325D High Speed Portable Vertical Turret Table For Milling Machine With Collet Chuck Dviding Head
Product Description
The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.

The main specification :

Item	Unit	X6325D
Table size	mm	254x1270(10''x50'') 254x1370(10''x54'')
Longitudinal travel	mm	810(32'')914(36'')
Cross travel	mm	420(161/2'')
Vertical travel	mm	400(153/4'')
Spindle taper		ISO40
Spindle travel	mm	127(5'')150(6'')127(5'')
Spindle speed	Rpm	shift with out grade: 70-3600
		shift by grade :8-16(steps) 70-3600
Power dial feed	rpm	0.04(0.0016'')/0.08(0.0032'')0.13(0.006")
Main motor	kw	3.75kw/5hp
Head Swivel (Right-Left)		90°
Head Swivel (Front-Back)		45°
Single milers package	mm	1650*1270*2080
Two milers package	mm	1650*1790*2170
Weight	kg	1590

Standard Accessories:
Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Optional Accessories: Power feed
3-axis Digital Reading
Machine Vise
Milling Chuck
Variable milling head
Air drawbar
Dividing Head
Rotary TablKits
The main feature :
1.Robust construction and heavy duty design.
2.The machine body is made of Meehanite cast iron.
3.The milling head is made of SCM-21.Imported from TaiWan.
4.The milling head can swing 90°right and left side,45°front and back side.
5.The ram can swing 180°horizontally.
6.The working table and guide rail are heating treated and precision grinding.
7.DRO and dividing head are for option.
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
