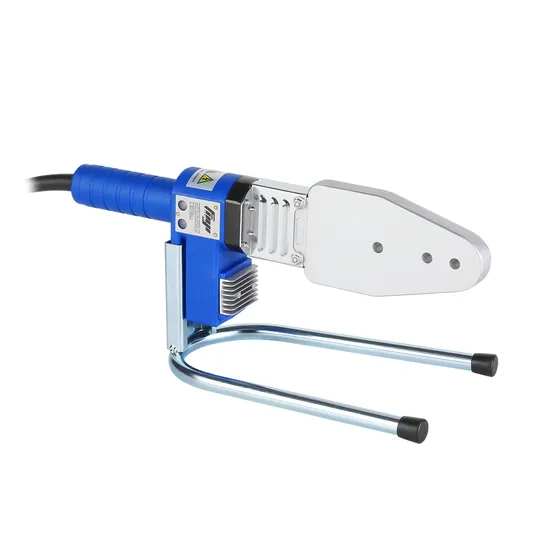

260° C 800W 20-63mm Polifusion PPR Socket Fusion Welder Fusion Welding Device Welding Equipment

Product Description

63MM PPR Welding Machine
Item NO.: FYFBYM63
Heating Element: Electrical Circuit Board
Brand Name: FUYI TOOLS /OEM
Manul Socket Fusion is the most poplar method to join a pipe and fitting together. Socket fusion machines are the preferred equipment on jobsites becuase they are capable of fusing all brands of polypropylene pipes and fittings, including PP-R (Polypropylene Random Copolymer) and the newest generation PP-RCT(Polypropyene Random Copolymer Crystalline Temperature). These materials deliver the same leak-free, corrosion-free pipe systems as other thermoplastic pipe systems that have been used successfully for decades.
FUYI TOOLS PPR WELDING MACHINES ADVANTAGES:
1. Using algorithm PID Microcontroller , temperature control system can react faster to the external temperature fluctuations.
2. Independent research and development automatic testing line to insure the temperature tolerance ≤ 2°C.
3. There is circuit board research and development department in our factory. There are STM lines in our factory.
4. Sockets with Japanese Daikin PTFE coating , for longer lifetime and great fusion effect.
5.In case the intelligent control device failure, there is the warning temperature. The warning temperature is based on setting temperature plus 30°C. ( For example , if your setting temperature is 260°C , the warning temperature is 290°C).
FUYI TOOLS SOCKET FUSION WELDING MACHINE TECHNICAL FEATURES:

Rated Voltage:	110V/220V
Rated Frequency:	50/60Hz
Rated Power:	800W
Working Temp:	260°C
Temp.Tolerance:	≤2°C
Warning Temp:	Set Temperature + 30°C
Environment Temperature:	-5°C-45°C
Working Range Φ mm:	20,25,32,40,50,63
Suit Material :	PP-R
Net Weight(Set):	7.96KGS
Packing:	1PC/Poly Bag , 2PCS/CTN
Rubber Cable:	VDE standard 1²1.5meter
OEM	Available
N.W/Cartons:	15.62KGS
G.W/Cartons:	16.62KGS
Cartons Size:	47.0X27.0X26.0CM

20-63mm Socket Fusion Welding Machine Data:

External diameter (mm)	Melting depth(mm)		Heating time(s)	Processing time (s)	Cooling time(min)
	A	B
16	14.5	16.0	4	4	2
20	14.5	15.5	5	4	2
25	15.0	16.5	7	4	2
32	16.5	18.5	8	6	4
40	17.9	17.9	12	6	4
50	20	27	24	6	6
63	24	28	30	8	8

20-63mm Socket Fusion Welding Machine Kit as the photo
1.1PC Socket Fusion Welding Machine
2.1PC Floor Stand
3.1PC Metal Case
4.2PCS Stainess Steel Bolts , 1PC Hex Key Wrench , 1PC Reinforced Wrench
5.1PC Table Mounting Clamp
6.6PCS Grey Sockets (D20, D25,D32,D40,D50, D63)

Socket Fusion Welding Machine explosion chat for your refenrence
1.Nylon Double Color Handles
2.Radiator
3.Insulation Plate
4.Insulation Patch
5.Insulation Plate
6.Heating Plate
7.Insulation Connector
8.U-Type Support
Factory Photos
FAQ
Q1. Are you manufacturer or trading company ?
A: We are manufacturer. Our factory Hangzhou Fuyi Tools Co.,Ltd professional produce socket fusion welding machines, sockets and the tools for PPR/HDPE pipes and fittings. You can check our company name in China government website. Or by checking FUYI TOOLS brand in China trademark website, after checking you will find FUYI TOOLS is really the manufacturer.
Q2. What about the lead time for socket fusion welding machines ?
A. If we have stock , 2 days can delivery out. Mass production time about 15 days.
Q3. Can you design and produce special socket fusion machines according to customer requirement ?
A: Yes , we have design and technical team. The designers always use Auto CAD , Keil uVision5 , Altium Designer etc and 3D printer, so we can design or according to your drawing to make samples and producing.
Q4. Do you have any MOQ for OEM orders on PPR Welding Machines ?
A: Our factory have laser machine , we can laser your logo on the welding machine. So without any requirement on quantities.

Q5: Do you offer guarantee for socket fuson welding machines ?
A: Yes, we provide standard 3 years warranty, not including quick-worn parts, still provide service after warranty.
FUYI TOOLS SOCKET FUSION WELDING MACHINES CERTIFICATION
