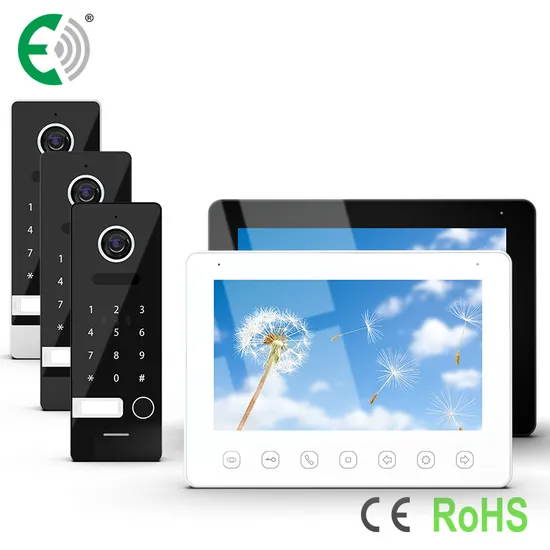

4-Wire 1080P 7 Inches Home Security Video Door Phone Intercom Support Password Unlock

Product Description

4-WIRE 1080P 7 Inches Home Security Video Door Phone Intercom support Password Unlock
Description: Monitor: 1.1080P 7" video door phone with touch buttons
2.Customize Melody & Voice message
3.Button light background
4.Support max.128G SD Card & flash max.100pcs picture
5.Lock control / Broadcast / Calendar / Alarm clock / No disturb
6.Monitor doorbell or CCTV cameras
7.Door-call transfers to other monitors
8.Make calls between monitors
9.Monitor listening to another monitor
10.Simple DVR motion detection/Photo frame/Multimedia manager
11.Auto leave message function
12.DC15V/0.8A
13.Dimension:188*136*22mm
Supports:
*2 outdoor doorbells+4 indoor monitors+2 CCTV cameras
*1 outdoor doorbell+4 indoor monitors+3 CCTV cameras
Doorbell:
1.AHD 1080P Outdoor Panel
2.Wide viewing angle
3.Em marine 125KHZ (ID) and password unlock
4.Support weigand 26 reader
5.Metal case & IP66 waterproof
6.4 wires connection
7.Surface/corner construction
8.Operating temperature: - 30 ºC to + 60ºC
9.Power: 10- 15V
10.Dimension: 154*55*21mm
Specification: Monitors:

Screen	Color TFT digital screen
Screen size	7''
Outdoor panel unlock release	Supports
Indoor monitor unlock release	Supports
Definition	1024*600
Type of signal	CVBS/1080P
Connection	4 Wires
Maximum length of line connection	100m
Video channels quantity	4
Additional monitors quantity	3
Memory block connection	Built in card-reader for micro SD card
Image capture	Supports
DVR with both video and audio	Supports
Power	DC15V/0.8A
Dimension	188x136x22mm

Doorbells:

Subscribers quantity	1
Camera	1/3'' Color CMOS
Angle of view	110°
Protection Standard	IP66
Type of signal	AHD/CVBS/CVI/TVI (Optional)
Resolution	800TVL/1080P(Optional)
Construction	Surface / 30° angled mounting
Operating temperature	- 30 ºC to + 60ºC
Connection	4 wires
Lock control	Supports
Power	DC10-15V
Card unlock	Em marine (ID) / Mifare (IC)
Compatible working	WG26
Dimension	154*55*21mm

All our models are passed CE, RoHS, REACH certificates, and with 2 years warranty, you are welcome to visit our factory or take samples to test our quality. website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
