380V/415V Double Rotary Sheeter Machine Housheng Factory Sales
| US$130,000.00-180,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HSC 1500S 1700S 1900S
Classification
Double-blade Cutter
Driven Type
Electric
Type
Industrial Cutter
Blade Material
Tungsten Steel Germany Material
Computerized
Computerized
Max. Speed
400 Cpm
Cutting Paper Material
Coated Paper, Kraft Paper, Cardboard, Carton Paper
Roll Number
2 Rolls, 4 Rolls
Voltage
380VAC, 50Hz, 3p or Customized
Paper Gram
150-1000GSM
Knife Material
Tungsten Steel Germany Material
Brake
Re Brake
PLC
Siemens
Servo System
Emerson
Slitting
Maxcess / Khemed
Transport Package
Pallet
Specification
1500 / 1700 / 1900
Trademark
HOUSENG
Origin
Made in China
HS Code
84411000
Production Capacity
25
Packaging & Delivery
Package Size
1700.00cm * 590.00cm * 260.00cm
Package Gross Weight
26500.000kg
Product Description
Description: 1.HSC-S series double knife sheeter adopts advanced design of synchronic rotary which are driven directly by high power AC servo motor with high accuracy and clean cut.2.And using our patent with embedded cutting head design,that its cutting cross profile is straight and not pulling out fibers, this is key point to eliminate hairs of paper. Widely used for cutting cardboard,coated paper ,Kraft paper,culture paper ,art paper, duplex,packaging paper etc up to 1000gsm.
3.HOUSENG machine is dedicated to produce sheet cutter , Products are well used and verified by almost all top cosmetics and pharmaceutical packaging customers, and promise their is no risk for long term running of your products in future. Consider this kind of machine to improve quality and save cost, To improve efficiency .
Application: Cutting reel (roll paper) into sheets
Technicals:
According to HOUSENG MACHINE, are mainly used for paper cutting in Paper Mill, Printing House and etc.
Mainly process including: Unwinding-Feeding-Cutting-Conveying-Collecting .
Features:
| Cutting Unit The double KNIFE cutting unit has a synchronic rotary cutting knife like scissors on the material to make a smooth and accurate cutting for paper from 150gsm and up to 1000gsm.The knife roller is using the most powerful driver from UK CT. Precision rotary sheeter groove is processed by imported advance processing center with high accuracy and stability, High quality gear box ,using no clearance design gear. which guarantees the stability of the tool body during high-speed operation, completely solve the problem of scratches and light spots, after cutting the edge is neat and smooth, clean cut. | |
| Double Arm Unwind stand with web tension controls and pneumatic brake units. Adopt Italian RE control system and pneumatic components are adopted to guarantee the stable operation of the brake control system and the accuracy of every aerodynamic action. | |

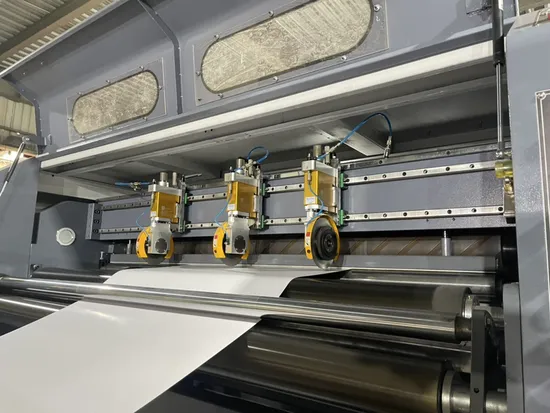

| Three sets of MAXCESS pneumatic slitting knife ensure stable and clean slitting . High rigid tool post article can be applied to 400cut/min speed environment, improve the production efficiency and ensure the material quality stability. | |
| Electric control part Adopt German imports of Siemens PLC and UK OF CT servo drive control system, make the operation more convenient, automation, cutting length, number and the total number of finished products, etc., can be directly in touch screen input. High efficiency and energy saving of high power CT servo drive rotary knife shaft, and cooperate with the energy storage tank, effectively reduce electricity consumption, improve the efficiency, reduce the production cost. | |
| Transportation parts Patent device-A precision structure can adjust the synchronous deceleration wheel, easy to operate, it is effective to protect surface of paper, so there will be no scratching on surface, and also will not have the facula whenever speed is high or low . | |
| The delivery section using automatic set paper equipment (Jogger and vibrating devices) Lift stacked set paper , the paper stack to a considerable height, which is automatically dropped. The stacker table has three sides shake finishing functions, and 1 unit Fixed plate which are vibrating and positioned laterally to each pallet, while in front of the pallet there is a jogger. 2 side plates are placed on a traversal support and can be positioned where necessary. the side of the motor to drive the paper on both sides by high-quality pneumatic by hand wheel to adjust the amplitude of the paper to improve the simplicity and safety of the operation. | |
| Reject Gate In the end of the first conveyor belt is placed a sheet rejecting device, which can be inserted by the operator in the starting phase for the first sheets. The start of rejecting device is manual by pushing the ON.OFF button to act the air cylinder of reject gate. | |
| The new Anti curvature device (2 set de-curl ) Effectively remove the curl of the roll to make the paper more flat, more conducive the paper roll tension stability. |
Main Technical Parameter
| Model | HSC-1500S/1700S/1900S |
| Type of cutting | Twin knife, Top blade and bottom blade rotary cutting |
| Paper weight range | 150-1000 GSM |
| Reel stand load capacity: | 2.5T (option 3T-4T) |
| Reel diameter | Max 1800mm (71") |
| Cutting Width | Max 1500/1700/1900mm (66.9") |
| Cut off length range | Min.400-Max.1650 mm |
| Cutting accuracy | ±0.15mm |
| Max. Speed of cutting | 400cuts/min |
| Max. Cutting speed | 300meter/min |
| Delivery height | 1700mm(incl.pallet) |
| Voltage | AC380V/220Vx50Hz 3ph or customized |
| Total power | 107kw |
| Output | The real output depends on the material, and the weight of the paper, and right operate process |
About US:
| ZHEJIANG HAOSHENG PRINTING MACHINERY CO.,LTD. HOUSENG is a leading company in china to produce sell sheet cutting machine /reel to sheet paper ,HOUSENG on extensive experience and fast develop speed in this field. Start from 2001, high performance models have evolved thanks to the commitment and know-how of our employees, intensive research and development, and the steady exchange with our customers on their needs and ideas . In the light of such policies as adapting to market demands ,basing on science and technology and seeking market share through quality ,HOUSENG aims to reduce cost and market competition ,provide better services for customer at home and abroad, and enable customers to obtain greater benefits. |
