Lenovo Thinksystem dB610s San Switch High-Speed Fiber Switch with 48 Ports Network Switch

Product Description

Product Description The Lenovo ThinkSystem DB610S 32Gb FC SAN Switch provides exceptional price/performance value by delivering market-leading 32 Gb Gen 6 Fibre Channel technology and combining flexibility, simplicity, and enterprise-class functionality to meet the demands of growing flash-based storage environments.
Designed to enable maximum flexibility and reliability, the ThinkSystem DB610S FC SAN Switch is a compact 1U rack-mount switch that offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.
Product Parameters

Component	Specification
Machine type	6415
Form factor	Standalone or 1U rack mount
Ports	48x SFP+ physical ports 4x QSFP+ physical ports The number of ports that are activated is model dependent and can be upgraded with additional licenses - see the Port activation licenses section.
Media types	128 Gb (4x 32 Gb) FC QSFP+: short wavelength (SWL), long wavelength (LWL) 4x 16 Gb FC QSFP+: SWL 32 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL) 16 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL) 10 Gb FC SFP+: SWL, LWL
Port speeds	128 Gb (4x 32 Gb) FC SWL QSFP+: 128 Gbps, 4x 32 Gbps, or 4x 16 Gbps 128 Gb (4x 32 Gb) FC LWL QSFP+: 128 Gbps or 4x 32 Gbps fixed 4x 16 Gb FC QSFP+: 4x 16/8/4 Gbps auto-sensing 32 Gb FC SFP+: 32/16/8 Gbps auto-sensing 16 Gb FC SFP+: 16/8/4 Gbps auto-sensing 10 Gb FC SFP+: 10 Gbps fixed Note: With Fabric OS 9.0 and later, the 4 Gbps port speed is supported only on the F_Port and N_Port port types.
FC port types	Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, EX_Port (Requires an optional Integrated Routing License), D_Port (Diagnostic Port) Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types	Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only)
Classes of service	Class 2, Class 3, Class F (inter-switch frames)
Standard features	Full Fabric mode, Access Gateway, Advanced Zoning, Fabric Services, 10 Gb FC, Adaptive Networking, Advanced Diagnostic Tools, Virtual Fabrics, In-flight Compression, In-flight Encryption
Optional features	Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric) or Mainframe Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric, FICON CUP), Integrated Routing
Performance	Non-blocking architecture with wire-speed forwarding of traffic: 4GFC: 4.25 Gbit/sec line speed, full duplex 8GFC: 8.5 Gbit/sec line speed, full duplex 10GFC: 10.51875 Gbit/sec line speed, full duplex 16GFC: 14.025 Gbit/sec line speed, full duplex 32GFC: 28.05 Gbit/sec line speed, full duplex 128GFCp: 4x 28.05 Gbit/sec line speed, full duplex Aggregated throughput: 2 Tbps Latency for locally switched ports is < 780 ns (including FEC); compression is 1 μs per node
Scalability	Maximum number of switches in the fabric: 239 Maximum frame size: 2,112-byte payload Maximum number of frame buffers per switch: 15,360 Maximum number of ports per ISL trunk: 8x SFP+ or 2x QSFP+ (Up to 256 Gbps; ISL Trunking license is included in the Enterprise or Mainframe Enterprise bundle)

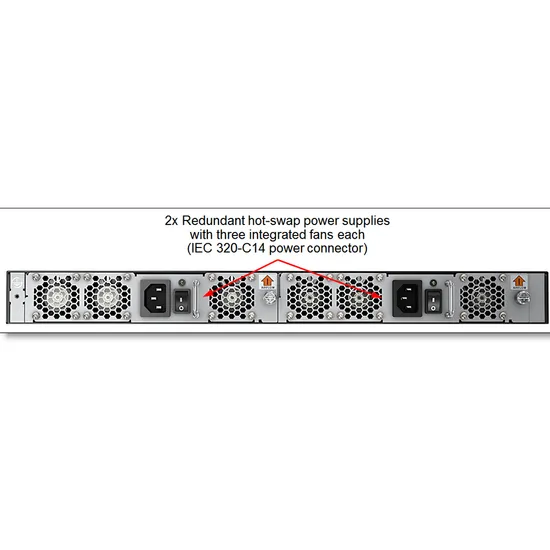

Cooling	Three fans built into each power supply; N+N cooling redundancy with two power supplies. Non-port to port side airflow.
Power supply	Two redundant hot-swap 250 W AC (100 - 240 V) power supplies (IEC 320-C14 connector).
Hot-swap parts	SFP+/QSFP+ transceivers, power supplies with fans.
Management ports	One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (Mini-USB Models HC7, HC8, HC9; RJ-45 for all other models); one USB port (for additional firmware/log/configuration files storage).
Management interfaces	Web-based GUI (Web Tools); Command Line Interface (CLI); SMI-S; SNMP; REST API. Optional Brocade SANnav Management Portal and SANnav Global View.
Security features	Secure Socket Layer (SSL); Secure Shell (SSH); Secure Copy (SCP); Secure FTP (SFTP); user level security, Role-based Access Control (RBAC); LDAP, RADIUS, and TACACS+ authentication; access control lists (ACLs)
Hardware warranty	One-year customer-replaceable unit limited warranty with 9x5 next business day parts delivered.
Service and support	Optional service upgrades are available through Lenovo Services: 9x5 next business day onsite response, 24x7 2-hour or 4-hour onsite response, 24x7 6-hour or 24-hour committed service repair, up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions, and Basic Hardware Installation Services.
Firmware entitlement	Models HC7, HC8, HC9: One year of firmware entitlement Firmware entitlement extension licenses for Models HC7, HC8, HC9 are included in the warranty service upgrades.
Dimensions	Height: 44 mm (1.7 in.); width: 440 mm (17.3 in.); depth: 356 mm (14.0 in.)
Weight	Empty: 7.7 kg (17.0 lb); Fully configured: 8.5 kg (18.8 lb).
