High Intensity Lifting Salvage Boat Pneumatic Rubber Airbag Ship Rubber Airbag

Product Description

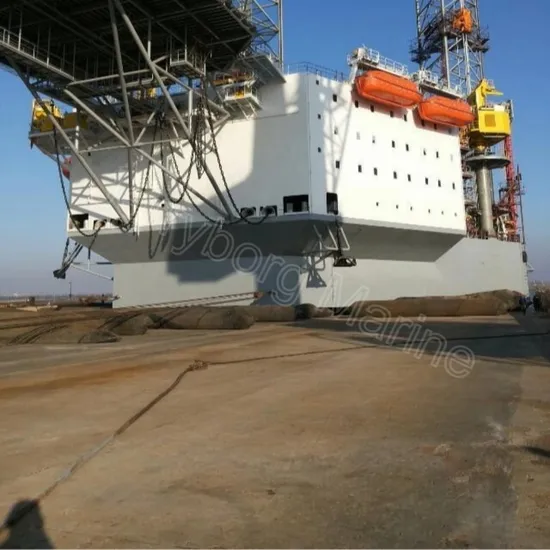

Detailed Photos Marine Airbag for ship launching have the best designed structure which consists of three different functional membranes in rubberlayers.1) Outer Rubber LayerThe outer rubber layer that covers the outside of marine airbag to protect under layers from abrasion and other external forces.This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.2) Inner Rubber Layer The inner rubber layer seals pressurized air inside marine airbags.3) Synthetic-Tire-Cord Layer as ReinforcementThe reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to holdthe internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.
Product Description 2.special attention when use airbags
1) Strictly control the use of pressure 2) Surface contact with the air bag cannot have sharply pointed a blur, prevent prick the airbag 3) Try to avoid air bag length direction of distortion 4) Long time not to use or repaired airbag, pressure test is required before using again; Often use airbags,test once a year. 5) Drag the airbag on the ground balloon is prohibited Product Parameters 3. Performance Calculation Principle of Airbags
The approximate bearing capacity can be calculated as follows:F=PSS=π x (D1-D2)/2Mark:F: Bearing capacityP: Inner pressureS: Contact areaD1: Diameter of airbags when free of loatD2: Working height of airbags when loaded
Installation Instructions Working pressure:

Type	D=0.8m	D=1.0m	D=1.2m	D=1.5m	D=1.8m	D=2.0m
3 layers	0.13MPa	0.10MPa	0.09MPa	0.07MPa	0.06MPa	0.05MPa
4 layers	0.17MPa	0.13MPa	0.11MPa	0.09MPa	0.08MPa	0.07MPa
5 layers	0.21MPa	0.17MPa	0.14MPa	0.11MPa	0.09MPa	0.08MPa
6 layers	0.25MPa	0.20MPa	0.17MPa	0.13MPa	0.11MPa	0.10MP
