Touch Panel Control Powerful Coolant System Automatic Turret Tool Grinding Machine
| US$9,000.00-9,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WG-150
Type
Tool Grinding Machine
Processing Object
Mould
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Punch Press Tool Grinding Machine
Voltage
380V
Table Motor
0.55 Kw
Spindle Motor
2.2 Kw
Cooling Motor
0.12kw
Maximum Grinding Diameter
200mm
Weight of Machine
600kg
Transport Package
Export Wooden Box
Specification
820X820X1810mm
Trademark
RSM
Origin
China
Production Capacity
10-20sets/Month
Product Description
Main Feature:01. Automatic sharpening(Automatic tool setting, automatic removal).
02. PLC control, automatically complete the grinding process of rough grinding, fine grinding, polishing, etc.
03. Grinding accuracy: flatness±0.01MM.

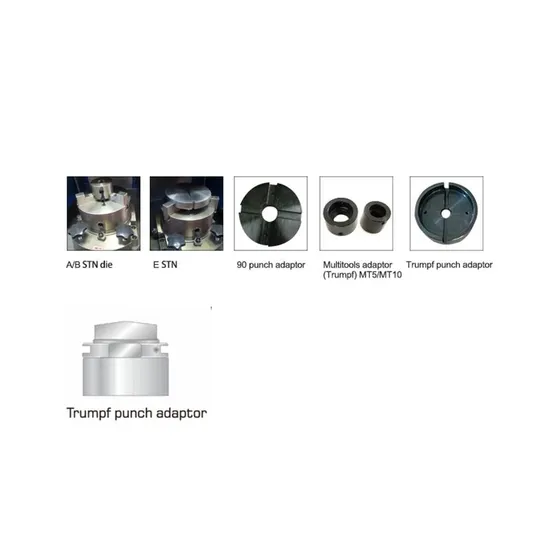

04. The upper mold of AMADA 85 series AB station only needs to remove the pipe, and then the chuck can be installed for sharpening.
05. Automatic lubrication system.
06. Automatic cooling system(Prevent tool grinding and annealing).
07. Automatic liquid level detection system(Automatically alarm and stop when the coolant is lacking to prevent tool grinding and annealing).
08. Automatic filtration system(Filter cotton can be washed and reused).
09. Safety door protection and alarm function.
10. Grinding overload protection system.
11. Spindle upper limit alarm function.
12. Emergency stop alarm function.
13. Interrupt return function.
14. Exhause system helps trap remaining swarf.
Parameter:
| Name | WG-150 |
| Voltage | AC380V, 50HZ |
| Table Motor & Rotating | 0.55 KW, 60 RPM |
| Motor of Rotating Table | 0.100KW, 1440 RPM |
| Spindle Motor & Rotating | 2.2 KW,3000RPM |
| Cooling Motor | 0.12KW |
| Maximum Grinding Diameter | Ø200 |
| Maximum Grinding | 1mm |
| Maximum Grinding Stroke | 250mm |
| The diameter of Grinding Wheel | CBN Ø150 |
| Grinding Range | 0.001-0.02mm |
| Weight of Machine | 600KG |
FAQ
1.How many models of grinding machine are there?
A: We have 3 models. RG-160;WG-150;IS-160
2.Which brands of molds are suitable for?
A: Suitable for Amada,Murata and Trumph.
3.How can I choose the right fixture?
A: As each brand has different mold sizes, you can contact us.
