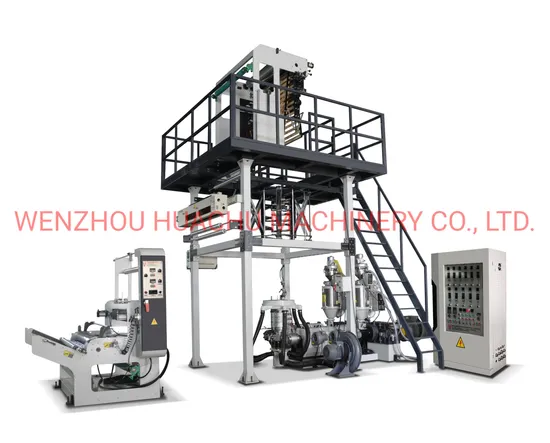

HDPE LDPE ABA 1000mmthree Layers Extruder Plastic Agricultural Film Blowing Machine

Product Description

Product Description



Machine detailes:
Technology Parameter

Model	ABA 55X55X1300MM	ABA 60X70X1600MM	ABA 75X75X2300MM
Suitable material	LDPE, LLDPE	HDPE.LLDPE,LDPE	HDPE LDPE LLDPE
Diameter of screw	Φ 55X55	Φ60X70	Φ75X75
L/D	32:1	32:1	LD:0.04-0.2MM
Maximum width of film(mm)	1200	1500	2200
Thickness of film(mm)	HD: 0.01-0.06MM LD:0.03-0.1MM	HD: 0.01-0.06MM LD:0.03-0.1MM	2200MM
Max.Output(kg/h)	200	280	350
Driving motor	30KW X 30KW	30KW X 37KW	45KW X 45KW
Weight(T)	6	7.8	9

It is used for blowing the plastic laminated film of low density polyethylene(LDPE), high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc. ABA Double-Layer Common-Extruding Film Blowing Machine
Use:
It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.

Description
1. Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.
Optional equipment:
1). Auto load
2). Air compressor
3). Special die
4). Die rotary device
5). Bouble sides winder
6). Up and down
Product Parameters

--------------------------------------------------------------------------------------------------------------------------------------
ABA (HD/LDPE) Film Blowing Machine Performance and Characteristics:
The machinge body is channel steel frame traction frequency friction,with single rolling friction,lift up and down which is suitable for blowing high-low pressure polyethylene industral fiml and agricultural film.
ABA extrusion film blowing machine ,we can design different size according to customer's request.
Company Profile

We are Taiwan Type High Speed Blown Film Machine suppliers/manufacturers from china factory . We can produce the Taiwan Type High Speed Blown Film Machine according to the client's requirement. We are always try our best to become the good Taiwan Type High Speed Blown Film Machine, film blowing machine manufacturers/suppliers and welcome the customer from all over the world to contact with us. Detailed Photos

Packaging & Shipping


FAQ
A. When your company was found?
B. our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight.
Delivery time: Standard will be in 30-40 working days
A.What Technical Support we can get if order machines
B.We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.
