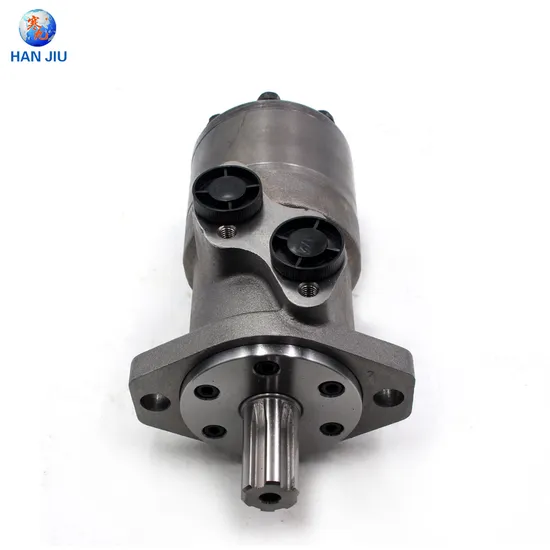

Hydraulic Orbit Motor BMP for Winch

Product Description

Hydraulic Orbit Motor BMP For Winch
Introduction:
Hanjiu Hydraulic, as a professional manufacturer of hydraulic products, mainly produce and export hydraulic orbital motors, gear motor and steering units. We service the walking, steering, power transmission and lifting systems. From big to small, our motors displacement from 50ml/r to 1000ml/r. All interchangeable with Dan foss, Char lynn, M+S series.

Features:
1. Shaft groove distributes flow, simple and compact structure, high accuracy of flow distributing
2. Stator-rotor of toothed shape, high mechanical efficiency, longer working lifetime under high pressure
3. Touching-ball bearing of coupled-angle, bear higher loading in both radial and axial directions, small friction force, high mechanical efficiency

Main Specifications:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type BMP BMPH BMPW 36 BMP BMPH BMPW 50 BMP BMPH BMPW 80 BMP BMPH BMPW 100 BMP BMPH BMPW 125 BMP BMPH BMPW 160 BMP BMPH BMPW 200 BMP BMPH BMPW 250 BMP BMPH BMPW 315 BMP BMPH BMPW 400 BMP BMPH BMPW 500 Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5 Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120 int. 1650 1450 960 770 615 475 385 310 240 190 150 Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385 int. 76 128 186 227 290 370 440 460 555 525 560 peak 96 148 218 264 360 434 540 550 650 680 680 Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5 int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6 Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6 int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9 peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12 Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60 int. 60 75 75 75 75 75 75 75 75 75 75 Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8

Technical data for BMP with 31.75 and 32 shaftt:

Type BMP BMPH 36 BMP BMPH 50 BMP BMPH 80 BMP BMPH 100 BMP BMPH 125 BMP BMPH 160 BMP BMPH 200 BMP BMPH 250 BMP BMPH 315 BMP BMPH 400 BMP BMPH 500 Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5 Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120 int. 1650 1450 960 770 615 475 385 310 240 190 150 Max. torque (N·m) cont. 55 100 146 182 236 302 360 460 475 490 430 int. 76 128 186 227 290 370 440 570 555 580 560 peak 96 148 218 264 360 434 540 670 840 840 780 Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 6 int. 11.5 12 12 13 12 12 12 10.5 8.5 7 7 Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 14 12 9.5 7 int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 14 11.5 9 peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 13 Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60 int. 60 75 75 75 75 75 75 75 75 75 75 Weight (kg) 5.6 6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8

* Continuous pressure:Max.value of operating motor continuously. * Intermittent pressure:Max.value of operating motor in 6 seconds per minute . * Peak pressure:Max.value of operating motor in 0.6 second per minute.

Applications:
BMP hydraulic motors are widely applied in Agriculture machinery and Light Industry.
1. Agriculture machinery: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.
2. Light industry: winding machines, textile machines, printing presses, operating with a washing machine.
Shijiazhuang HanJiu technology co., LTD., is specialized in the production of BM series cycloid hydraulic motor, the BZZ redirector enterprise, my factory has dozens of high-quality, professional engineering and technical personnel, and more than in 2010, has introduced the most advanced production equipment, is in northern China's largest factories, production of more than 300000 units a year.
My factory specializes in designing and producing the motors and steering gear of any type, from large to small, from low to high, and so on. And can replace dan foss, Eaton, M+S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery and other fields.
My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.
Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
Export manager: Emily Xiao Shijiazhuang Hanjiu Technology Co., ltd
