Dairy Farm Agricultural Livestock Feed Crusher Mixer Tractor Tmr Wagon Cattle Cow Animal Feed Mixer

Product Description

Dairy Farm Agricultural Livestock Feed Crusher Mixer Tractor TMR Wagon Cattle Cow Animal Feed Mixer
Products Introduction: Dairy farm Feed mixer (TMR) is suitable for a variety of pastures, can mix a variety of hay, silage feed and other fiber feed and mixed
feeding directly. The machine can reduce the labor intensity of artificial feeding, save feeding costs, improve economic efficiency.
The TMR feed mixer can increase the dry matter intake, increase the milk production, improve milk quality,
reduce the incidence of dairy cattle, increase feed utilization, save feed costs, and provide labor productivity.
Specification of the horizontal Feed Mixer

Model	9TMRW3	9TMRW-5	9TMRW-9	9TMRW-12
Motor Power(kw)	11	15	22	30
Capacity(kg/h)	1000-1500kgs/h	2000-3000kgs/h	4000-5000kgs/h	6000-7000kgs/h
QTY of blades(PCS)	33	40	58	69
QTY of twisted dragon(PCS)	3	3	3	3
Bottom plate thickness	5mm	6mm	8mm	10mm
Side plate thickness	4mm	5mm	6mm	6mm
Reducer	Jiangsu JZQ400	Jiangsu Guomao R137	Jiangsu Guomao R147	Jiangsu Guomao R149
Dimension(mm)	3600*1700*1900	3900*1800*2100	4600*2000*2500	5300*2200*2600
Weight(kg)	1700	2300	3200	4100

Vertical Feed Mixer

Model	LBL-5	LBL-9	LBL-12	LBL-16
Productivity (t/h)	2-3	4-5	6-7	8-10
Power (kw)	15	22	30	22+22
Mixing Shaft	1pc major mixing shaft	1pc major mixing shaft	1pc major mixing shaft	2pc major mixing shaft
Blade Type	Large serrated knife
QTY of Blade (pcs)	5	8	8	16
Weighing System	4 sensors, 1 display
Bottom Plate Thickness (mm)	14	16	16	18
Side Plate Thickness (mm)	5	8	8	8
Dimension (m)	3.1*1.9*2.1	3.9*2.3*2.5	4.6*2.4*2.6	5.8*2.5*2.6
Weight (kg)	1900	2800	3600	5000

Tricycle Spreader Mixer

Model	9SL-2	9SL-3
Battery	5PCS,60V	6PCS,72V
Structure Type	electric tricycle	electric tricycle
Feeding method	Spiral auger	Spiral auger
Sprinkling method	Belt	Belt
Size	3100*1200*1800mm	3600*1400*2000mm
Weight	1100kg	1500kg

Finally products of feed mixer
It can be used for chopping and mixing of all kinds of forage grasses,crop stalks and silage feedstuffs and mixing them with fine feedstuffs.
According to the design structure points,a fixed feed mixer and self-propelled feed mixer.
More pictures of TMR

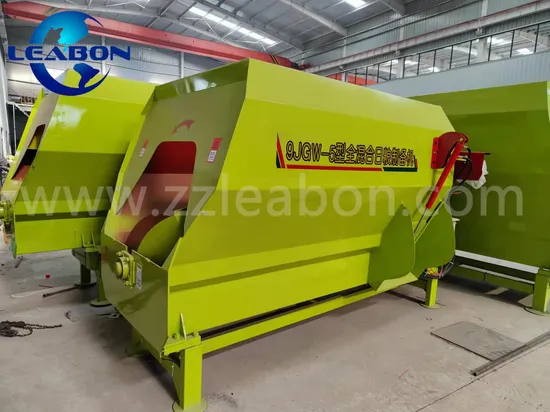

1). Horizontal Type TMR Silage Feed Mixer:2). Verticl TMR Feed Mixer:

Farm Complete Product Line for Cattle/Cow Feed:
Related Products
Shredder&TMR
Silage Baler&Wrapper
Animal Feed Pellet Machine
Feed Back
Our company
FAQ
Q:I know very little about this machine, How should I make a choose?
A:please tell us your specific requirement, we will offer the most appropriate model for you,you can contact us at any time.
Q: What if the spare parts are broken?
A:For each machine,we will have several parts that can be replaced, have a three years warranty on the core parts.
Q:I don't know how to install and use it?
A:We will offer video and online instruction.
Q:Do you have a warranty?
A:Yes,we have one year warranty for our products.
Q:If the machine has a little mistake when produce and can not solve,what should i do?
A:Please contact us immediately,by email,WeChat,or telephone,our worker will give you the solution.

Pls contact us if you are intersted in our Dairy Farm Agricultural Livestock Feed Crusher Mixer Tractor TMR Wagon Cattle Cow Animal Feed Mixer.
