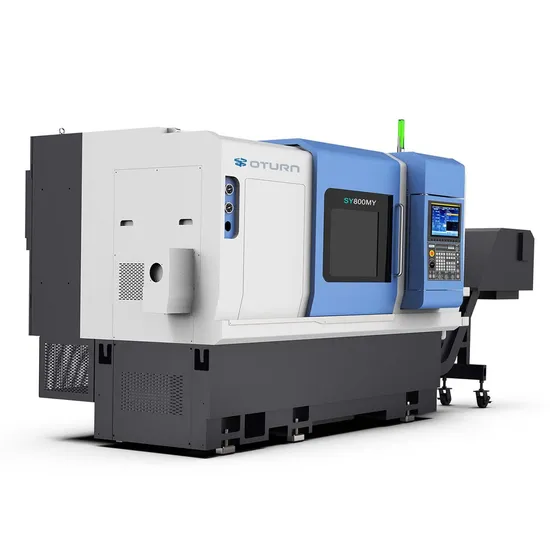

Slant CNC Metal Lathe Turning and Milling Machine with Siemens/Fanuc

Product Description

Product Description
The two-axis lathe offers simultaneous processing of both workpiece ends in one clamping, significantly streamlining manual operations, increasing output, and reducing processes. The secondary spindle ensures complete turning and seamless workpiece transfer during machining, thereby minimizing cycle times. Featuring a 30-degree inclined design, this machine excels in precision, robustness, and cutting stability. Constructed with high-strength HT300 cast iron using finite element analysis, the lathe bed's one-piece design ensures superior mechanical rigidity and long-term accuracy. This enhances processing stability and tool life, with stress relief treatment further boosting accuracy stability. The machine boasts a high-strength roller linear rail design and a screw pre-tension transmission system, amplifying rigidity performance. Its sleek and sophisticated appearance aligns with contemporary trends.
Main features of this machine tool:
1. Employs a direct drive synchronous electric spindle device featuring a magnetic ring incremental encoder (sine and cosine) with a positioning accuracy of 20 arc seconds and a C-axis indexing accuracy of 40 arc seconds. This setup effectively eliminates spindle vibration with a nose deflection accuracy within 0.002MM, enhancing workpiece surface finish. The rear-mounted rotor allows for quicker installation and maintenance, while the spindle motor's cooling system suppresses thermal displacement, ensuring a constant spindle temperature. Undergoing rigorous dynamic balance testing, the spindle system retains excellent accuracy, rigidity, and efficiency. It is adept at both finishing and rough machining, and heavy cutting, ideal for mass production of complex, high-smoothness products.
2. Features a high-rigidity integrated design servo power turret, supporting rapid and precise tool changing. Coupled with high-speed power axis milling, it provides outstanding turning and milling processing capabilities. Equipped with a high-rigidity BMT interface for the tool holder and driven by a servo spindle motor, the power transmission shaft ensures optimal performance.
3. Equipped with roller linear guides and precision-ground ball screws, this machine guarantees superior accuracy and durability. Each axis employs a direct transfer structure and a double-anchor pre-relay method, minimizing thermal displacement and greatly improving processing accuracy. High-rigidity, large-sized, heavy-duty linear slide rails maintain accuracy under impact, ensuring smooth, low-noise displacement and extending service life.
4. Offers a comprehensive hydraulic and lubrication system, featuring high-quality hydraulic pumps, valves, and other components, significantly reducing failure rates. The design of these systems prioritizes simplicity and reliability.
5. Integrates a Taiwan rotary chuck cylinder and an optional automatic chip removal device, significantly reducing operator labor intensity and facilitating safe, efficient production. These functional components are programmable and controllable, with various functions designed and installed according to user-specific requirements, including special fixtures.
Product Parameters

Name	Unit	SY800MY/E
Max. swing diameter over bed	mm	Φ800
Max. processing diameter	mm	Φ450
Max. processing diameter on the tool holder	mm	Φ450
Max. processing length	mm	690
Spindle nose	type	A2-6
Max. spindle speed	rpm	4300
Oil cylinde/chuck	lnch	8″
Spindle bore diameter	mm	Φ66
Bar diameter	mm	Φ52
Spindle motor power	kw	18/22kw
Spindle torque	N.m	103-227
X/Z/Y travel	mm	280/780/100(±50)
X/Z/Y axis linear guide specification	spes	45/45/35 roller
X/Z axis screw specification	mm	4012
X/Z/Y motor power	Kw	2.9/2.9/1.8
X/Z positioning accuracy	mm	±0.005
X/Z repeatability	mm	±0.003
X/Z axis moving fast	m/min	24/24
Power turret type	mm/pcs	BMT55-12T
Power turret power	Kw	5.0/47.7
Max. speed of power tool holder	rpm	5000
Outer diameter tool holder specification	mm	25X25
Inner diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.2
Programmable hydraulic tailstock	/	Programmable
Max. stroke of tailstock	Mm	530
Sleeve diameter	mm	Φ100
Sleeve travel	mm	100
Tailstock sleeve taper hole	type	Mohs 5#
Machine size	mm	3500*2110*2100
Machine weight	kg	6800
Cutting fluid tank volume	L	250
Cooling water pump power	w	750
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50
