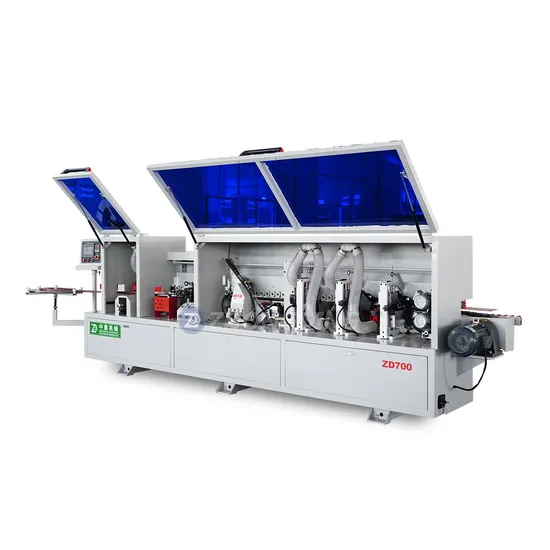

Hot Sales Zd700 Woodworking Panel MDF/PVC/Wood Edge Banding Machine
| US$5,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZD700
Type
Linear Edge Banding Machine
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
10-23m/Min
Certification
CE, ISO
Panel Thinkness
10-60mm
Min.length panel
100mm
Min.width panel
50mm
Manufacturing Principles
Glue Tank Overhead
Customized
Customized
Heating Power
1.8kw
Feeding Motor Power
2.2kw
Glue Spreading Motor Power
0.75kw
End Trimming Motor Power
0.5kw*2
Rough Trimming Motor Power
0.75kw*2
Fine Trimming Motor Power
0.75kw*2
Polishing Motor Power
0.37kw*2
Air Pressure
0.8MPa
Overall Dimension
4900*850*1520mm
N.W
2000kgs
Transport Package
Wooden Case
Specification
8CBM
Trademark
QDZD
Origin
Qingdao
HS Code
84659400
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
60.00cm * 60.00cm * 60.00cm
Package Gross Weight
60.000kg
Product Description
Hot Sales ZD700 Woodworking Panel MDF/PVC/Wood Edge Banding MachineProduct Parameters
| Thickness of banding | 0.4-3mm |
| Width of banding | 10-60mm |
| Thickness of workpiece | 10-60mm |
| Heating power | 1.5kw |
| Feeding motor power | 2.2kw |
| Glue post motor | 0.37kw |
| End trimming motor | 0.55*2 kw |
| Fine trimming motor | 0.75*2 kw |
| Polishing motor | 0.18*2 kw |
| Feeding speed | 13m/min |
| Air pressure | 0.7Mpa |
| Workpiece length | >=100mm |
| N.W. | 1500kg |
| Overall dimension | 4800*900*1600mm |
Feature:
1. The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
2. End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
3. Rough/fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
4. Scraping unit is for a perfect finishing of the applied edge.
5. The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.
Detailed Photos
Certifications
Company Profile
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
